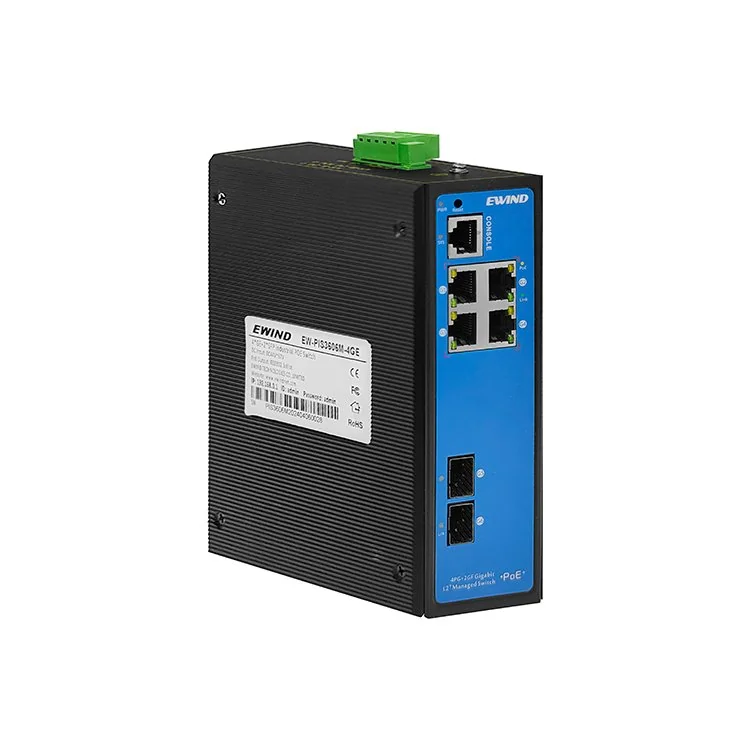

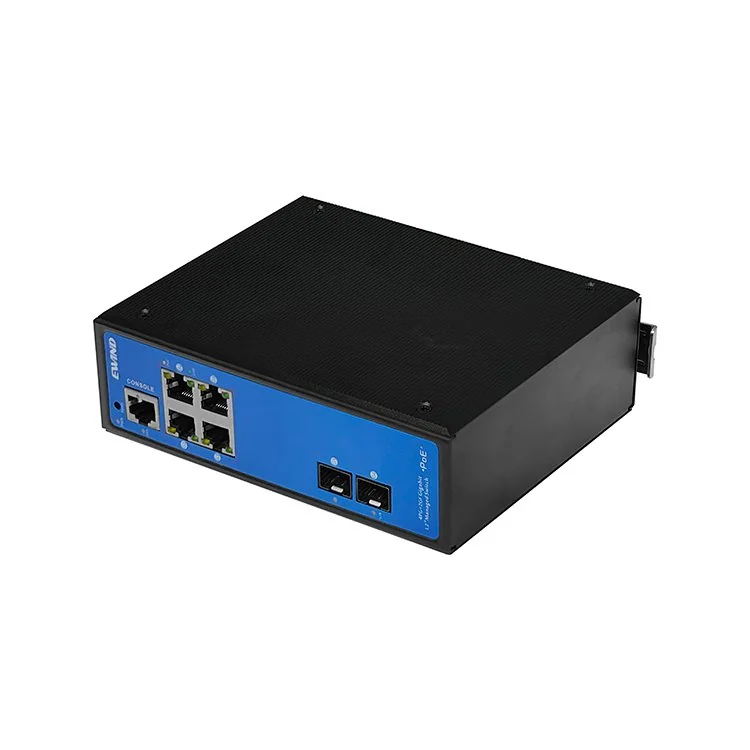

Model: EW-PIS3606M-4GE

6-Port Gigabit L2+ Managed Industrial PoE Switch with 2 SFP Uplinks

4 × 10/100/1000Mbps IEEE 802.3af/at PoE ports · up to 30W
2 × 100/1000Mbps SFP fiber uplinks · RS232 console
12Gbps non-blocking switching · 250W input · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

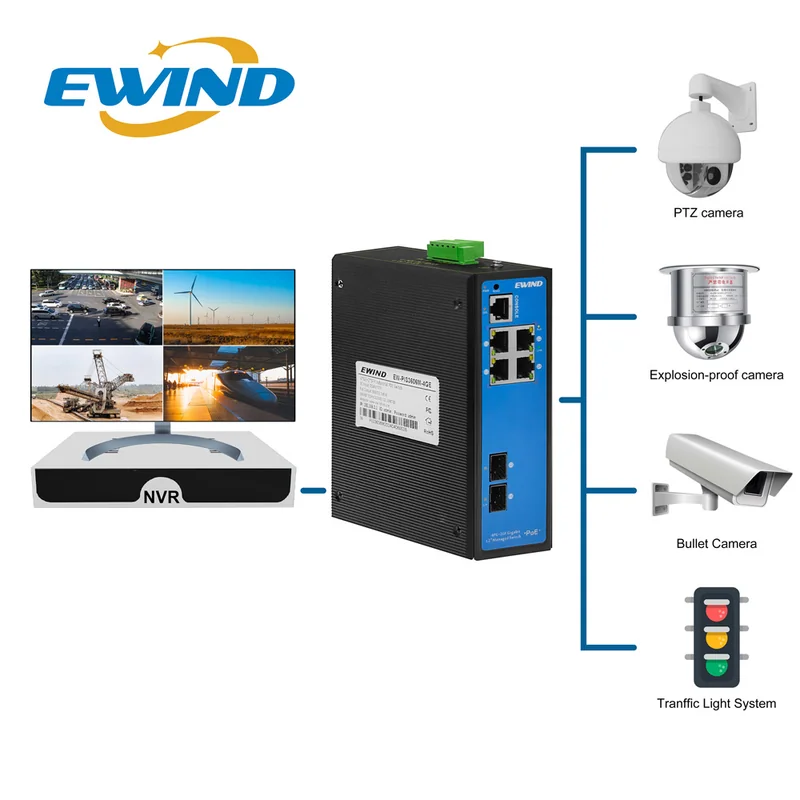

EW-PIS3606M-4GE combines four Gigabit PoE ports and two 100/1000Mbps SFP uplinks in a compact managed industrial enclosure. L2+ routing and security, ERPS ring recovery, PoE scheduling, redundant 48–57VDC input and IP40 rail installation support small industrial networks.

Managed PoE outputs

Configure PoE limits, AF/AT state, priority, delayed startup, schedules and live port status.

Two fiber uplinks

Two Gigabit SFP slots support single- or multimode modules for industrial optical links.

Compact industrial resilience

Fanless operation, ERPS/RSTP, ACLs, authentication and IP40 protection support harsh edge sites.

Product technical specifications
Specification	Details
Model	EW-PIS3606M-4GE
PoE ports	4 × 10/100/1000BASE-T; IEEE 802.3af/at; up to 30W per port
Fiber uplinks	2 × 100/1000Mbps SFP fiber slots
Management interfaces	1 × RS232 console; HTTPS web, SSH/Telnet CLI and SNMP v1/v2c/v3

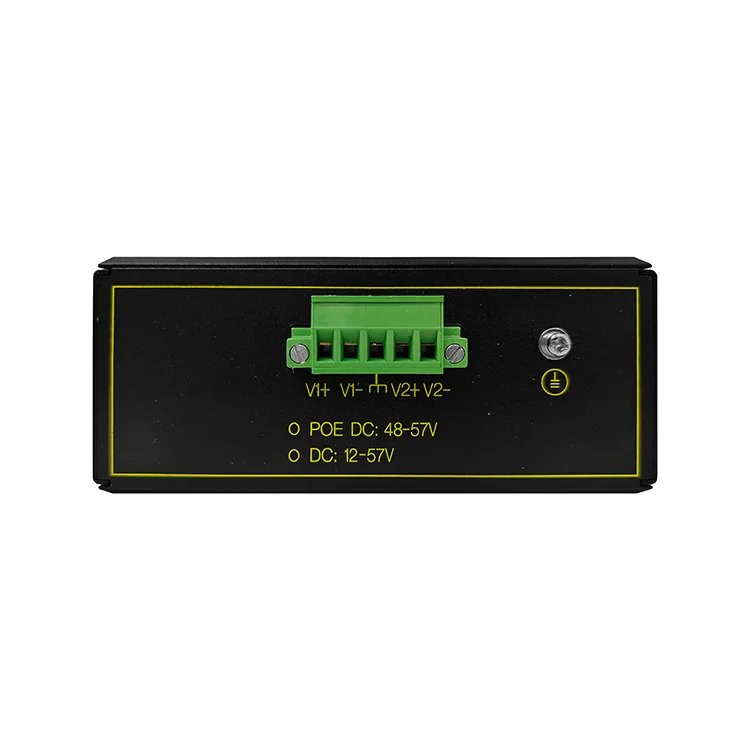

Power input / budget	Redundant 5-pin terminals; DC 48–57V; 250W input rating
Switching / forwarding	12Gbps non-blocking / 8.93Mpps
MAC / buffer	8K / 4M
Management features	L2+ IPv4/IPv6, static routing, 4K VLAN, LACP, STP/RSTP/MSTP, ERPS, IGMP/MLD and ACL

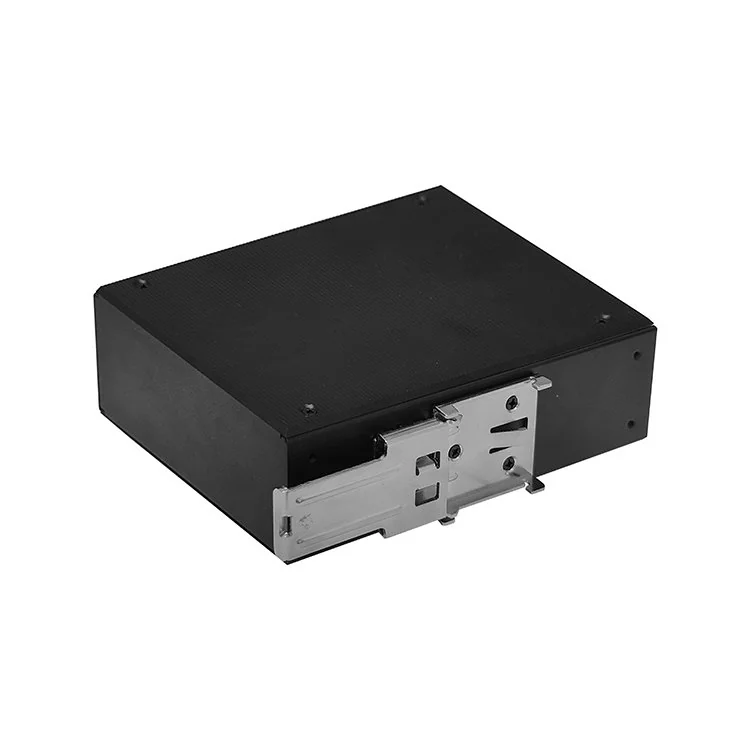

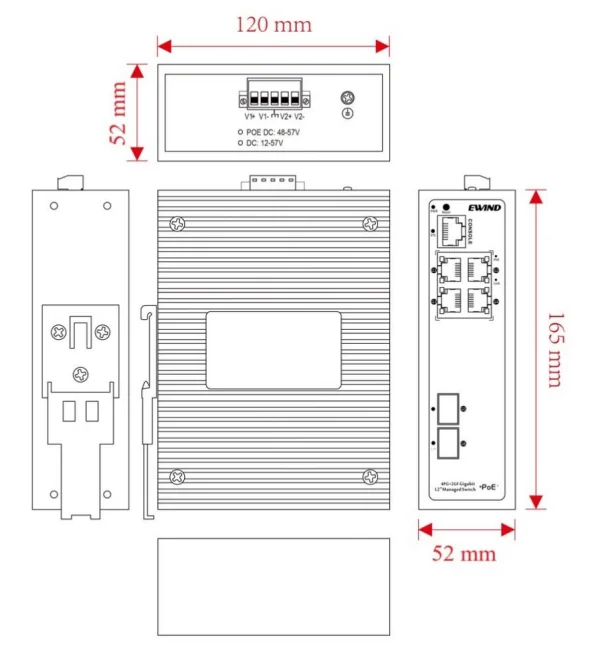

Dimensions / installation	165 × 120 × 52 mm; rail-type installation
Protection / environment	IP40; −40 to +80°C operating; −40 to +85°C storage; 5–90% RH
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE controls

Configure total power limits, per-port allocation, AF/AT enablement, priority, live status, delayed startup and schedules. Verify the external DC budget before enabling all endpoints.

Layer 2 and routing

Port/protocol/voice/MAC VLANs, QinQ, LACP, STP/RSTP/MSTP, static/default routes, IGMP/MLD snooping, mirroring and eight QoS queues per port are listed in the source.

Industrial resilience and security

G.8032 ERPS supports up to 255 loops and less than 20ms self-healing in the source. ACLs, 802.1X, AAA/RADIUS, SSH/SSL, DHCP snooping and IP/MAC/VLAN/port binding add access controls.

Fiber planning

The two SFP slots support 100/1000Mbps modules. Select compatible single-mode or multimode modules and fiber reach for the site.
