48V output
Supply a compatible endpoint with up to 24W through the powered RJ45 port.

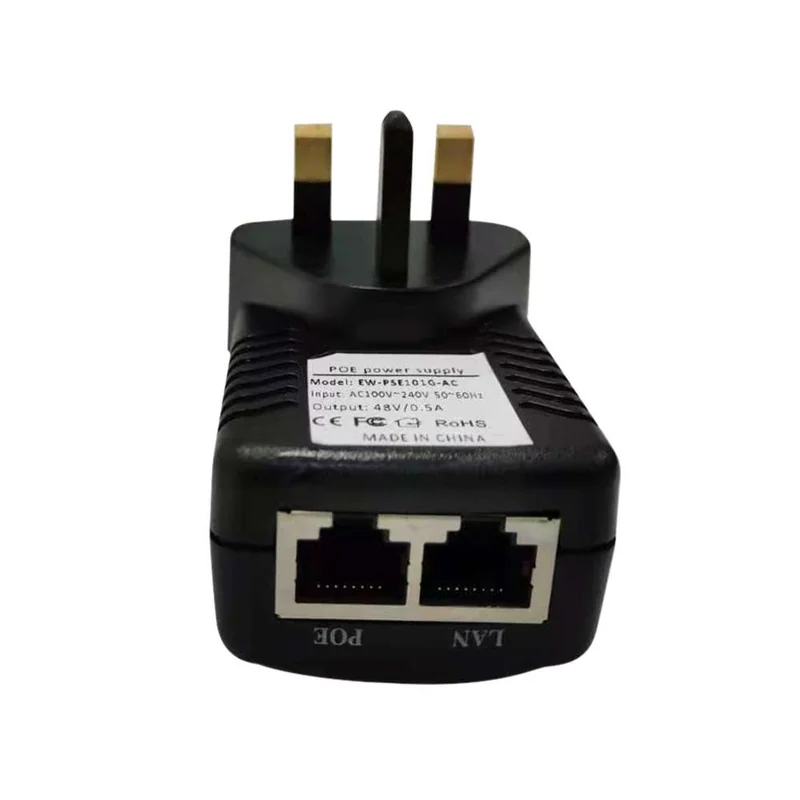

Model: EW-PSE101F-AC
24W Fast Ethernet AC PoE Injector with 48V Output
- 48V, 0.5A output; 24W
- 10/100Mbps Ethernet link
- 100–240V AC input
- Power pairs: 4/5 positive, 7/8 negative
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101F-AC combines a 10/100Mbps Ethernet connection with a 48V, 0.5A power output for a compatible endpoint. It accepts 100–240V AC and uses pins 4/5 and 7/8 for power. Match the endpoint’s voltage and pinout requirements when selecting this injector.
Fast Ethernet connection
Separate RJ45 data input and powered output carry a 10/100Mbps link.
Fanless housing
Desktop or wall installation in an 80 × 46 × 55mm enclosure.
| Specification | Details |
|---|---|
| RJ45 ports | 1 × data input; 1 × powered output |
| Data rate | 10/100Mbps |
| AC input | 100–240V, 50–60Hz |
| Output | 48V, 0.5A; 24W |
| Power pairs | 4/5 positive; 7/8 negative |
| IEEE PoE standard | Not specified in the datasheet |
| Dimensions (L × W × H) | 80 × 46 × 55mm |
| Weight | 0.154kg |
| Operating temperature | −20 to +55°C |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE101F-AC 24W injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
