24 independent channels
One LAN input and one powered output per connection.
Model: EW-PSE324CG
24-Port Gigabit DC PoE Injector
- 24 LAN inputs and 24 powered RJ45 outputs
- 10/100/1000Mbps data connections
- 12–57V DC input; 1A limit per channel
- Fanless 440mm-wide enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE324CG adds passive DC power to 24 independent Gigabit Ethernet connections. Each LAN input pairs with a powered RJ45 output, using an external 12–57V DC source and selectable Mode B or Mode A pin assignment.
External DC power
Passive 12–57V output follows the connected supply.
Rack-width enclosure
440mm-wide fanless metal housing for centralized cabling.
PoE access
Designed for cameras and other low-voltage network devices.
| Specification | Details |
|---|---|
| Data ports | 24 × 10/100/1000Mbps RJ45 LAN inputs |
| Powered ports | 24 × 10/100/1000Mbps RJ45 PoE outputs |
| DC input | 12–57V DC; 2.1mm connector |
| DC output | Follows input voltage; 1A limit per channel |
| Default pin assignment | Mode B: pins 4/5 (+), 7/8 (−) |
| Optional pin assignment | Mode A: pins 1/2 (+), 3/6 (−) |
| Dimensions (W × D × H) | 440 × 100 × 45mm |
| Weight | 1kg, excluding power supply |
| Operating temperature | −20°C to +55°C |
| PoE standard | IEEE 802.3af/at |
| Warranty | 1 year |

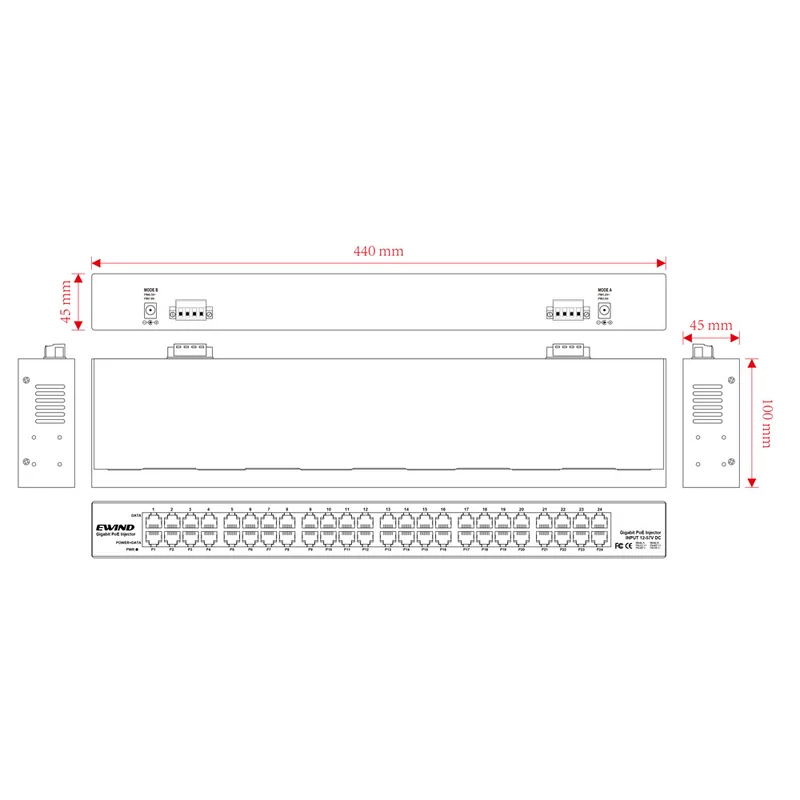

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE324CG 24-port Gigabit DC PoE injector; power supply excluded | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

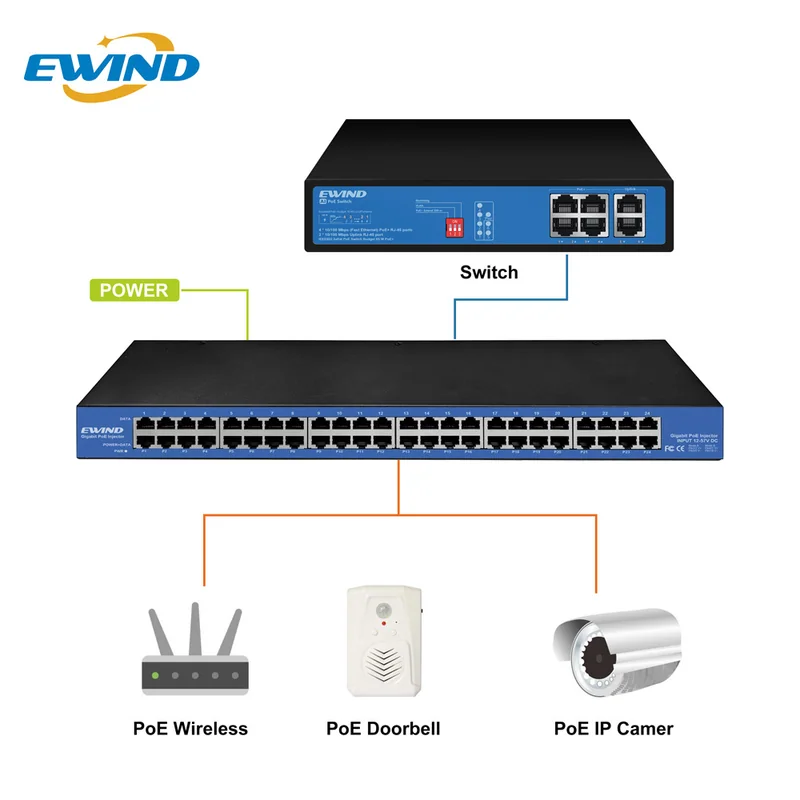

Applications
Multi-channel PoE distribution for IP cameras, wireless access points and low-voltage network devices.
