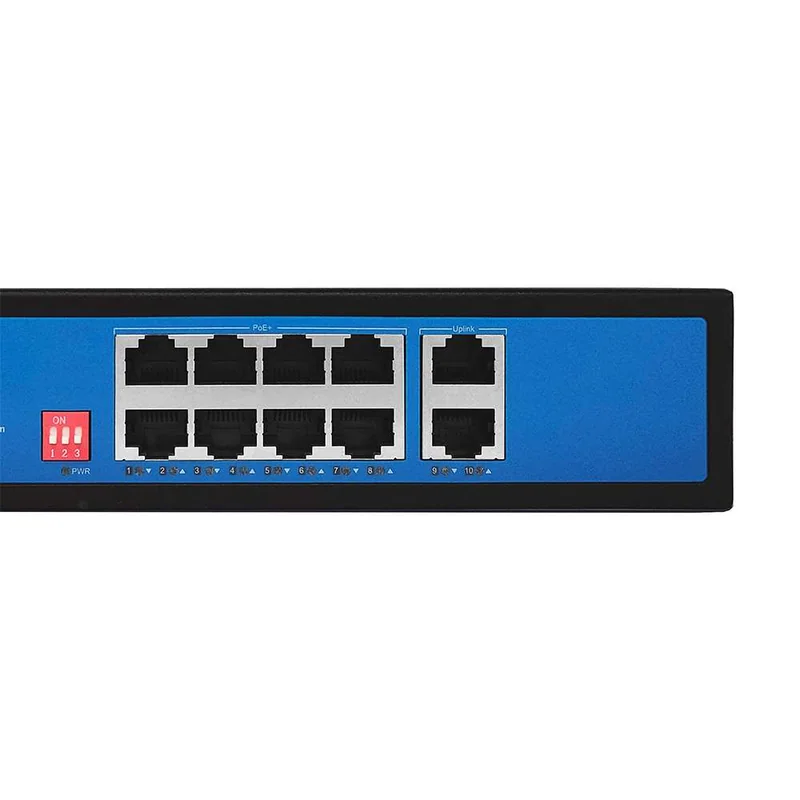

Eight Gigabit PoE ports
Eight auto-sensing Gigabit copper ports power cameras, APs and other edge devices.
Model: EW-S1910CG-AP

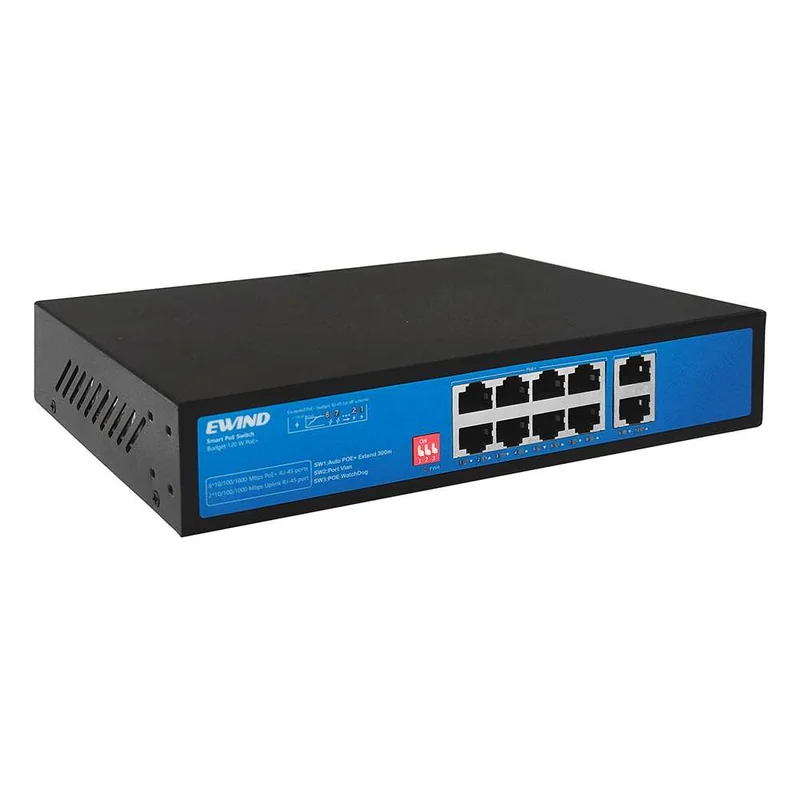

10-Port Gigabit PoE Switch with Built-in Power Supply
- 8 × 10/100/1000Base-T PoE ports and 2 × Gigabit RJ45 uplink ports
- 30W maximum and 15.4W typical PoE per port with 120W total budget
- AI Extend up to 300m, VLAN isolation and AI PoE watchdog self-healing
- 20Gbps switching capacity and 14.88Mpps forwarding rate
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1910CG-AP is a 10-port Gigabit PoE switch with eight PoE ports, two Gigabit uplinks, 120W built-in power and AI watchdog features for small enterprise security networks.
Dual Gigabit uplinks
Two 10/100/1000Mbps RJ45 uplink ports connect the switch to the network core or NVR.

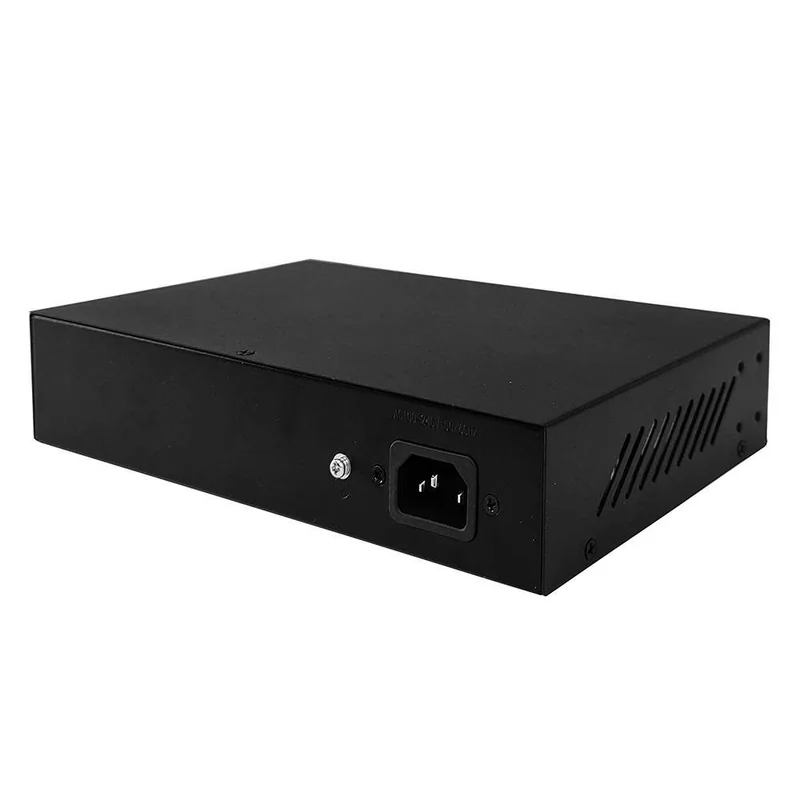

120W built-in power
The integrated 100–240VAC supply supports up to 30W per PoE port and 120W total.
AI protection
VLAN isolation and AI PoE watchdog help isolate faults and recover unresponsive cameras.
| Specification | Details |
|---|---|
| Fixed ports | 8 × 10/100/1000Base-T/TX PoE ports and 2 × 10/100/1000Base-T/TX RJ45 uplink ports |
| PoE standard | Ports 1–8 support PoE; 30W maximum and 15.4W typical per port |
| Features | Port priority, AI Extend 300m, VLAN and port isolation, AI PoE watchdog self-healing |
| Switching performance | Store-and-forward; 20Gbps switching capacity and 14.88Mpps forwarding rate |
| Memory | 4K MAC table and 4M buffer memory |
| Copper reach | Cat5 up to 300m at 10Mbps; Cat5 or later up to 100m at 100Mbps and Gigabit |
| Power | Built-in 100–240VAC 50–60Hz adapter; 120W total; standby under 4W and full load under 120W |
| Dimensions and weight | 220 × 145 × 45mm; net under 1kg and gross under 1.2kg |
| Installation | Desktop type or wall mounted |
| Environment | Operating −20℃ to +55℃; storage −40℃ to +75℃; operating humidity 5%–90% RH, non-condensing |
| Protection | IP30 with industrial ESD and surge protection |
| Warranty | 3 years, lifetime maintenance |

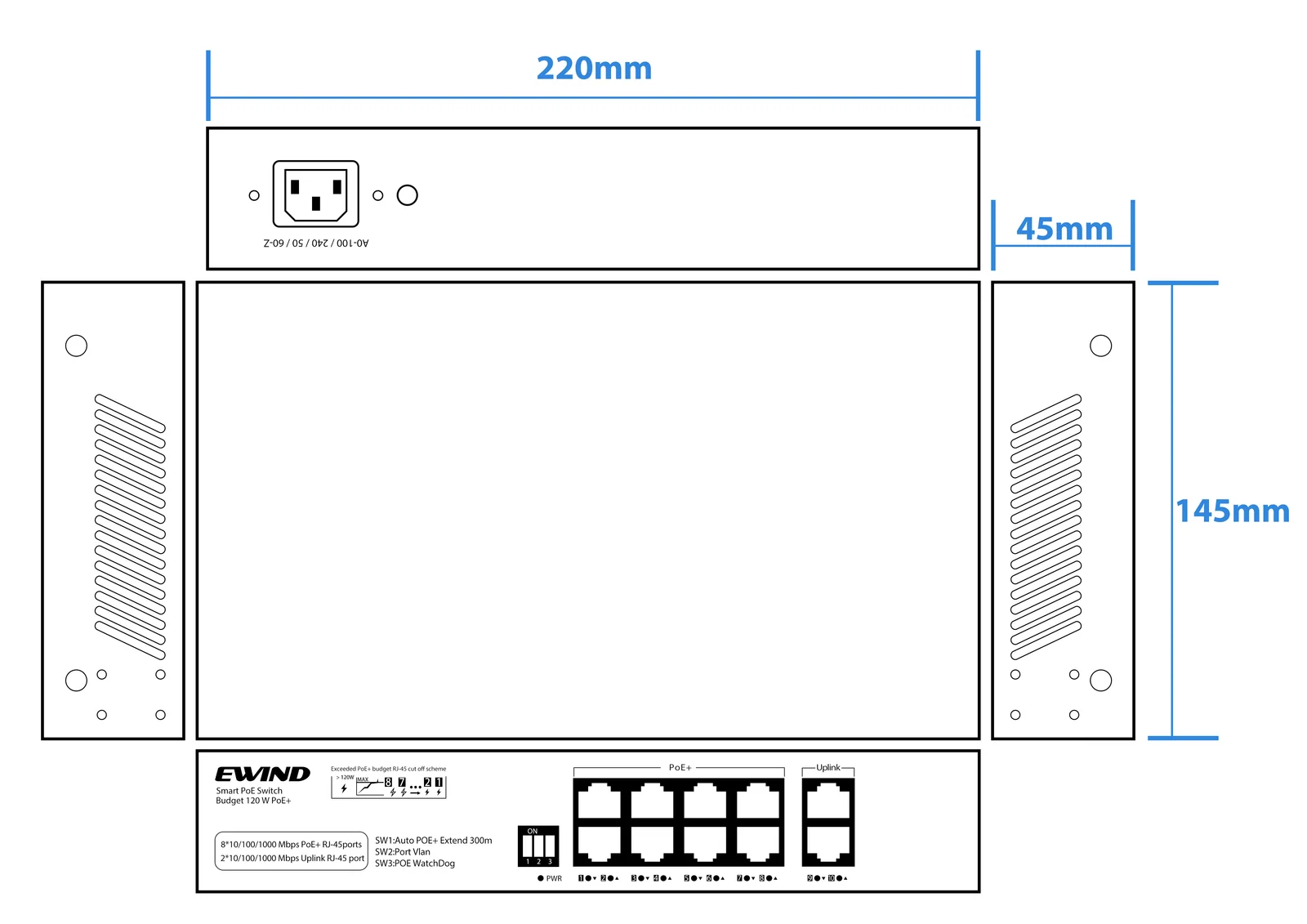

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Ports Gigabit PoE Switch with Built-in Power Supply (EW-S1910CG-AP) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |

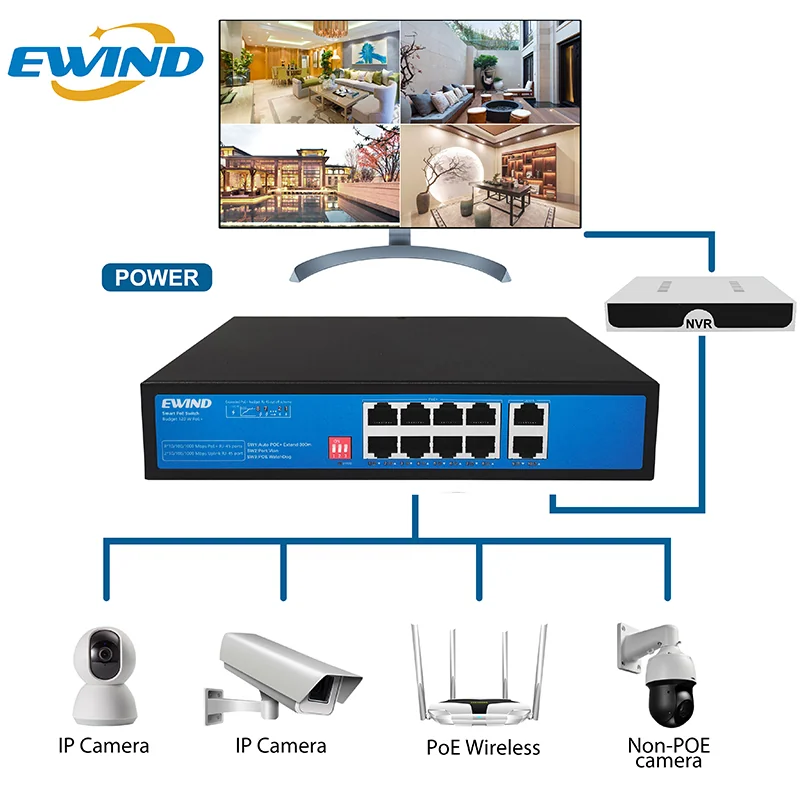

Applications
Gigabit PoE connectivity for cameras, wireless access points, NVRs and small enterprise networks.
