Model: EW-S1712CG-AP

8-Port Gigabit Unmanaged PoE Switch with RJ45 and SFP Uplinks

8 × 10/100/1000Mbps PoE ports · up to 30W per port
2 × Gigabit RJ45 uplinks plus 2 × 100/1000Mbps SFP uplinks
120W built-in AC supply · 24Gbps switching · AI DIP modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

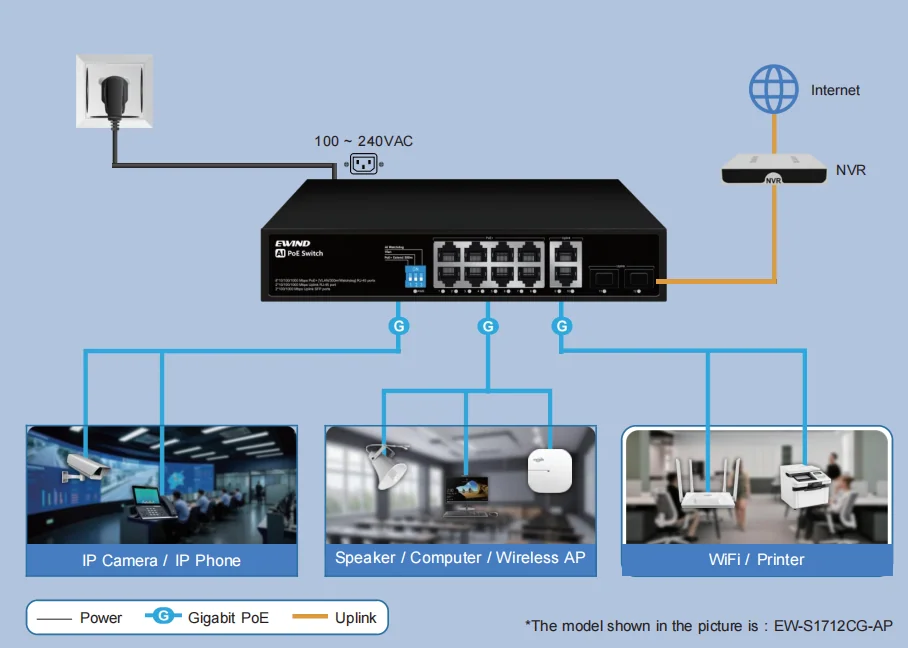

EW-S1712CG-AP combines eight Gigabit PoE ports with two Gigabit RJ45 uplinks and two 100/1000Mbps SFP fiber uplinks. The compact unmanaged platform adds 300m extend mode, per-port VLAN isolation and AI PoE watchdog recovery for surveillance, access and wireless deployments.

Eight Gigabit PoE outputs

Ports 1–8 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.

Copper and fiber uplinks

Two Gigabit RJ45 data uplinks and two 100/1000Mbps SFP slots provide flexible upstream connectivity.

Hardware recovery modes

DIP switches provide 300m extended reach, VLAN isolation and AI PoE watchdog recovery.

Product technical specifications
Specification	Details
Model	EW-S1712CG-AP
PoE ports	8 × 10/100/1000BASE-T PoE; ports 1–8
RJ45 uplinks	2 × 10/100/1000BASE-T RJ45 data ports
SFP uplinks	2 × 100/1000Mbps SFP fiber ports
PoE standard / port limit	IEEE 802.3af/at; 15.4W standard, up to 30W per port
Total power / supply	120W; built-in AC 100–240V, 50/60Hz
Management	Unmanaged; DIP-switch controls
Switching / forwarding	24Gbps / 17.86Mpps
MAC / buffer	2K / 2M
Dimensions / installation	195 × 130 × 40 mm; desktop or wall mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	1 year; lifetime maintenance
