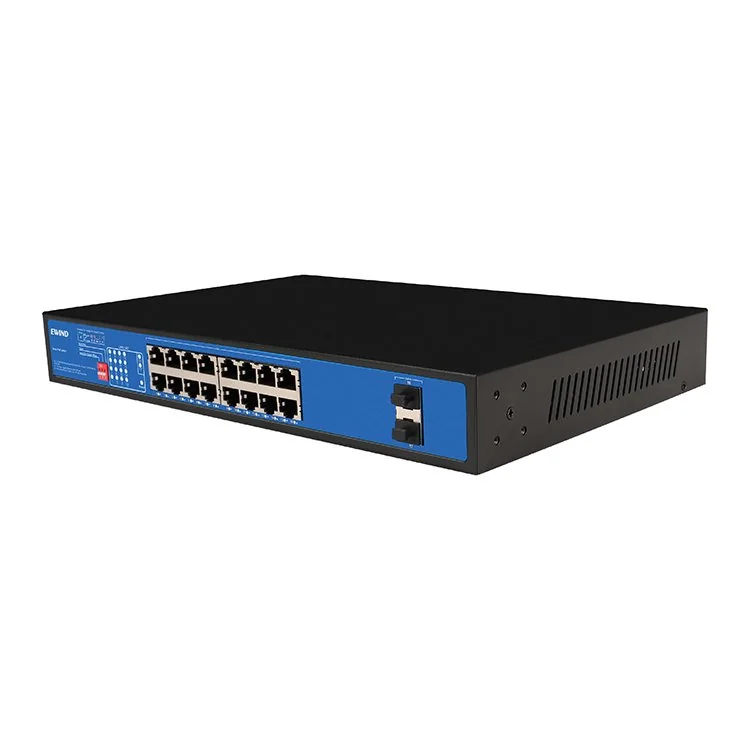

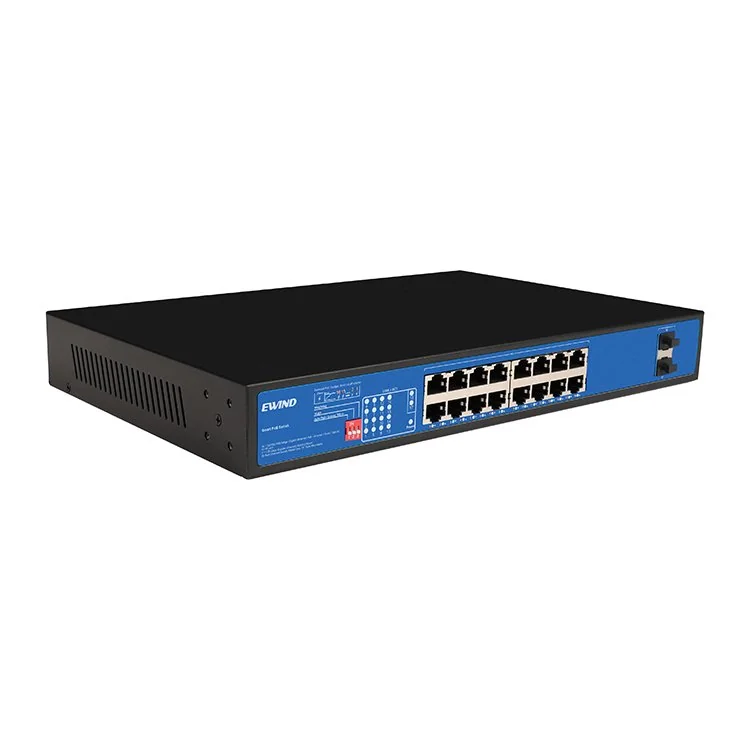

Model: EW-S1918CG-AP

16-Port Gigabit PoE Switch with 2 Gigabit SFP Uplinks

16 × 10/100/1000Mbps PoE ports · up to 30W per port
2 × 100/1000M SFP uplinks
300W internal AC supply · 52Gbps switching · fanless operation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

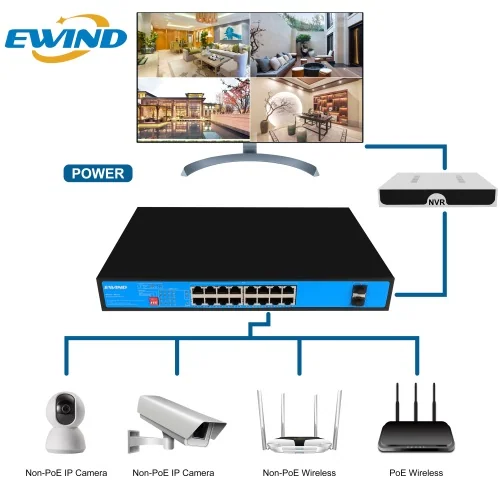

EW-S1918CG-AP provides sixteen Gigabit PoE ports and two Gigabit SFP uplinks in a fanless full-size enclosure. A 300W internal AC supply, extended-reach mode, port isolation and AI PoE watchdog support high-density surveillance and campus edge networks.

Sixteen PoE outputs

Ports 1–16 support IEEE 802.3af/at with up to 30W per port and a shared 300W budget.

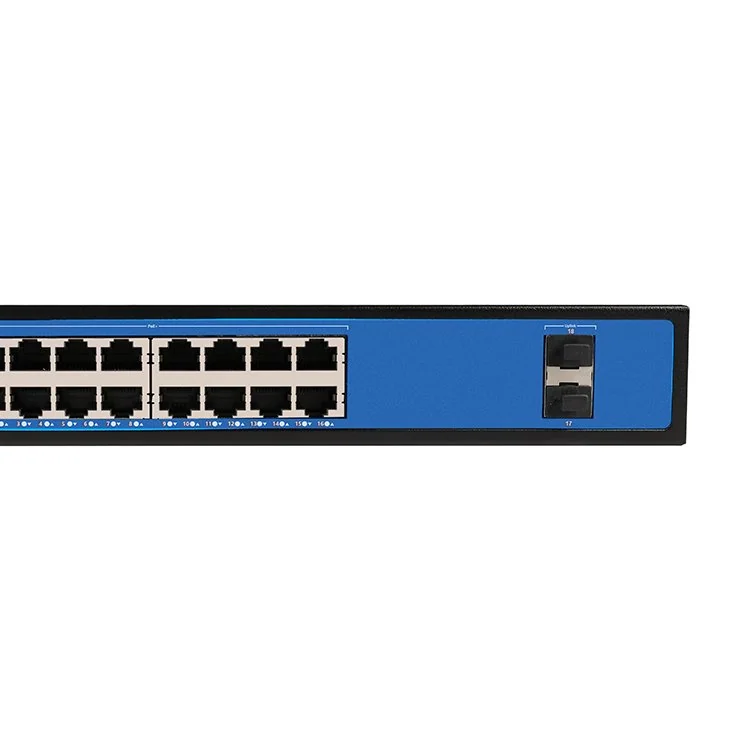

Gigabit SFP uplinks

Two SFP slots accept separately purchased single-mode or multimode modules for fiber backbone links.

Hardware recovery modes

DIP switches provide extended reach, isolation/VLAN and AI PoE watchdog recovery across ports 1–16.

Product technical specifications
Specification	Details
Model	EW-S1918CG-AP
PoE ports	16 × 10/100/1000BASE-T PoE; ports 1–16
Uplinks	2 × 100/1000BASE-X SFP data ports
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Total PoE budget / supply	300W; built-in AC 100–240V, 50/60Hz
Management	Unmanaged; DIP-switch extend, isolation/VLAN and AI PoE watchdog
Switching / forwarding	52Gbps non-blocking / 38.69Mpps
MAC / buffer	8K / 4M

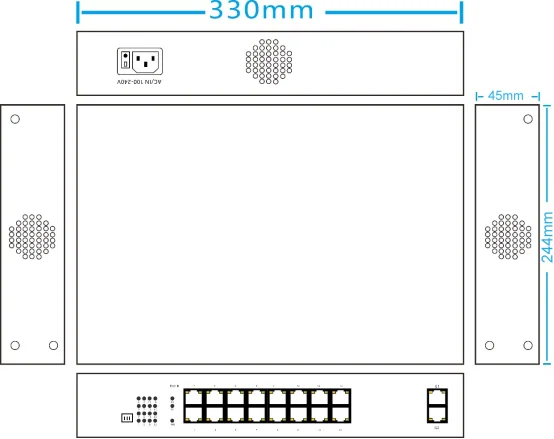

Dimensions / installation	330 × 220 × 44 mm; desktop, wall or 19-inch 1U cabinet mount
Protection / environment	IP30; −20 to +55°C; 5–90% RH, non-condensing
Warranty	3 years; lifetime maintenance
