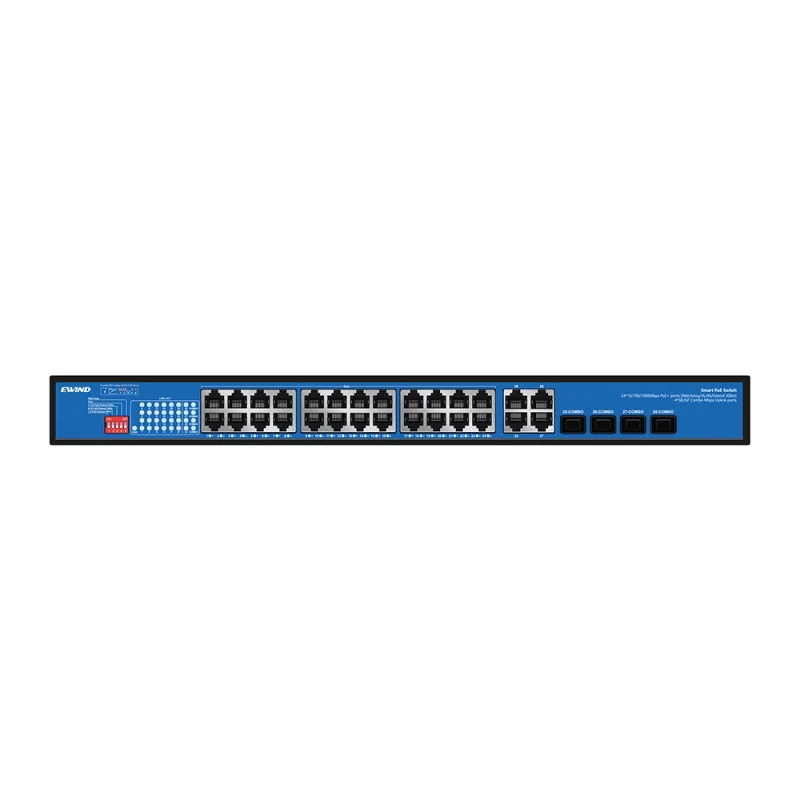

Model: EW-S1932CGU-AP

24-Port Gigabit PoE Switch with Four Combo Uplinks

24 Gigabit IEEE 802.3af/at PoE ports
4 Gigabit RJ45/SFP combo uplinks
400W power supply; up to 30W per PoE port
Independent extend, isolation and watchdog switches

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

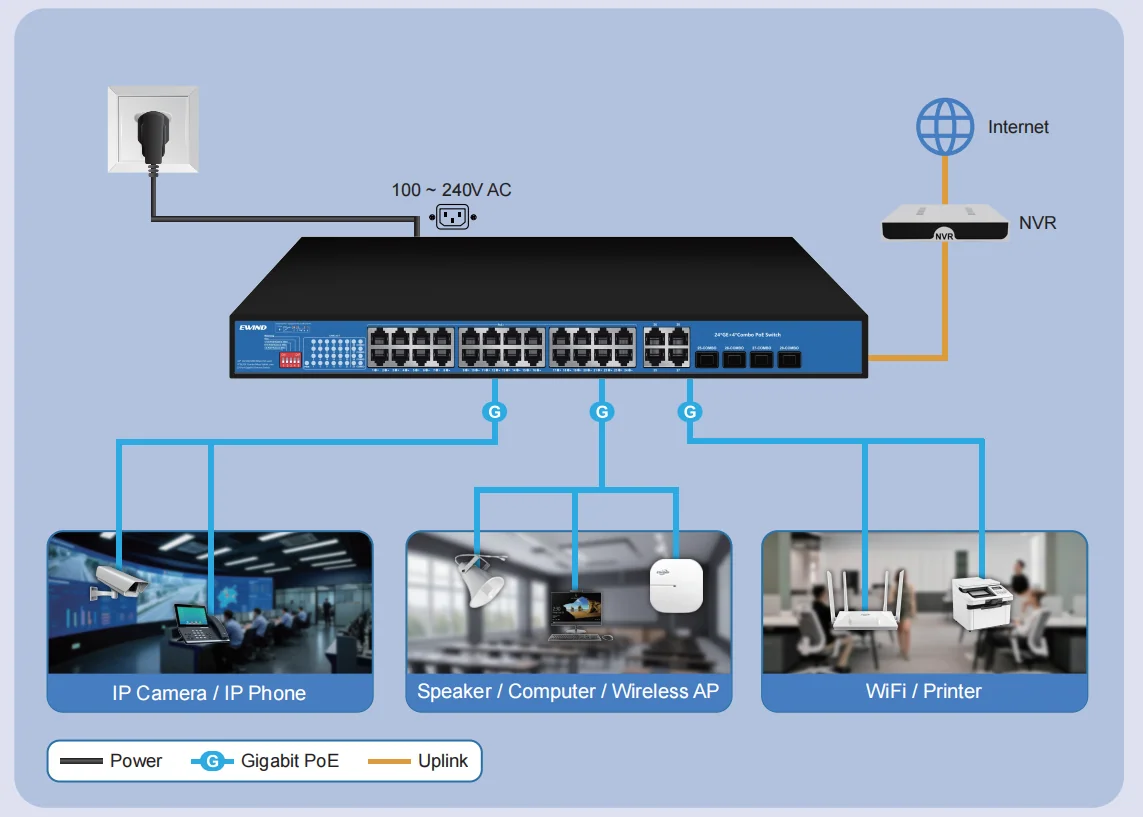

EW-S1932CGU-AP connects 24 Gigabit PoE endpoints with four Gigabit RJ45/SFP combo uplinks. Its 400W built-in power supply and independent DIP switches support grouped link extension, isolation and PoE watchdog operation without a power restart.

Flexible uplinks

Four shared RJ45/SFP ports support copper or fiber connections.

400W power supply

Shared power for 24 PoE ports with automatic device detection.

Grouped extension

Separate extend controls for ports 1–8, 9–16 and 17–24.

Simple operation

Unmanaged switching with DIP-switch maintenance functions.

Product technical specifications
Specification	Details
PoE access ports	24 × 10/100/1000Mbps RJ45
Uplinks	4 × Gigabit RJ45/SFP combo
PoE standard	IEEE 802.3af/at
Maximum power per port	30W

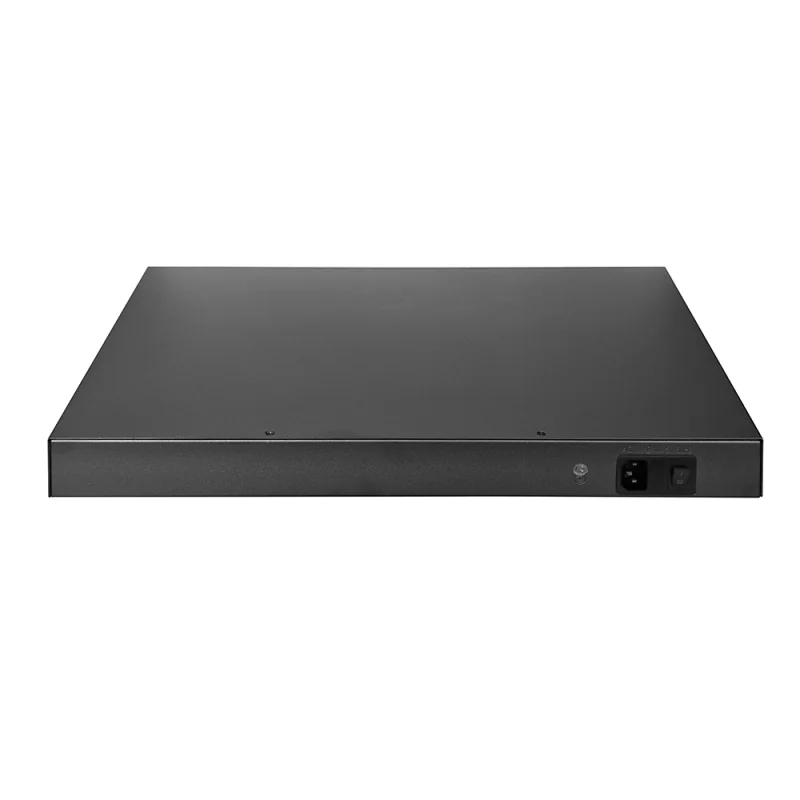

Power supply	Built-in 400W; 100–240V AC, 50/60Hz
Switching capacity	56Gbps
Forwarding rate	41.66Mpps
MAC address table	8K entries

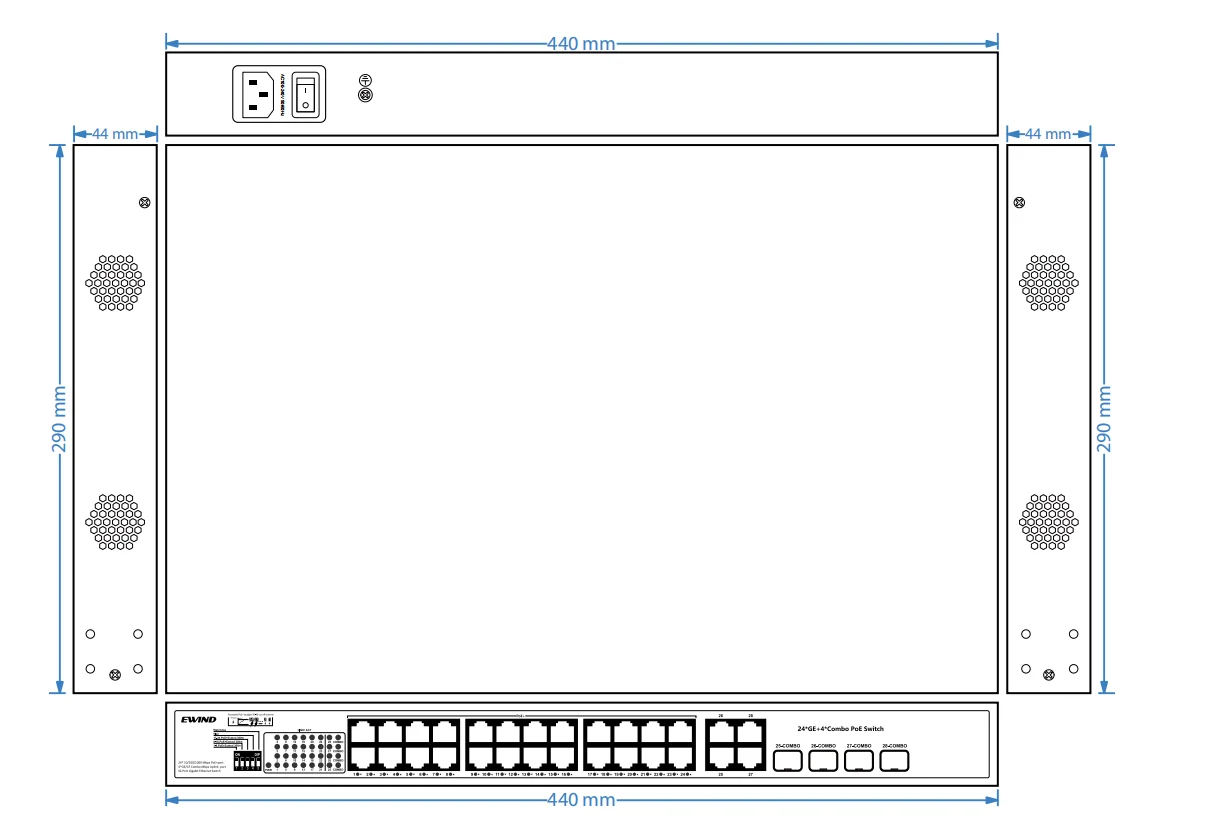

Dimensions (W × D × H)	440 × 290 × 44mm
Operating temperature	−20°C to +55°C
Installation / enclosure	Desktop or rack; IP30
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

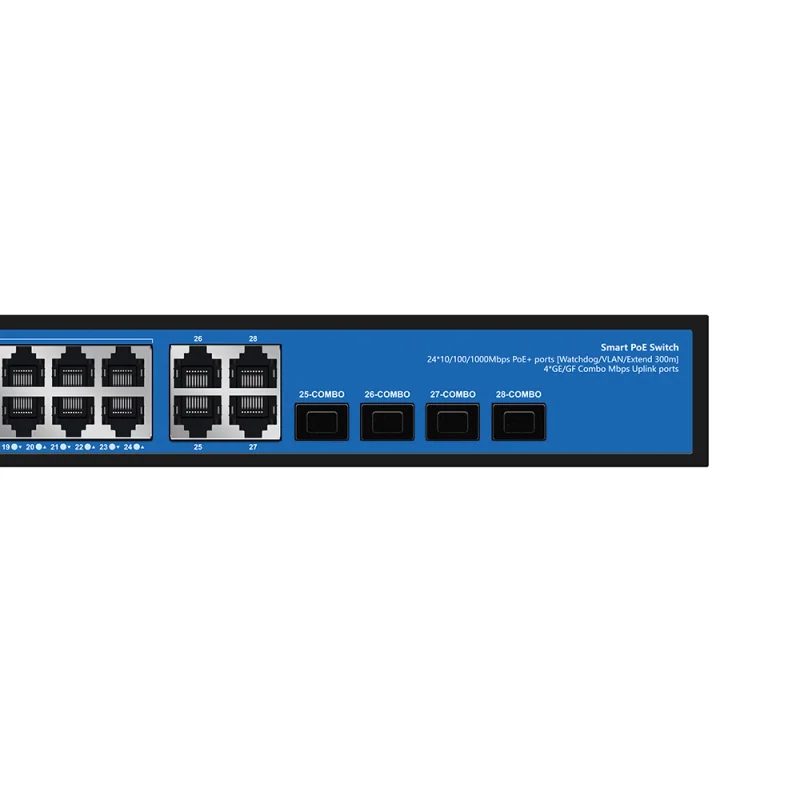

Combo uplinks

Each combo uplink uses either its copper connector or its SFP slot as one logical connection. The four uplinks are not eight simultaneously active ports. Optical modules are ordered separately.

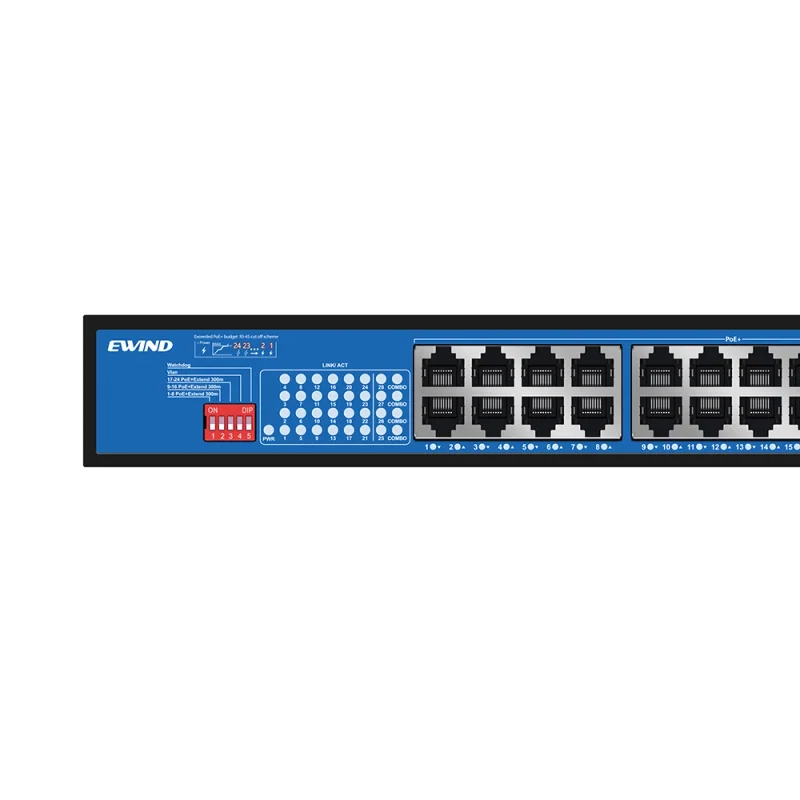

DIP-switch functions

Switches 1–3 enable up to 300m at 10Mbps for port groups 1–8, 9–16 and 17–24 respectively. V enables port isolation and D enables PoE watchdog. Other links retain normal rates within 100m; port priority is enabled by default.

PoE and forwarding

IEEE 802.3af/at on ports 1–24 with default pins 1/2 (+), 3/6 (−). Per-port power is constrained by the shared 400W supply. Store-and-forward switching and automatic speed negotiation with MDI/MDIX.

Environment and protection

Net weight <4kg. Operating humidity: 5–90%; storage: −40°C to +75°C, 5–95% RH, non-condensing. ESD ±8kV contact / ±15kV air. Surge: power ±4kV common mode / ±2kV differential mode; ports ±4kV.
