Model: EW-WiFi1200

2.4GHz and 5GHz 1200Mbps 802.11ac Wireless WiFi Repeater

Dual-band 1200Mbps: 867Mbps at 5GHz + 300Mbps at 2.4GHz
2 × 10/100M LAN ports · repeater, router and AP style use
802.11ac · WPS one-button setup · WPA/WPA2 security

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-WiFi1200 extends dual-band wireless coverage into homes and small offices with weak signal. Its 5GHz 867Mbps and 2.4GHz 300Mbps rates, two 10/100 LAN ports, WPS setup and WPA/WPA2 security provide a simple way to improve coverage and wired connectivity.

Dual-band coverage

Use the 5GHz band for higher-speed nearby clients and 2.4GHz for broader coverage through typical indoor obstacles.

Simple secure setup

WPS pairing and WPA/WPA2-PSK security support quick deployment without complex configuration.

Wired connectivity

Two 10/100M LAN ports connect nearby wired devices or provide a wired source for access-point style use.

Product technical specifications
Specification	Details
Model	EW-WiFi1200
Wireless standards	IEEE 802.11b/g/n and 802.11ac
Wireless rates	5GHz 11ac up to 867Mbps; 2.4GHz 11n up to 300Mbps; dynamic fallback for 11a/b/g
Frequency range	2.4GHz and 5.8GHz
Transmit power	<20dBm EIRP

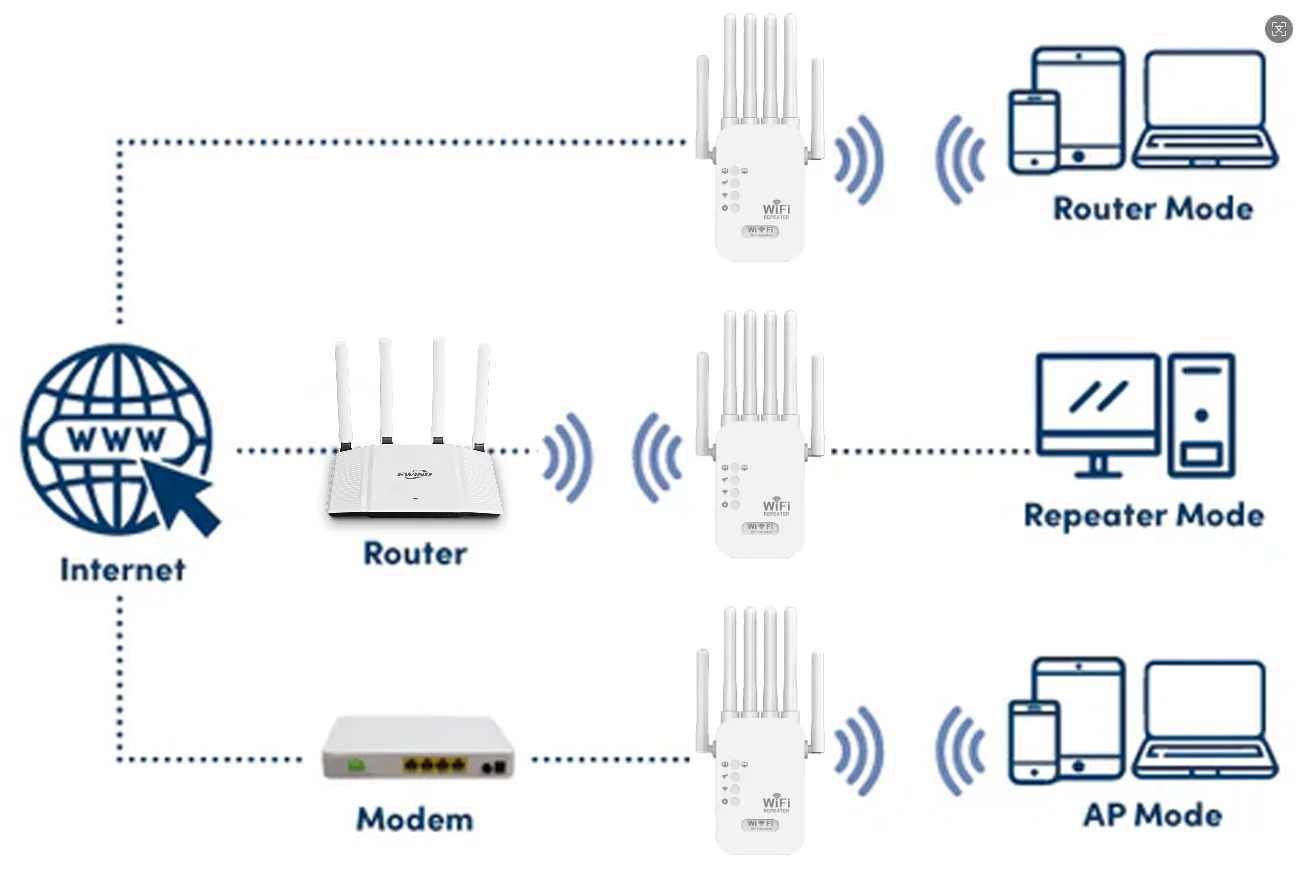

Modes / setup	Wireless repeater, router or AP style deployment; WPS one-button setup
Ethernet interface	2 × 10/100M LAN
Antenna / security	6 × 2dBi antennas; 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK TKIP/AES
Power supply	AC 100–240V input
Environment	0 to +40°C operating; −40 to +70°C storage; 10–90% RH operating
Warranty	As supplied with the product documentation
