Wi-Fi 6 · 3000Mbps
Dual-band 802.11ax radios deliver up to 574Mbps at 2.4GHz and 2402Mbps at 5GHz.
Model: EW-API210
Wi-Fi 6 2.4G & 5.8G 3000Mbps IP65 Outdoor Wireless AP
- 2.4GHz Wi-Fi 6 up to 574Mbps and 5GHz Wi-Fi 6 up to 2402Mbps
- 1 × 10/100/1000/2500Mbps WAN with 48V PoE and 1 × Gigabit LAN
- Up to 128 concurrent users with 100m LOS outdoor coverage
- IP65 enclosure with four external 4dBi omni-directional antennas
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-API210 is a Wi-Fi 6 outdoor access point with 3000Mbps dual-band throughput, IP65 protection, a 2.5Gbps PoE uplink and flexible wall or pole mounting for exposed wireless sites.
IP65 outdoor build
The sealed enclosure is designed for wind, rain, dust and sunlight in exposed sites.
2.5Gbps PoE uplink
A 10/100/1000/2500Mbps WAN accepts 48V PoE, with a separate Gigabit LAN port.
Flexible deployment

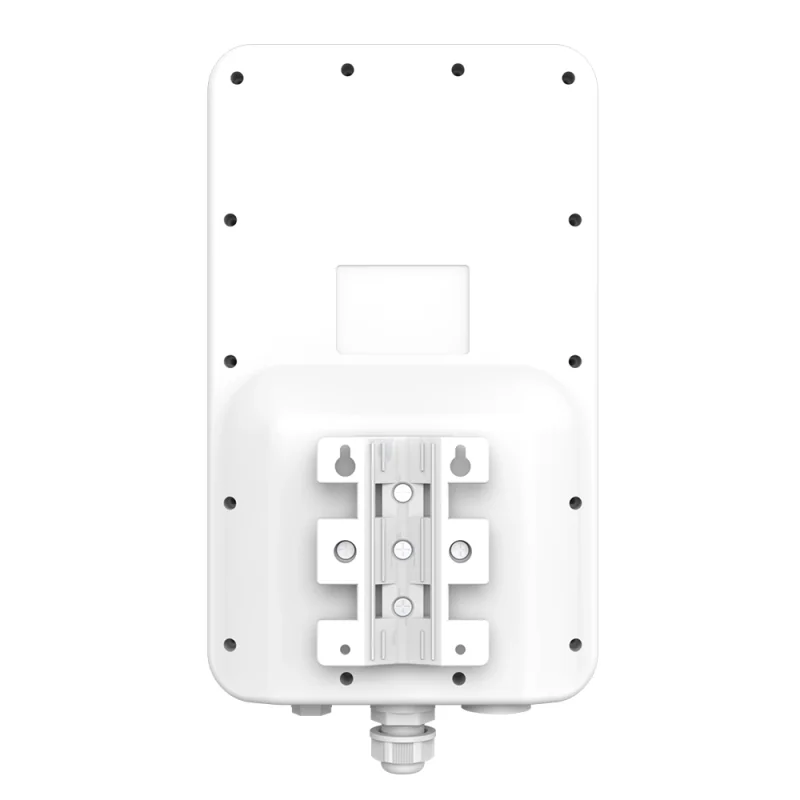

Four external 4dBi antennas and wall or pole mounting extend outdoor coverage.
| Specification | Details |
|---|---|
| Wireless standard | 2.4GHz 802.11b/g/n/ax 2T2R up to 574Mbps; 5GHz 802.11a/n/ac/ax 2T2R up to 2402Mbps |
| Frequency | 2.4GHz 2.4–2.484GHz; 5GHz 5.150–5.825GHz |

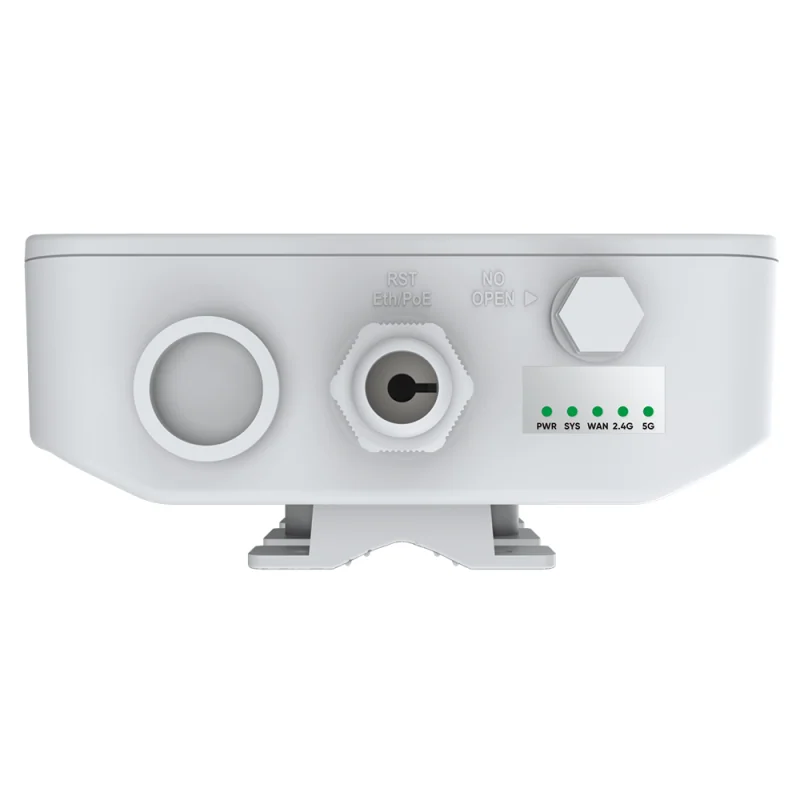

| Interfaces | 1 × 10/100/1000/2500Mbps WAN with 48V PoE; 1 × 10/100/1000Mbps LAN; reset button |
| Antennas | 4 × external 4dBi dual-band omni-directional antennas |
| Power | IEEE 802.3at PoE; maximum power consumption under 18W |
| Capacity and range | Up to 128 concurrent users; 100m LOS wireless coverage listed in the source |
| Wireless functions | Multiple SSID, hidden SSID, seamless roaming, 5G priority, WPA/WPA2/WPA3, MAC filter and client isolation |
| Working modes | Gateway mode and Access Point mode, with VLAN and cloud access support in gateway mode |
| Management | English/Chinese web remote management with status, traffic, network and configuration controls |
| Dimensions and weight | 304 × 181 × 88mm; 1.6kg |
| Environment | Operating −20℃ to 55℃; storage −40℃ to 70℃; operating humidity 10%–90% RH, non-condensing |
| Protection | IP65 weather and dust sealing; ESD air ±8kV/contact ±6kV; surge line-ground 4kV/line-line 2kV |

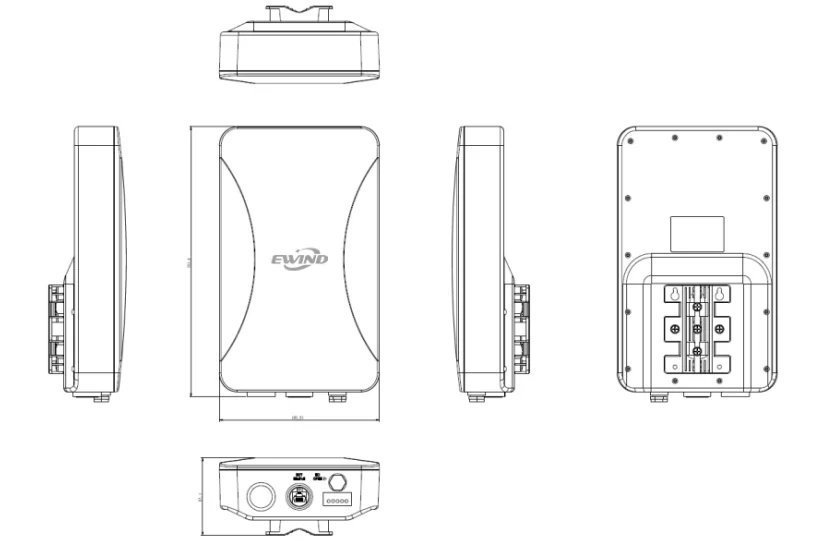

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 802.11AX 3000M outdoor AP (EW-API210) | 1 | SET |
| Strip | 2 | PCS |
| User manual | 1 | PCS |
EW-API210 Resources
PDF · Specifications · Installation · Ordering
