Model: EW-AC505

5-Port Gigabit Gateway for Wireless AP Controller

4 Gigabit LAN ports, 1 Gigabit WAN port, console and USB 3.0
MT7621AT CPU with 512M DDR and 16M Flash
Up to 128 users and 128 thin APs
Main-router or bypass-AC operation with remote management

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-AC505 is an enterprise-level CAPWAP gateway for small and medium-sized networks. It combines Gigabit WAN/LAN connectivity, routing and security policy controls, and centralized management for up to 128 thin APs.

CAPWAP gateway

Works as a main router or bypass AC for centralized thin-AP control.

Five Gigabit ports

Four LAN ports and one WAN port support flexible uplink and access layouts.

128-user scale

Supports up to 128 end users and 128 managed thin APs.

Policy control

Flow control, firewall, VPN, filtering and remote access management are built in.

Product technical specifications
Specification	Details
Interfaces	4 × Gigabit LAN, 1 × Gigabit WAN, 1 × console and 1 × USB 3.0
Processor and memory	MT7621AT CPU; 512M DDR; 16M Flash
AP management	Up to 128 users and 128 thin APs; centralized and remote management
Routing role	Main router or bypass AC with remote monitoring and maintenance
WAN features	Multi-WAN configuration, load balancing, multi-operator access, line backup, network overlay and policy routing
Smart flow control	One-click flow control, multi-line diversion and automatic priority application
Security and behavior	Firewall, VPN, MAC/URL/Web/IP filters, port forwarding, DMZ and P2P controls
Management	Web, CLI and Telnet management with remote management support
Power	DC 12V

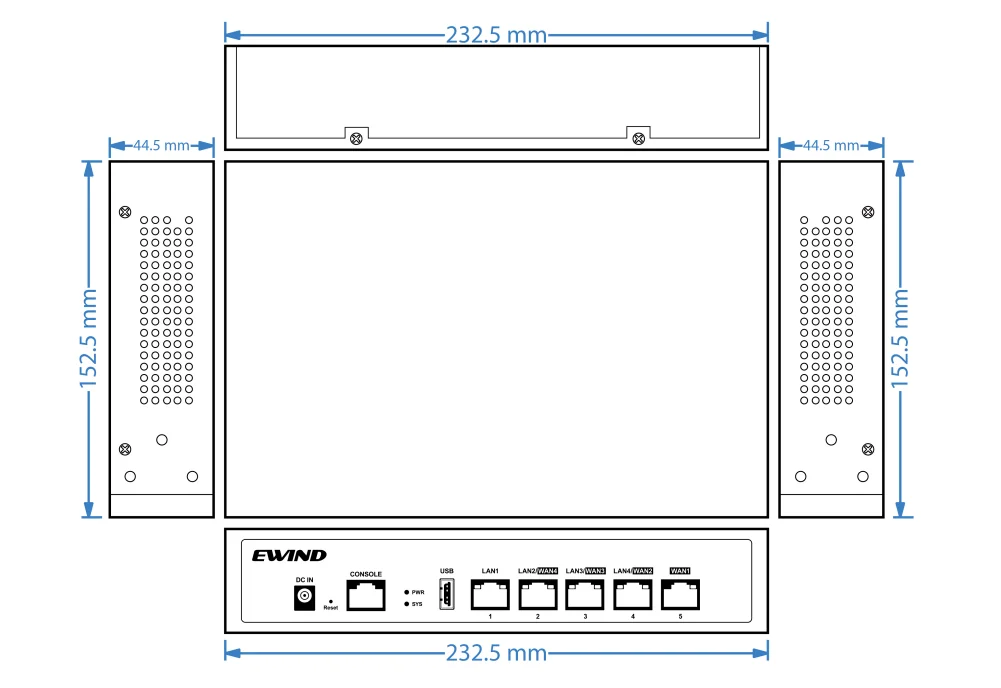

Dimensions	232.5 × 152.5 × 44.5mm
Environment	Working −20℃ to 55℃; storage −40℃ to 70℃; 5% to 97% RH, non-condensing

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Multi-WAN and routing

The source lists configurable multiple WANs, WAN load balancing, multi-operator access, line backup, network overlay, policy routing and static routing.

AP management

EW-AC505 can act as a bypass AC, manage and configure up to 128 thin APs, and provide centralized and remote AP management with user-status views.

Traffic and security controls

Intelligent flow control, bandwidth guarantees and limits, session restrictions, P2P control, URL filtering, firewall rules, VPN, port forwarding and DMZ are listed in the source datasheet.

Operations and deployment

Web, CLI and Telnet management, remote management, DDNS and TCP/UDP/ICMP flood defense support deployment across offices, hotels, shopping malls and other enterprise sites.
