Dual-band 1200Mbps
2.4GHz and 5GHz radios provide up to 1200Mbps combined throughput.
Model: EW-API205
2.4G & 5.8G 802.11ac 1200Mbps IP65 Outdoor Wireless AP
- 2.4GHz 802.11b/g/n up to 300Mbps and 5GHz 802.11a/n/ac up to 867Mbps
- 1 × 10/100Mbps WAN PoE and 1 × 10/100Mbps LAN
- 100m LOS coverage and up to 64 users in the software specification
- 24V passive PoE adapter included; DC12V/1A alternative
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

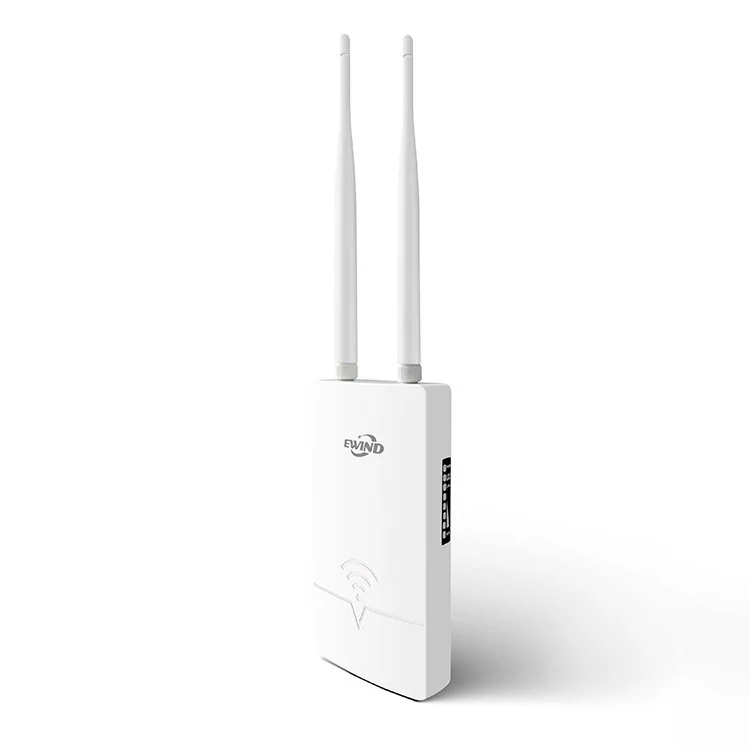

EW-API205 is an IP65 outdoor dual-band 802.11ac access point with 1200Mbps aggregate throughput, passive PoE, 100m LOS coverage and wall or pole mounting for exposed wireless sites.
IP65 outdoor build
Weather and dust sealing support outdoor deployment in exposed locations.
PoE installation
One 10/100Mbps WAN PoE port and one LAN port simplify outdoor wiring.
Flexible mounting

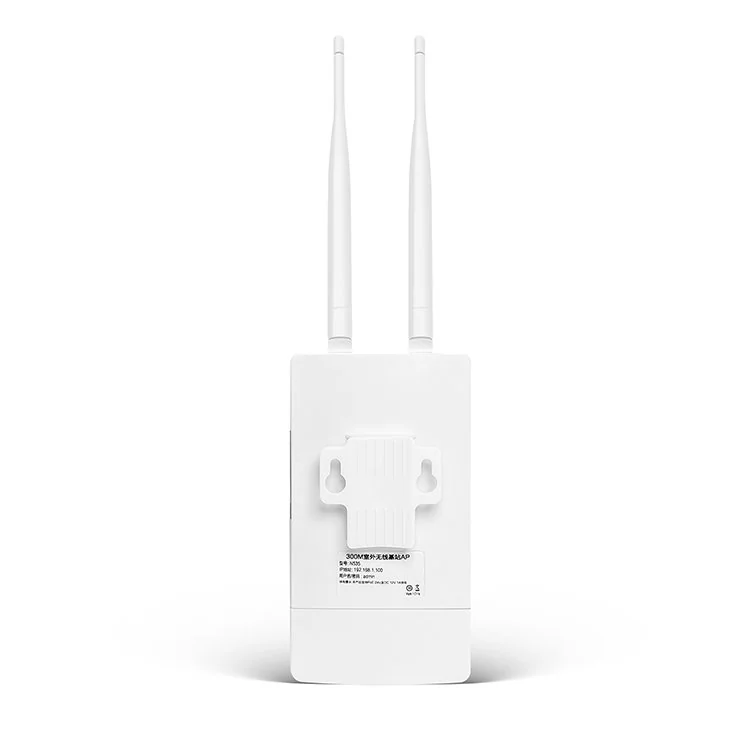

Wall or pole mounting, AP/Route/MESH modes and remote management support varied sites.
| Specification | Details |
|---|---|
| Wireless standard | 2.4GHz 802.11b/g/n 2T2R up to 300Mbps; 5GHz 802.11a/n/ac 2T2R up to 867Mbps |
| Frequency | 2.4GHz 2.4–2.4835GHz; 5GHz UNII-1 5.15–5.35GHz, UNII-2 5.47–5.725GHz and UNII-3 5.725–5.825GHz |

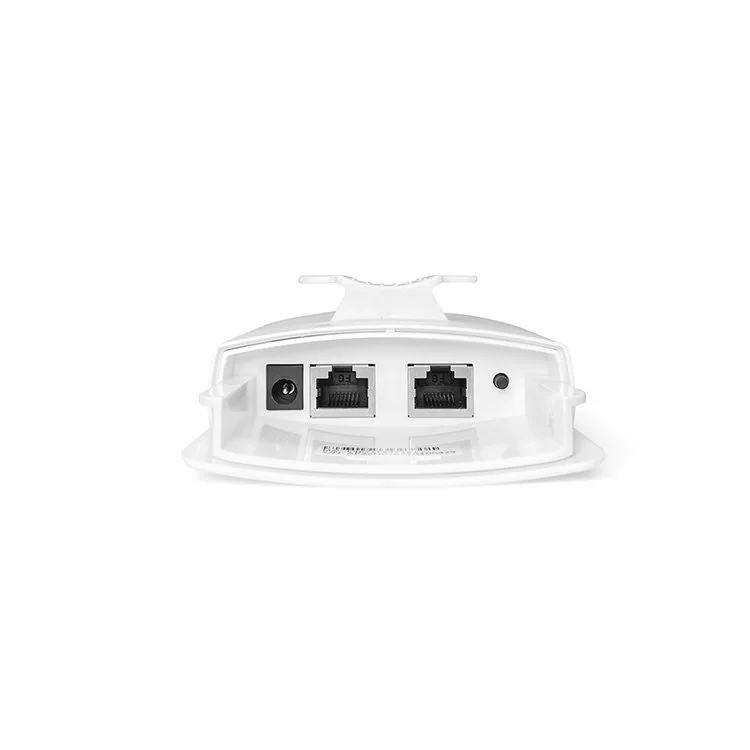

| Interfaces | 1 × 10/100Mbps WAN PoE, 1 × 10/100Mbps LAN, DC input and 2 × RP-SMA antenna connectors |
| Antennas | 2 × external 2.4GHz 5dBi outdoor omnidirectional antennas |
| Power | 24V/0.5A passive PoE or DC12V/1A |
| Capacity and range | 64 users in the software specification; 100m LOS wireless coverage listed in the source |
| Wireless functions | QVLAN, multiple SSID, portal, hidden SSID, client isolation, MAC filtering and wireless multimedia |
| Working modes | AP, Route and MESH |
| Management | English/Chinese web remote management with system, wireless and real-time traffic status |
| Dimensions and weight | 155 × 85 × 30mm excluding antennas; antenna length 155mm; 0.1kg |
| Environment | Operating −40℃ to 55℃; storage −50℃ to 70℃; operating humidity 10%–90% RH, non-condensing |
| Protection | IP65 weather and dust sealing |

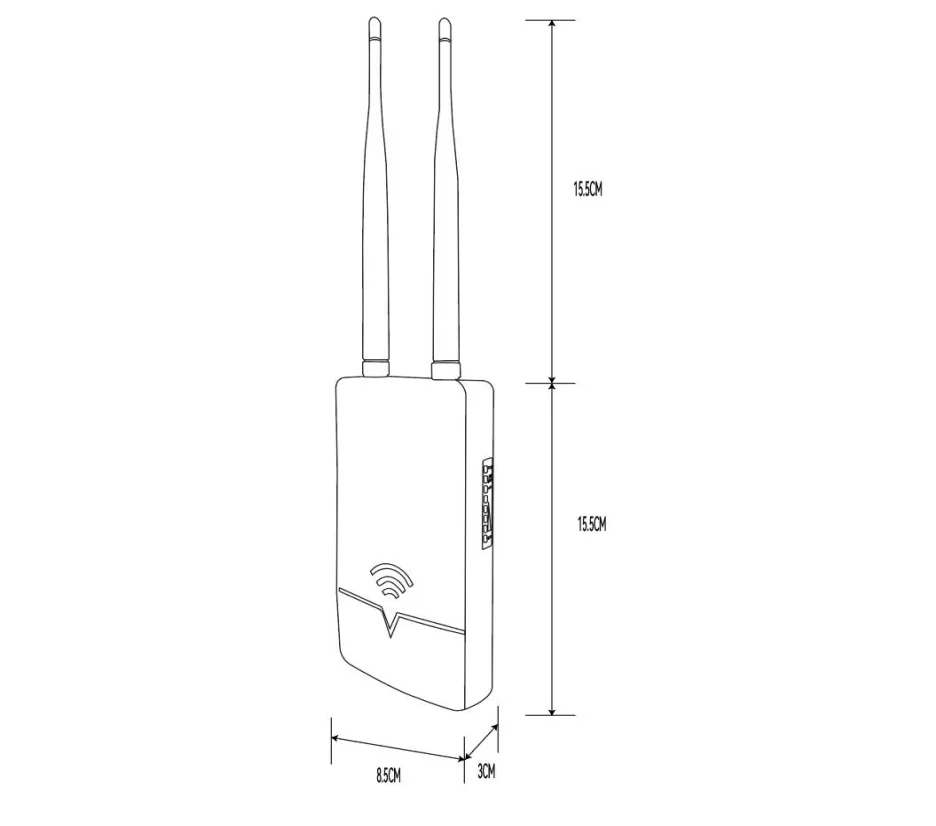

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 802.11ac 1200M outdoor AP (EW-API205) | 1 | SET |
| Strip | 2 | PCS |
| User manual | 1 | PCS |
