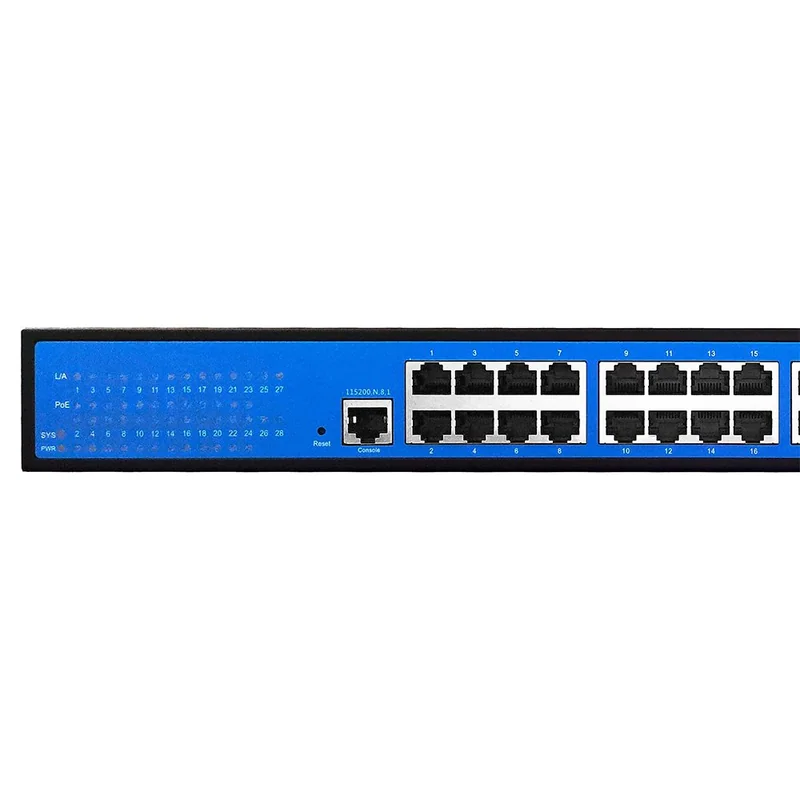

Twenty-four managed PoE ports
Ports 1–24 support IEEE 802.3af/at with configurable power allocation, priority, scheduling and status.

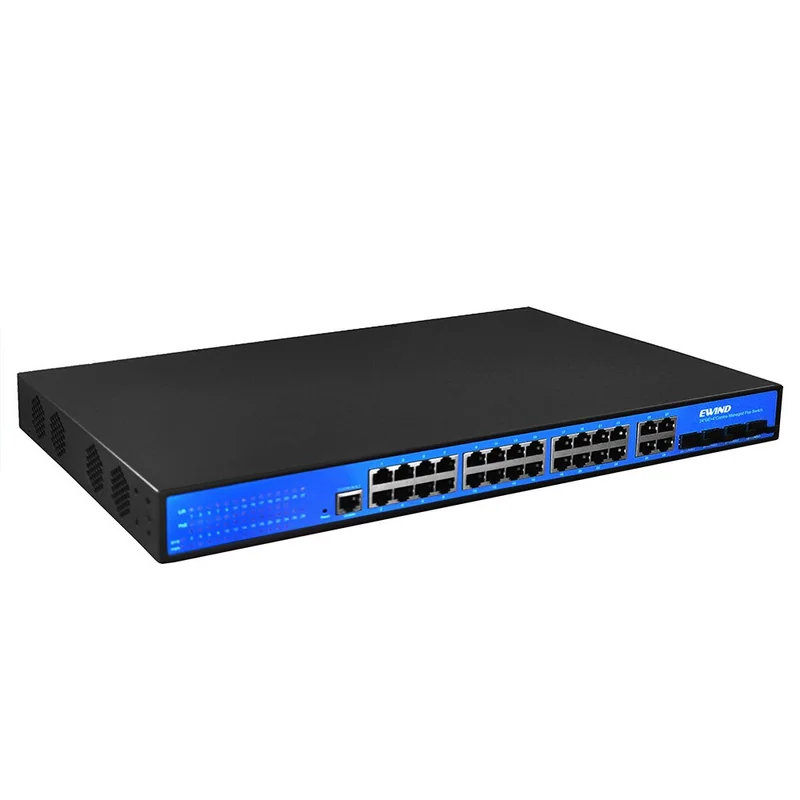

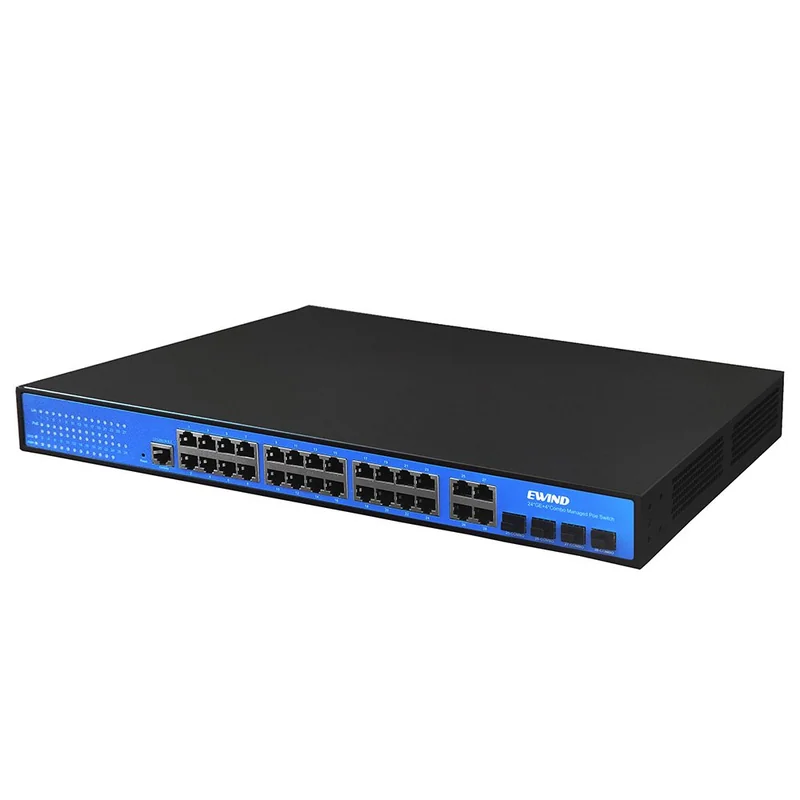

Model: EW-S2924GM-AP
24-Port Gigabit L2+ Managed PoE Switch with 4 Combo Uplinks
- 24 × 10/100/1000Mbps PoE ports · up to 30W per port
- 4 × 1000M combo SFP/RJ45 uplink ports
- 56Gbps switching · 400W internal AC supply · 1U rack mount
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
The EW-S2924GM-AP is a professional Gigabit L2+ managed PoE switch designed for enterprise, ISP, telecom and IT solution networks. Featuring 24× Gigabit PoE ports and 4× Combo uplinks, it provides high-density access connectivity with flexible copper or fiber uplinks, while supporting advanced L2+ management, multicast, network security and <20ms ERPS redundancy for reliable and scalable network deployments.

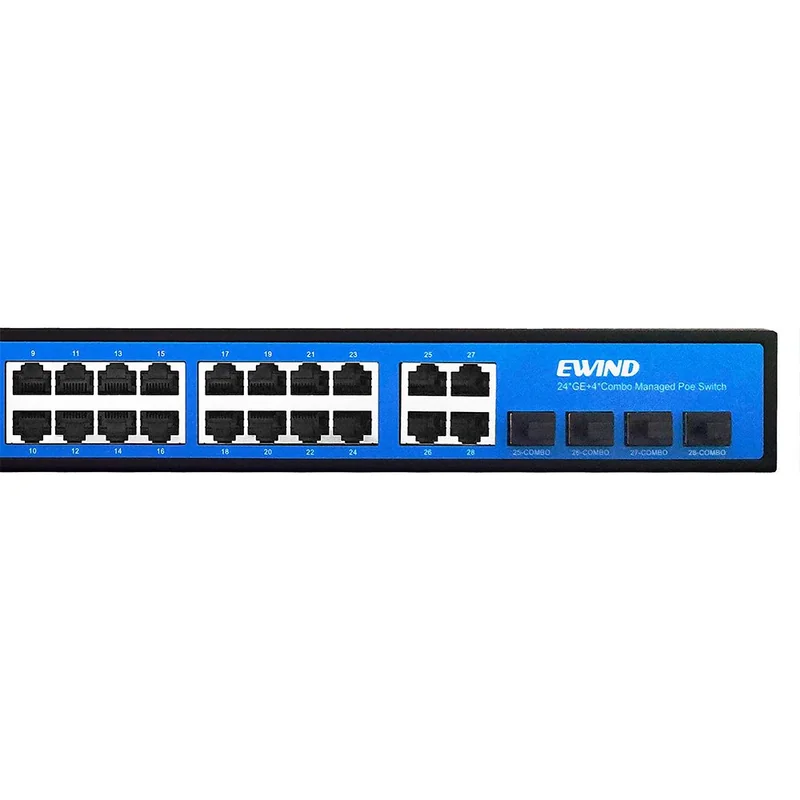

Four combo uplinks
Each combo position accepts the appropriate Gigabit copper or SFP connection for flexible aggregation.
L2+ resilience
Static routing, VLAN, LACP, STP/RSTP/MSTP, ERPS, QoS, ACL, SNMP and HTTPS support controlled networks.
| Ports | 24× 10/100/1000M PoE | Combo Uplinks | 4× 100/1000M Combo |
|---|---|---|---|
| DRAM | 128MB | FLASH | 16MB |
| Switching Capacity | 56 Gbps | Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K | Packet Buffer | 4.1M |
| Jumbo Frame | 10K | VLANs | Up to 4K |
| PoE Standard | IEEE 802.3af/at | PoE Output | Up to 30W/Port |
| PoE Power Budget | 400W | ERPS Recovery | <20 ms |
| Power Supply | AC 100–220V, 50–60Hz | Operating Temperature | -20°C to +55°C |
| Dimensions (W×D×H) | 440 × 290 × 44.5 mm | Installation | Desktop / 19" 1U Rack |
Features
Resiliency & Switching
- ERPS G.8032, recovery <20ms
- STP / RSTP / MSTP
- LACP Link Aggregation
- VLAN & QinQ
- IPv4/IPv6 Static Routing
Multicast & Traffic
- IGMP Snooping & Querier
- MLD Snooping
- Multicast VLAN & Fast Leave
- IGMP Filtering & Throttling
- 8-Queue QoS, SP/WRR
Security
- L2–L4 ACL
- 802.1X & RADIUS
- DHCP Snooping
- ARP Inspection
- IP Source Protection
Management
- Web/HTTPS & CLI
- SSH 2.0 / Telnet
- SNMP v1/v2c/v3 & Trap
- LLDP / LLDP-MED
- NTP & System Log
Order Information
| Model Name | Specification | Power Supply |
|---|---|---|
| EW-S2910GM-AP | 8*10/100/1000M PoE Port + 2*100/1000M SFP Uplink Access & Aggregation L2+ Managed PoE Switch | 120W |
| EW-S2916GM-AP | 8*10/100/1000M PoE Port + 2*100/1000M SFP Uplink Access & Aggregation L2+ Managed PoE Switch | 250W |
| EW-S2924GM-AP | 24*10/100/1000M PoE Port + 4*100/1000M Combo Uplink Access & Aggregation L2+ Managed PoE Switch | 400W |
| EW-S2828GM-AP | 24*10/100/1000M PoE Port + 4*1G/2.5G/10G SFP+ Uplink Access & Aggregation L2+ Managed PoE Switch | 400W |
| EW-S2854GM-AP | 48*10/100/1000M PoE Port + 6*1G/2.5G/10G SFP+ Uplink Access & Aggregation L2+ Managed PoE Switch | 800W |
| EW-S5928GM-AP | 24*10/100/1000M PoE Port + 4*1G/2.5G/10G SFP+ Uplink Access & Aggregation L3+ Managed PoE Switch | 400W |
| EW-S5954GM-AP | 48*10/100/1000M PoE Port + 6*1G/2.5G/10G SFP+ Uplink Access & Aggregation L3+ Managed PoE Switch | 800W |
EW-S2910GM-AP
120W8*10/100/1000M PoE Port + 2*100/1000M SFP Uplink
Access & Aggregation L2+ Managed PoE Switch
EW-S2916GM-AP
250W8*10/100/1000M PoE Port + 2*100/1000M SFP Uplink
Access & Aggregation L2+ Managed PoE Switch
EW-S2924GM-AP
400W24*10/100/1000M PoE Port + 4*100/1000M Combo Uplink
Access & Aggregation L2+ Managed PoE Switch
EW-S2828GM-AP
400W24*10/100/1000M PoE Port + 4*1G/2.5G/10G SFP+ Uplink
Access & Aggregation L2+ Managed PoE Switch
EW-S2854GM-AP
800W48*10/100/1000M PoE Port + 6*1G/2.5G/10G SFP+ Uplink
Access & Aggregation L2+ Managed PoE Switch
EW-S5928GM-AP
400W24*10/100/1000M PoE Port + 4*1G/2.5G/10G SFP+ Uplink
Access & Aggregation L3+ Managed PoE Switch
EW-S5954GM-AP
800W48*10/100/1000M PoE Port + 6*1G/2.5G/10G SFP+ Uplink
Access & Aggregation L3+ Managed PoE Switch
Applications
Versatile managed PoE access for enterprise campuses, ISP networks, surveillance systems, wireless coverage, hotels and industrial sites.
- Fiber uplink
- Ethernet
- PoE data + power
Enterprise / Campus Network
Dependable PoE access and flexible uplinks for offices, campuses and multi-building networks.
FTTx / ISP Network
Fiber-ready aggregation for distributed access networks and service-provider edge deployments.
Video Surveillance Network
Stable PoE delivery for IP cameras, recording systems and resilient surveillance backbones.
Wireless Network
Centralized PoE and traffic control for indoor and outdoor wireless access points.
Hotel Network
Reliable connectivity for guest Wi-Fi, room services, cameras and shared spaces.
Other Applications
A practical foundation for industrial sites, smart buildings and public facilities.
