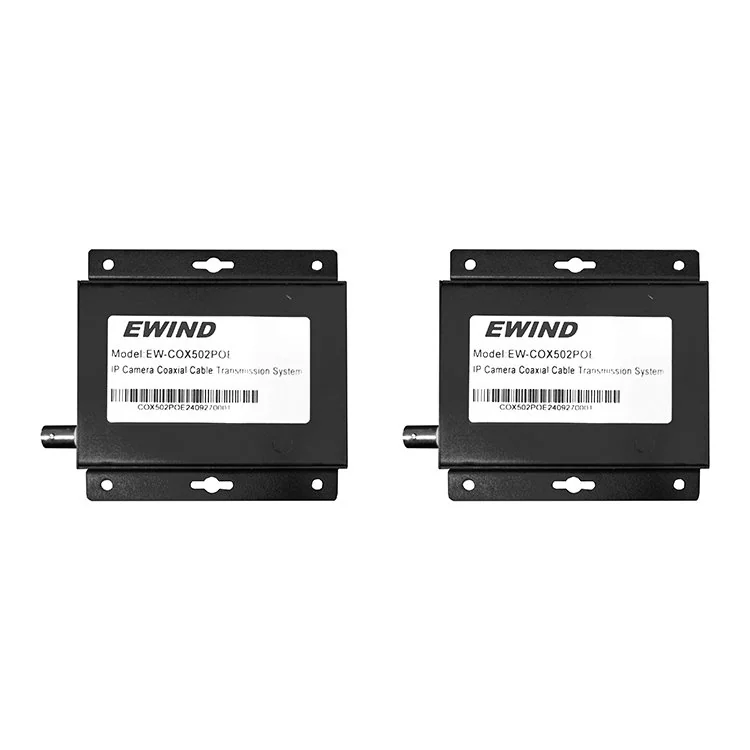

Model: EW-COX502PoE

Coaxial PoE Extender Pair for up to 2,000m Transmission

Up to 2,000m over compatible two-wire media
IEEE 802.3af/at · up to 30W PoE output
Coaxial, elevator traveling cable or twisted-pair transmission

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

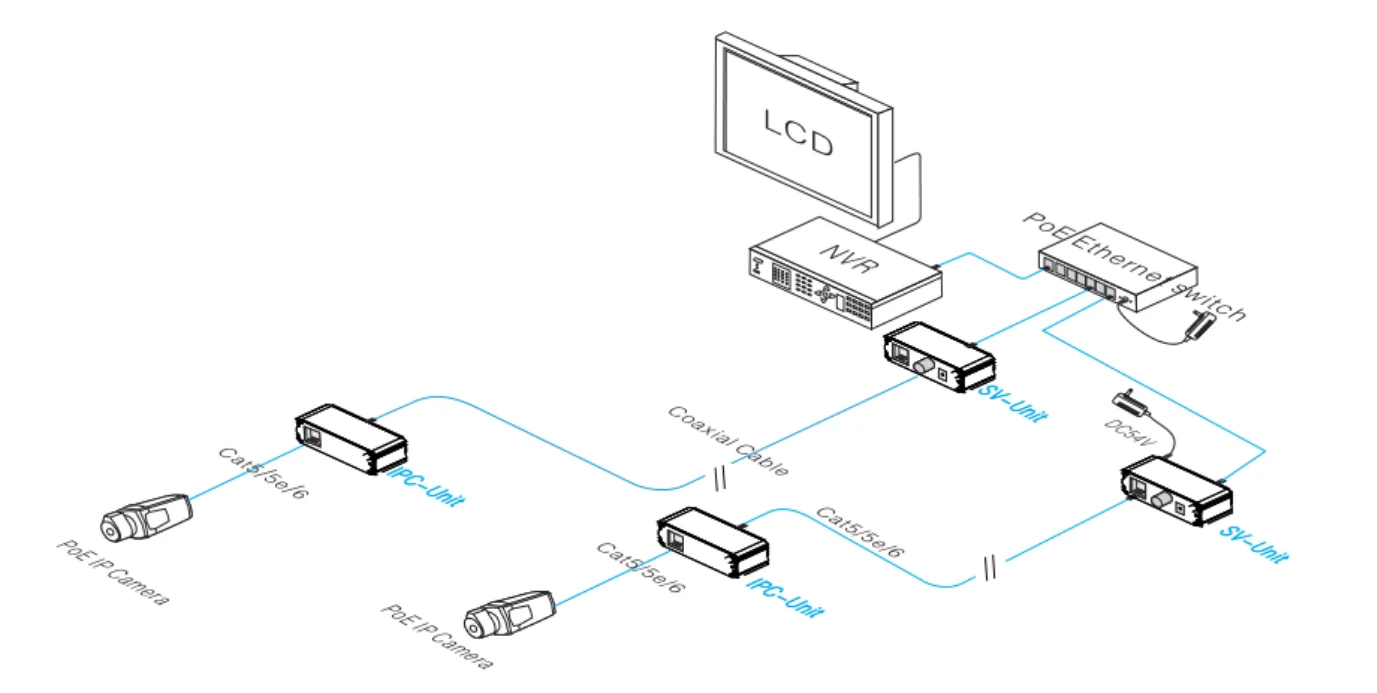

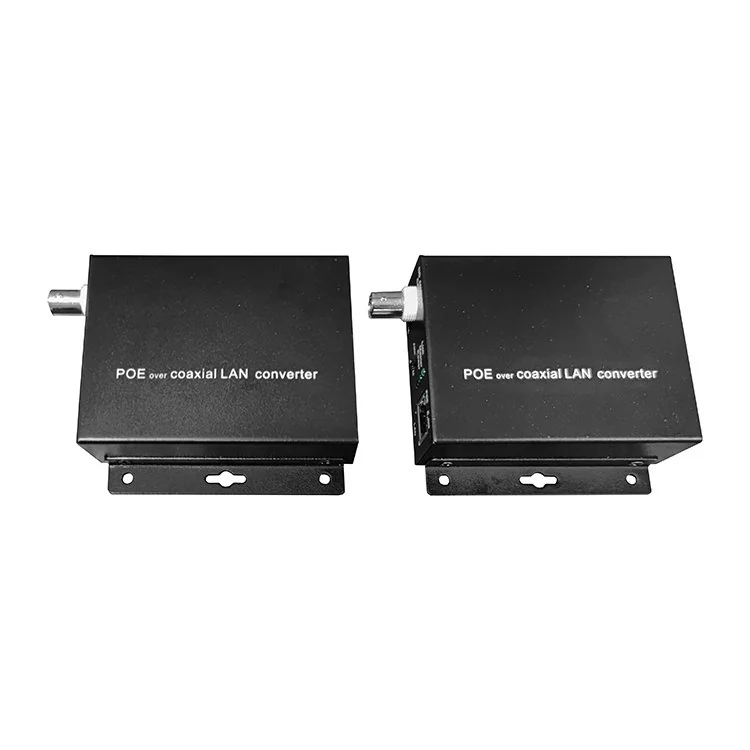

EW-COX502POE extends Ethernet and PoE over elevator traveling cable, coaxial cable or twisted pair where standard copper runs are too short. A matched master/slave pair supports remote power, transparent transmission and up to 2,000m over 75-5 coaxial cable.

Long-distance transparent link

The pair carries Ethernet over existing two-wire infrastructure with no software changes to the upper network.

Remote PoE power

DC or PoE input can feed a remote PD through the same cable, with up to 30W available under IEEE 802.3af/at.

Flexible field wiring

BNC, RJ45 and industrial terminal options support coax, elevator cable and twisted-pair retrofit projects.

Product technical specifications
Specification	Details
Model	EW-COX502POE
Transmission media	Elevator traveling cable, coaxial cable or twisted pair
Transmission distance	Up to 2,000m (75-5 coaxial line, media dependent)
Ethernet / link rate	10/100Mbps adaptive; PDF lists maximum link rate 90Mbps and physical-layer rate up to 240Mbps
PoE standard / output	IEEE 802.3af/at; up to 30W

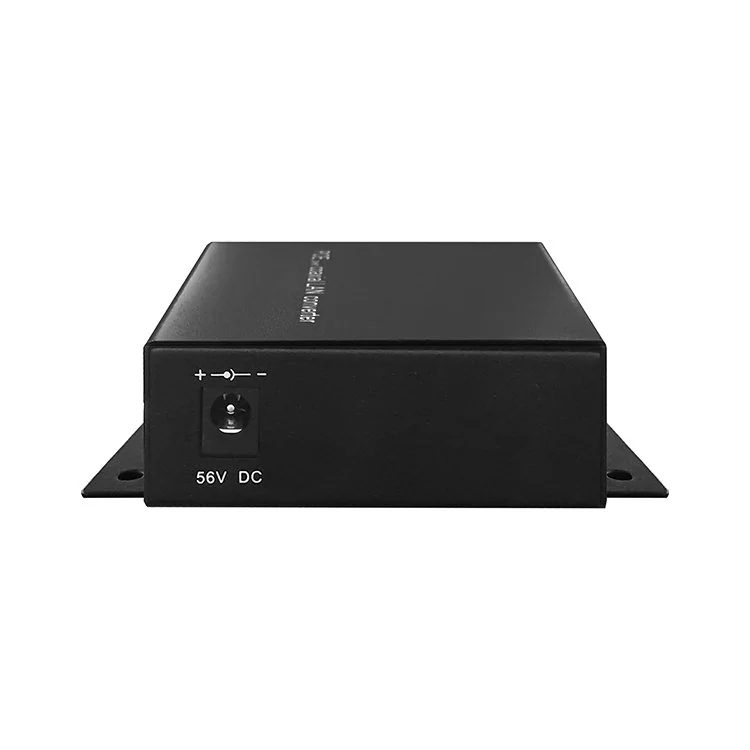

Power input / output	DC 48–56V/2A; PoE 44–56V; POC output 44–56V

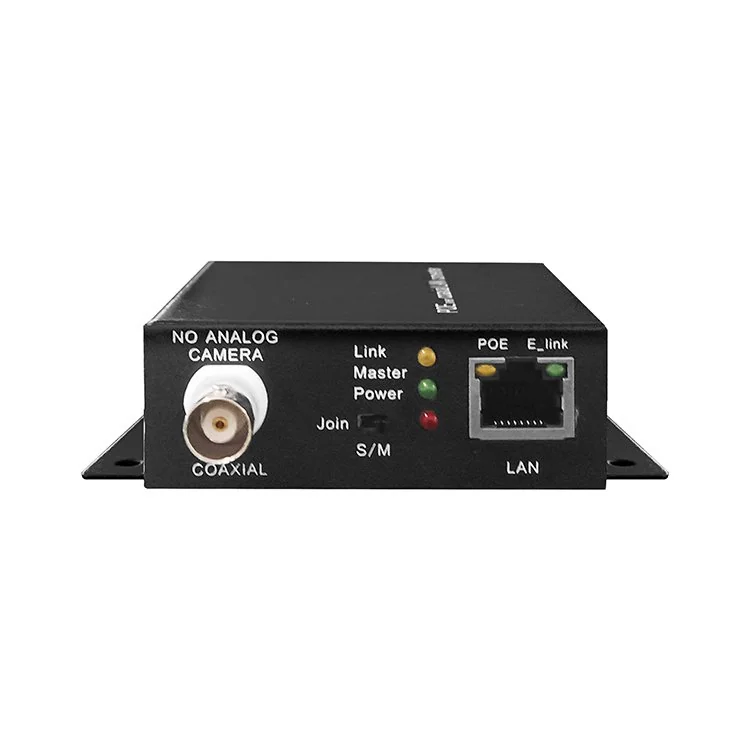

Connectors	2.1–5.5mm DC input; RJ45 data/PoE; 5.08mm two-wire terminal, BNC or RJ45 signal; optional RS485 terminal
RS485 / multicast	RS485 transparent transmission at 9600 or 115200 baud; IGMP multicast support
Dimensions / weight	121 × 74.4 × 29 mm excluding interfaces; 160g
Environment	−20 to +70°C operating; −40 to +85°C storage; 0–95% RH
Warranty	1 year
