26-port density
Twenty-four copper ports and two SFP slots provide flexible Gigabit access.
Model: EW-S1626CG

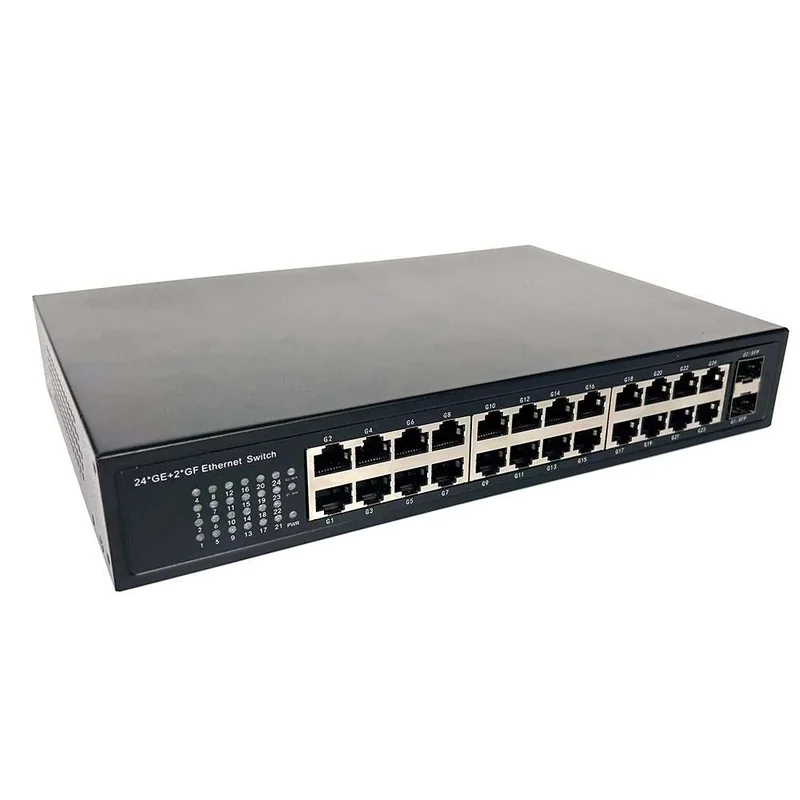

26-Port Gigabit Ethernet Switch with Dual SFP
- 24 × 10/100/1000Mbps RJ45 ports
- 2 × 1000Mbps SFP fiber ports
- 52Gbps backplane bandwidth and 38.688Mpps forwarding
- 8K MAC table with 4.1M buffer memory
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1626CG is a 26-port unmanaged Gigabit switch with twenty-four 10/100/1000Mbps RJ45 ports and two 1000Mbps SFP slots. Non-blocking forwarding, 52Gbps backplane bandwidth and rack or desktop installation suit office, campus and aggregation access networks.
Non-blocking fabric
52Gbps backplane bandwidth keeps full-duplex traffic flowing.

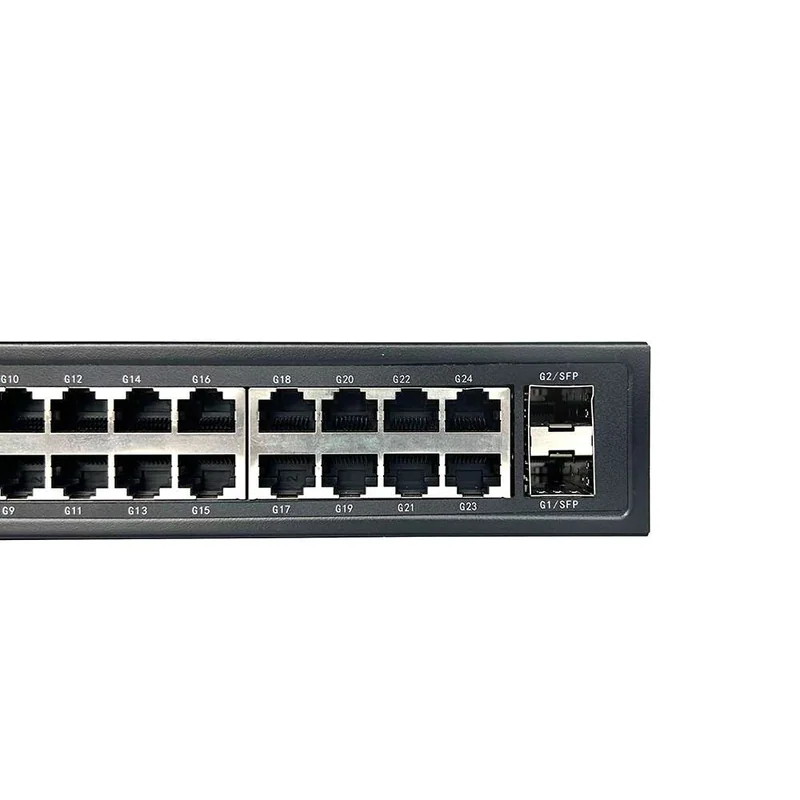

SFP uplinks
Use optional Gigabit SFP modules for fiber aggregation.
Rack ready
The 270 × 180 × 45mm enclosure supports desktop, wall and 1U mounting.
| Specification | Details |
|---|---|
| Interfaces | 24 × 10/100/1000Mbps RJ45; 2 × 1000Mbps SFP |
| Switching performance | 52Gbps backplane; 38.688Mpps; store-and-forward |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab and 802.3z |
| MAC / buffer | 8K MAC address table; 4.1M buffer |
| Copper reach | 10/100Mbps up to 100m over Cat5 or better; Gigabit up to 100m over Cat5e or better |
| Power input | 100–240VAC, 50–60Hz, 1A |
| Power output | 12V/2A external power adapter |
| Power consumption | Under 15W maximum |
| Dimensions | 270 × 180 × 45mm |
| Installation | Desktop, wall mounted or 19-inch 1U cabinet |
| Environment / warranty | Operating −20°C to +55°C; storage −40°C to +75°C; 1 year |

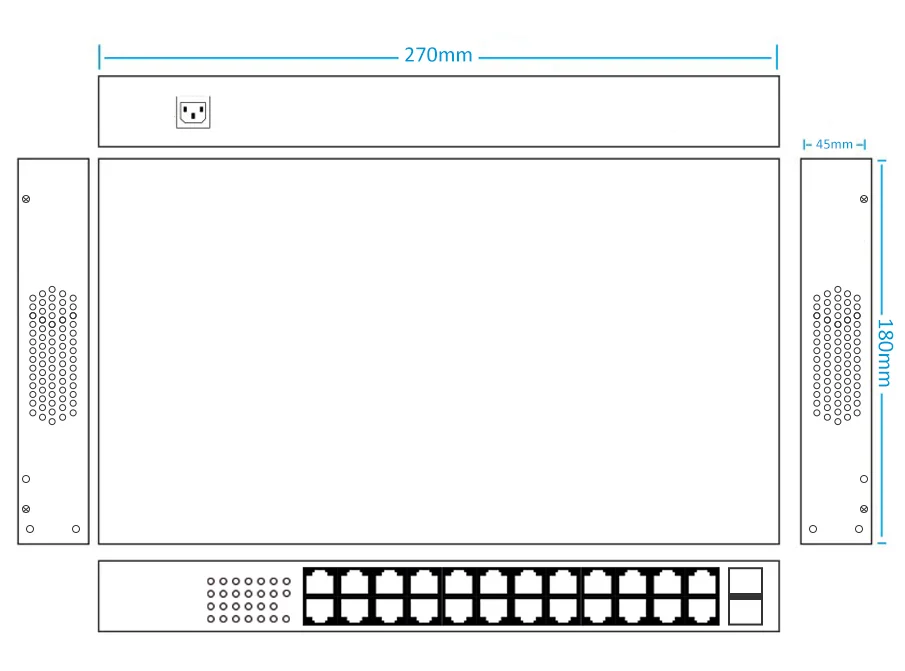

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 26-Port 10/100/1000M Network Switch (EW-S1626CG) | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
