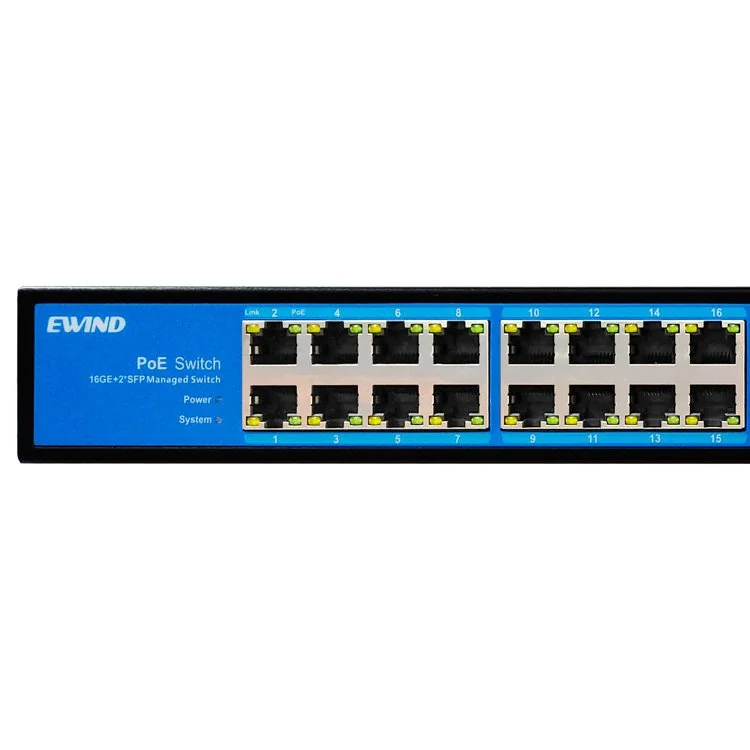

Sixteen managed PoE ports
Ports 1–16 support IEEE 802.3af/at with per-port allocation, priority, scheduling and status monitoring.
Model: EW-S2918GM-AP
16-Port Gigabit L2+ Managed PoE Switch with 2 SFP Uplinks
- 16 × 10/100/1000Mbps PoE ports · up to 30W per port
- 2 × 100/1000M SFP uplinks · 256Gbps switching
- L2+ management · 400W internal supply · 1U rack mount
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2918GM-AP combines sixteen Gigabit PoE ports, two Gigabit SFP uplinks and a console port in a 1U managed chassis. L2+ routing, VLAN, ERPS, QoS and per-port PoE scheduling support high-density surveillance and campus networks.

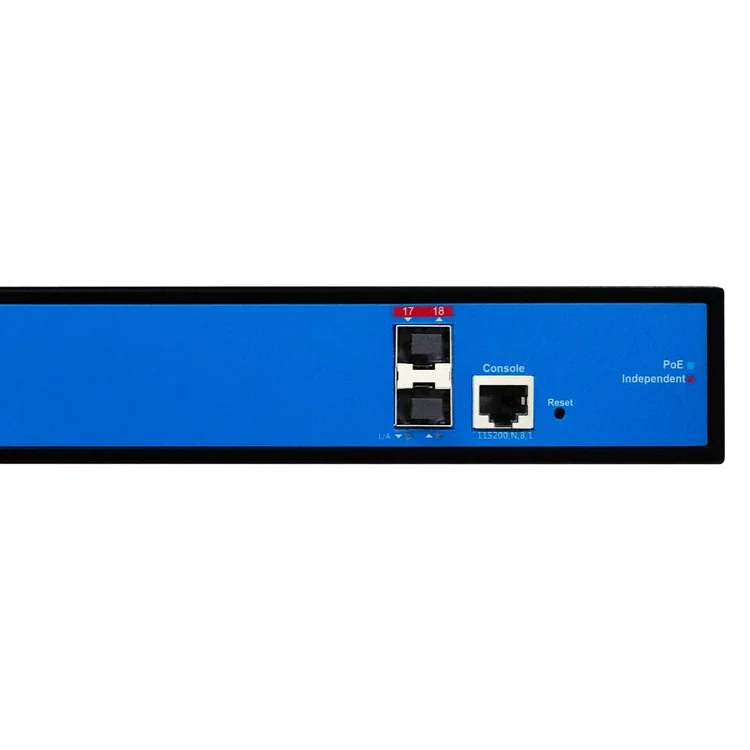

Gigabit SFP uplinks
Two SFP slots accept separately purchased modules for multimode links up to 550m or single-mode links up to 120km.
Resilient L2+ control
Static routing, VLAN, LACP, STP/RSTP/MSTP, ERPS, ACL, QoS and SNMP support managed networks.
| Specification | Details |
|---|---|
| Model | EW-S2918GM-AP |
| PoE ports | 16 × 10/100/1000BASE-T PoE; ports 1–16 |
| Uplinks | 2 × 100/1000M SFP data slots |
| Console | 1 × RS232, 115200/N/8/1 |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Switching / forwarding | 256Gbps non-blocking / 26.78Mpps |
| MAC / buffer / jumbo frame | 8K / 6M / 9.6K |
| Total power / supply | 400W; built-in AC input (source lists 100–220V; verify local variant) |
| Management | L2+ IPv4/IPv6, static/default routing, VLAN, LACP, STP/RSTP/MSTP, ERPS, IGMP/MLD, QoS, ACL, SNMP and WEB |
| Dimensions / installation | 440 × 290 × 44.5 mm; desktop or 19-inch 1U rack mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 3 years; lifetime maintenance |

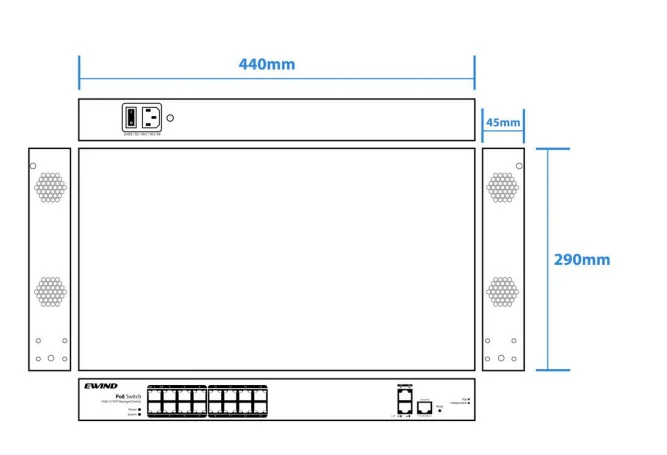

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2918GM-AP managed Gigabit PoE switch | 1 | SET |
| Hanging ear | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

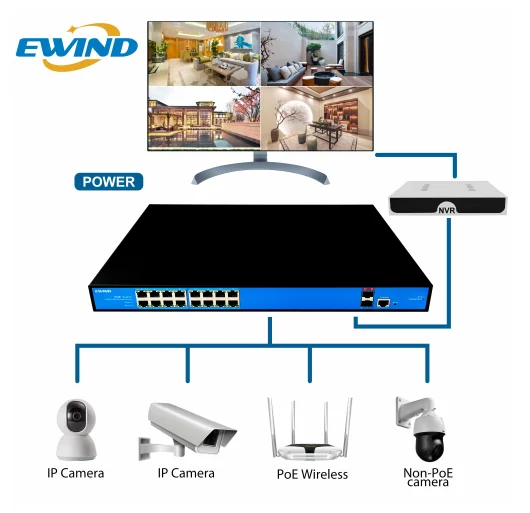

Applications
High-density surveillance, campus, hotel, factory and SMB networks with managed PoE cameras, access points and fiber uplinks.
