Model: EW-S5736GM

36-Port Managed Fiber Switch with 8 Gigabit RJ45 and 4 10G Uplinks

24 Gigabit SFP + 8 Gigabit RJ45 data ports
4 × 1G/2.5G/10G SFP+ uplinks
L3 software routing and IPv4/IPv6 management
32K MAC table; 3-year warranty

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

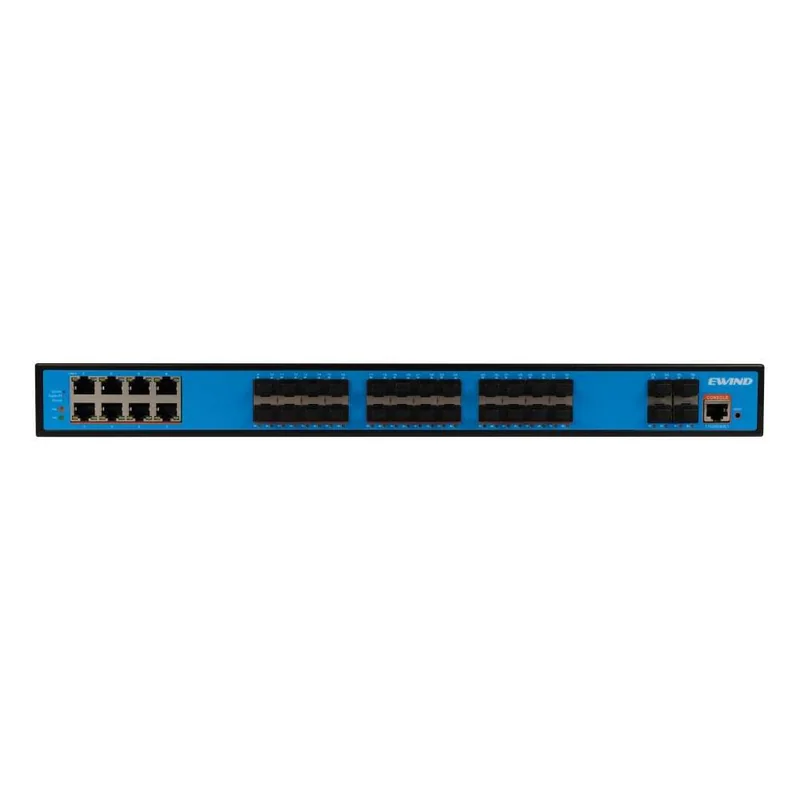

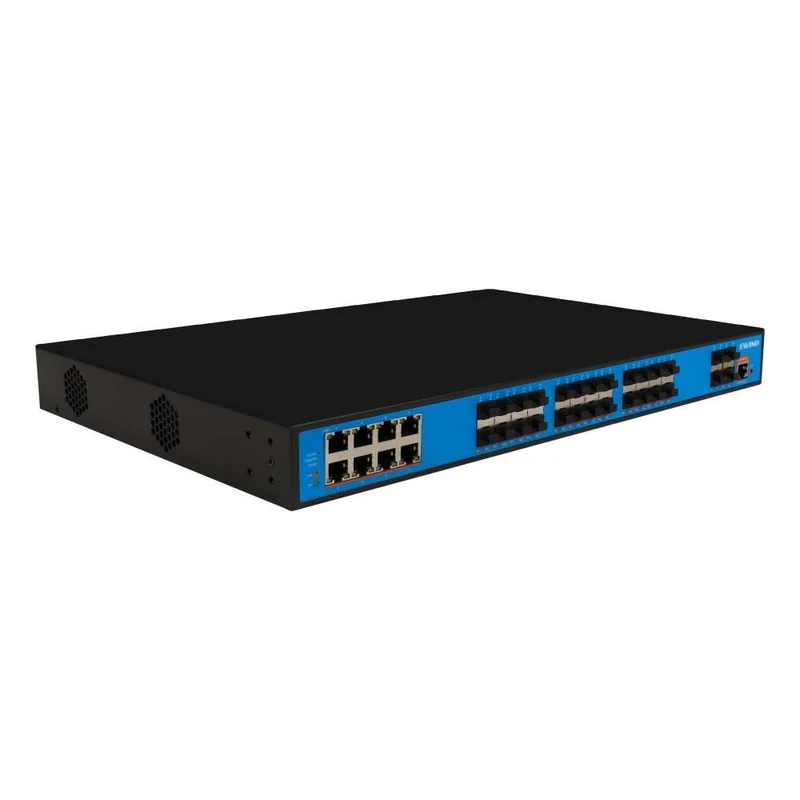

EW-S5736GM provides 24 Gigabit SFP fiber ports, eight Gigabit RJ45 data ports and four 1G/2.5G/10G SFP+ uplinks. L3 software routing and managed switching functions support fiber aggregation in enterprise and campus networks.

Fiber aggregation

Twenty-four 100/1000Mbps SFP ports collect access links alongside eight copper ports.

10G upstream links

Four SFP+ slots support 1G, 2.5G and 10G uplink configurations.

Managed traffic

VLANs, QoS, spanning tree and ERPS support network segmentation and resilience.

Product technical specifications
Specification	Details
Model	EW-S5736GM
Copper ports	8 × 10/100/1000BASE-T RJ45; data only
Fiber ports	24 × 100/1000Mbps SFP
Uplinks	4 × 1G/2.5G/10G SFP+
Management	L3; web, SNMP and console
Forwarding rate	107.14Mpps
MAC table	32K entries

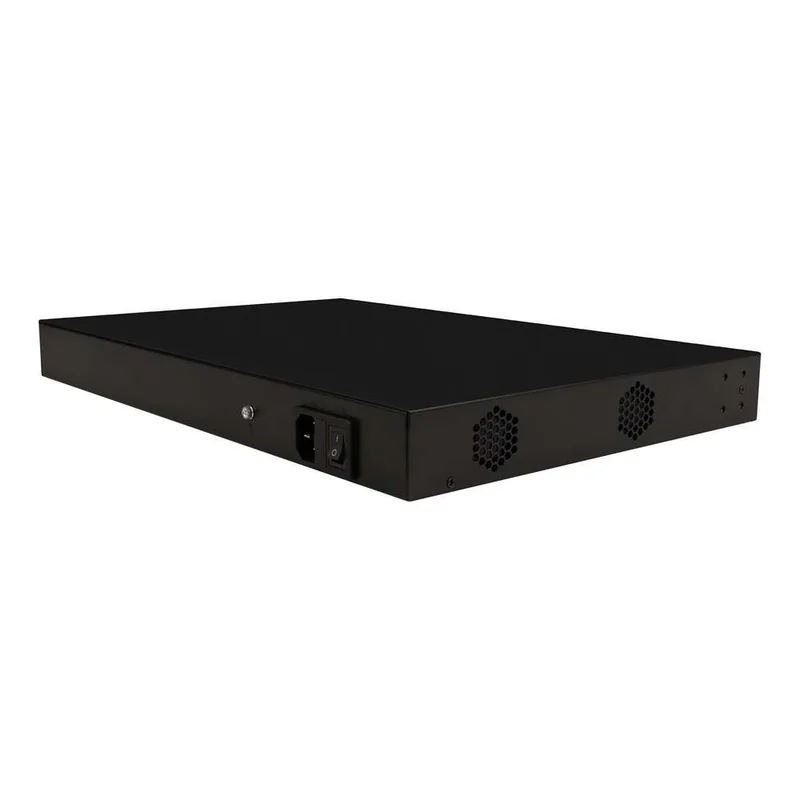

Power input	AC 100–220V, 50–60Hz; built-in supply

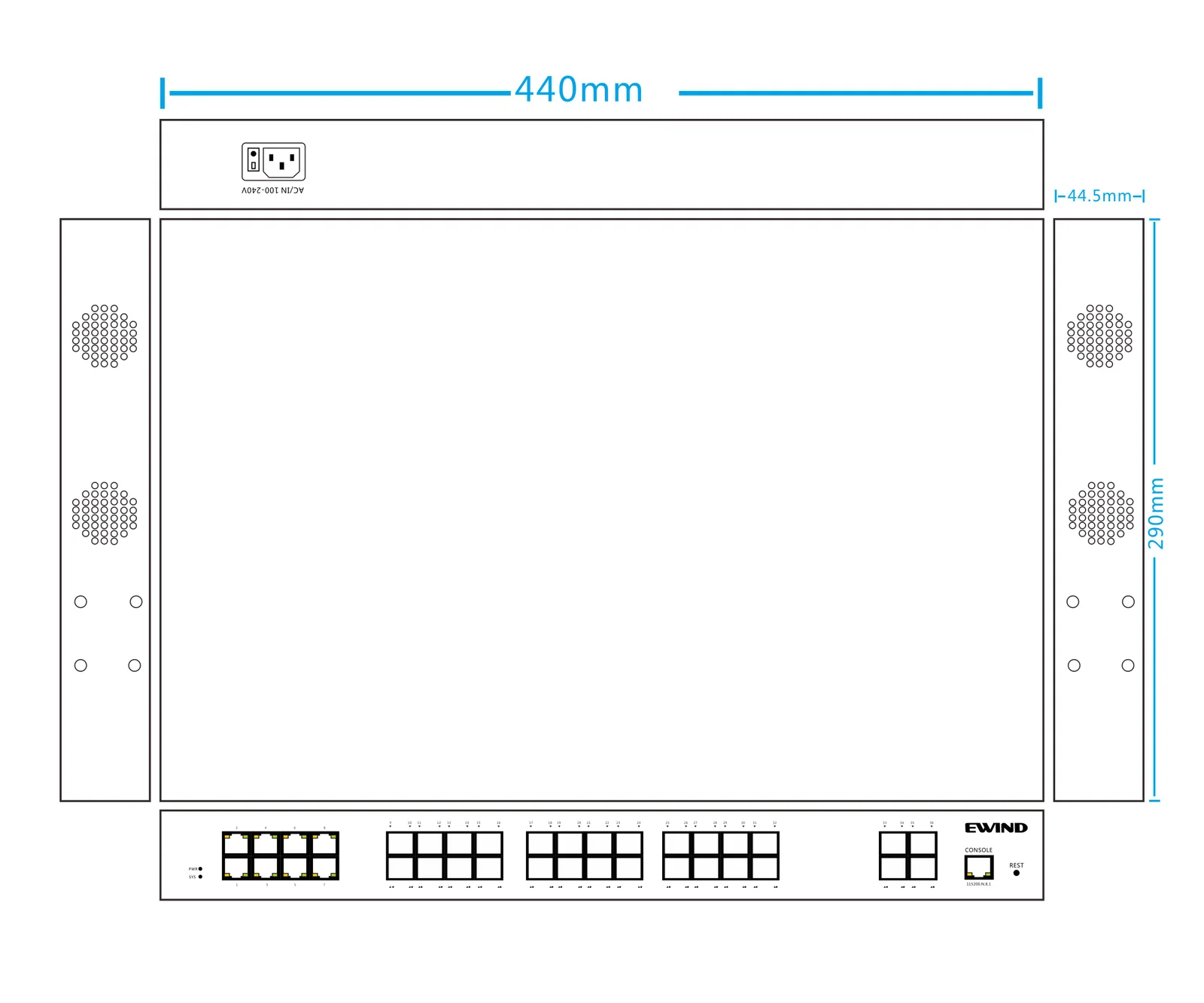

Dimensions	440 × 290 × 44.5 mm
Installation	Desktop or 19-inch 1U rack
Operating temperature	−20°C to +55°C
Warranty	3 years
