36 network ports
Twenty-four powered copper ports and twelve fiber slots support access and aggregation.

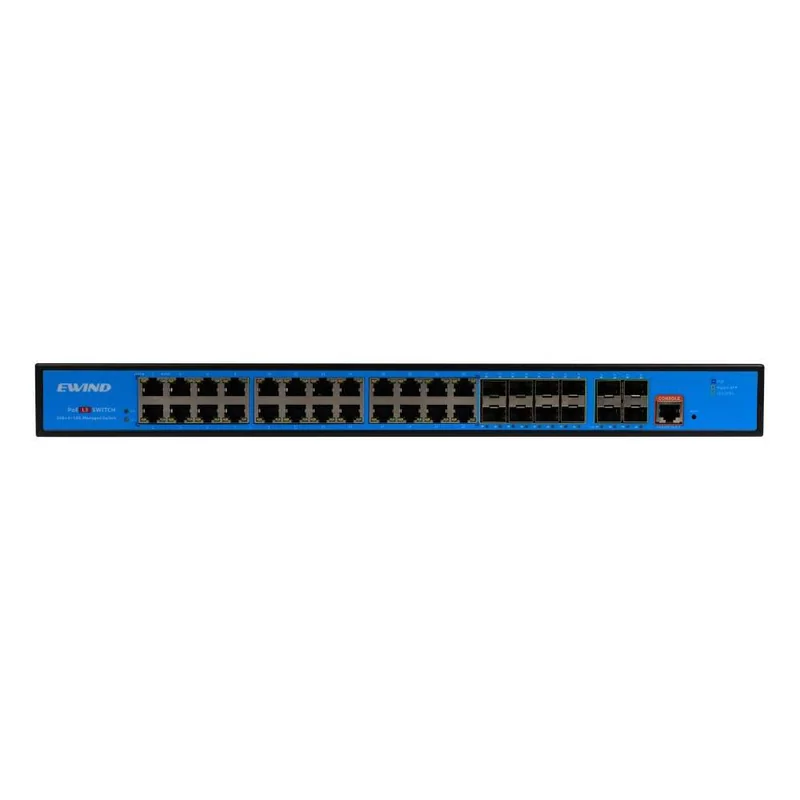

Model: EW-S5736GM-8GF-AP
36-Port Managed PoE Switch with Gigabit Fiber and 10G Uplinks
- 24 Gigabit PoE ports + 8 Gigabit SFP ports
- 4 × 1G/2.5G/10G SFP+ uplinks
- 400W supply; IEEE 802.3af/at up to 30W per port
- L3 management, static routes and ERPS
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S5736GM-8GF-AP provides 24 Gigabit PoE ports, eight 100/1000Mbps SFP ports and four 1G/2.5G/10G SFP+ uplinks. Static routing, scheduled PoE and redundancy controls support mixed copper and fiber networks with a 400W power configuration.
Managed PoE delivery
Apply power limits, priorities, startup delays and schedules to individual ports.
Resilient links
ERPS, spanning tree and link aggregation support redundant network designs.
| Specification | Details |
|---|---|
| Model | EW-S5736GM-8GF-AP |
| PoE ports | 24 × 10/100/1000BASE-T RJ45 |
| Fiber access | 8 × 100/1000Mbps SFP |
| Fiber uplinks | 4 × 1G/2.5G/10G SFP+ |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Power supply | 400W; AC 100–220V, 50–60Hz |
| Management | L3; static routing, web, CLI and SNMP |
| Forwarding / MAC table | 107.14Mpps / 32K entries |
| Dimensions | 440 × 290 × 44.5 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |

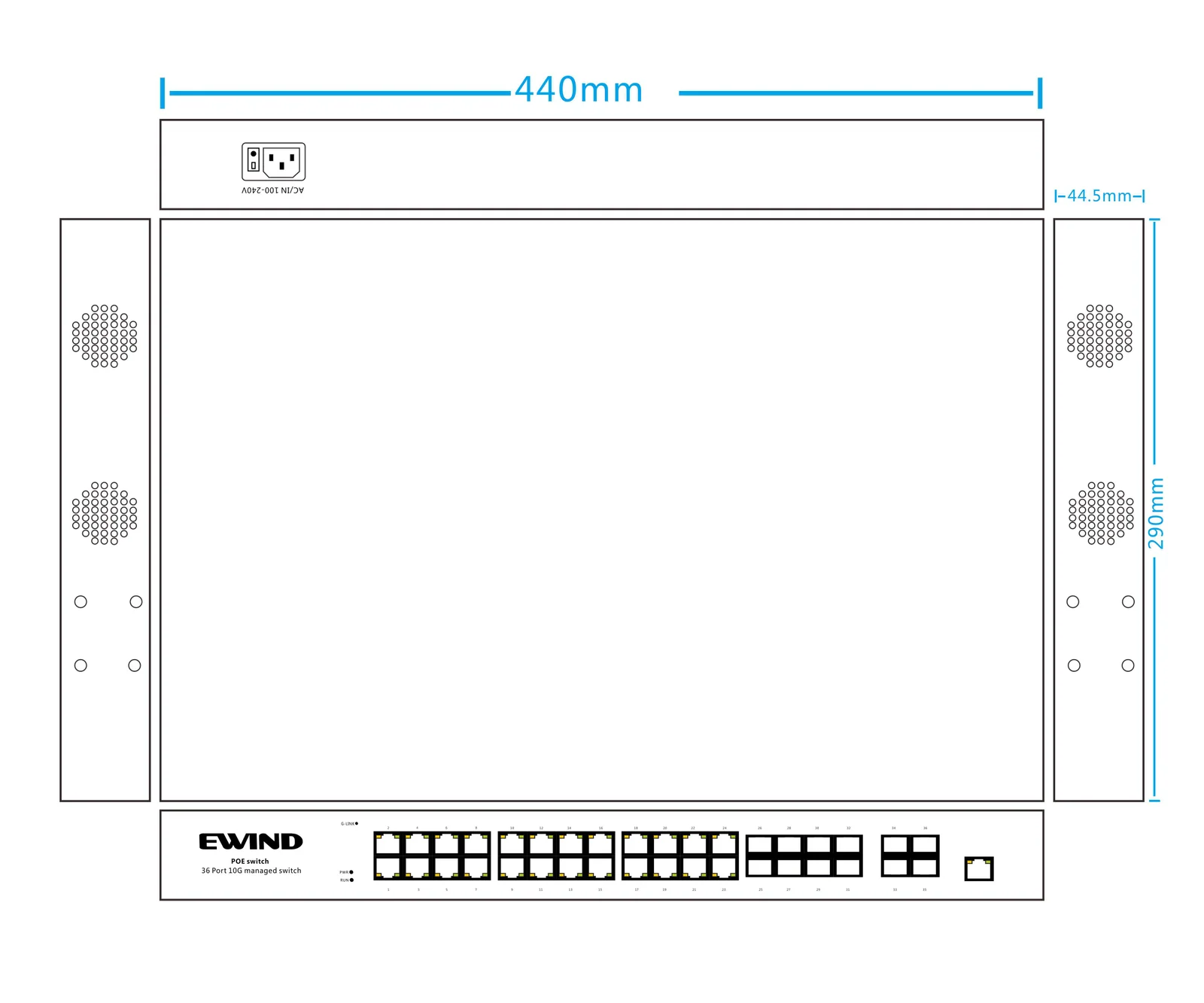

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S5736GM-8GF-AP switch, 400W configuration | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
