Model: EW-IS3806M

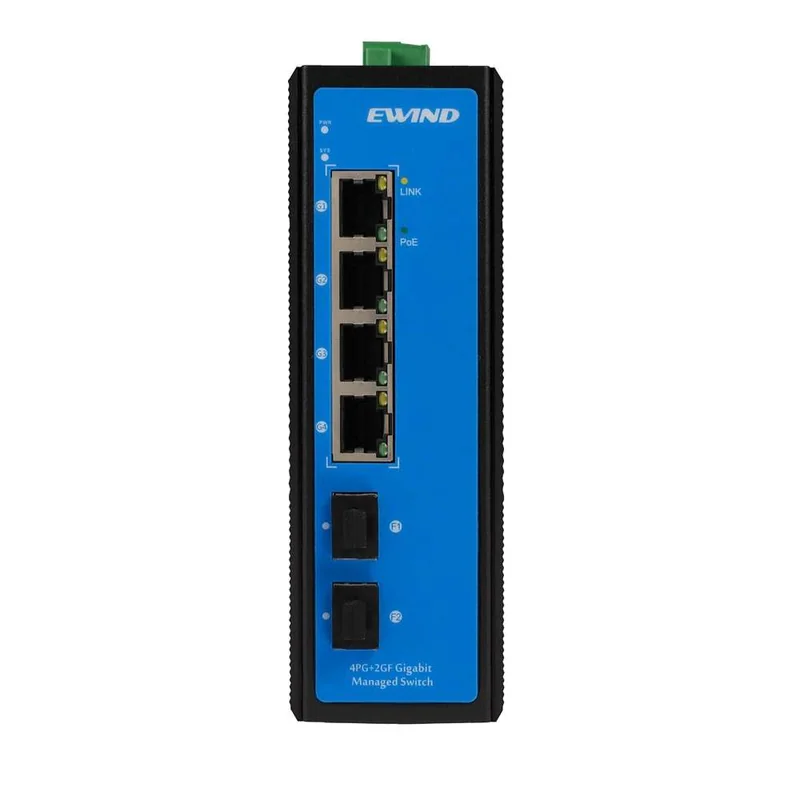

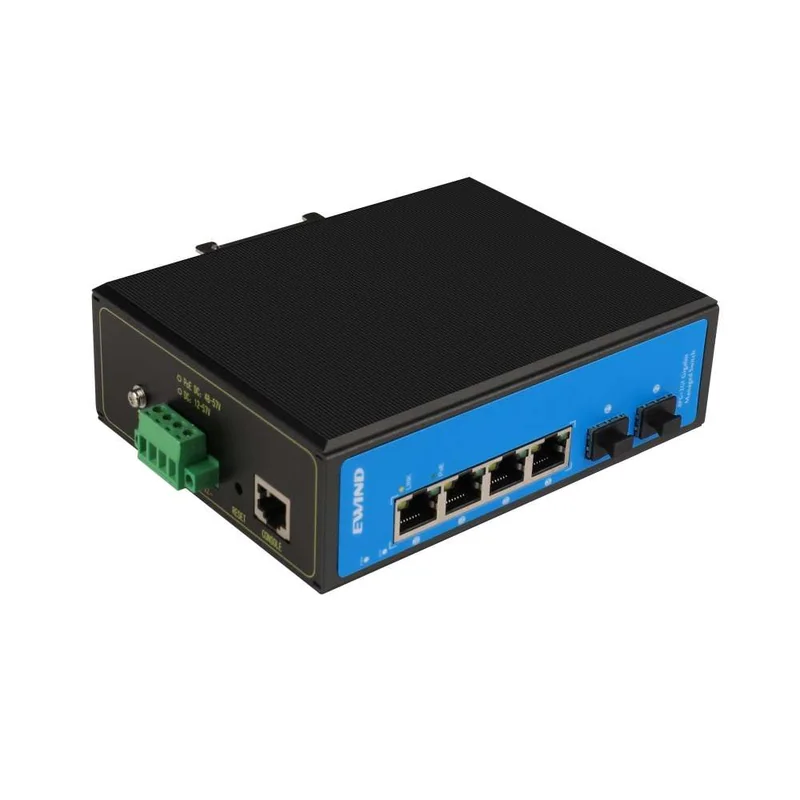

4-Port Gigabit Managed Industrial Switch with 2 SFP Uplinks

4 × 10/100/1000Mbps RJ45 data ports
2 × 100/1000M SFP fiber uplinks
L2+ management · redundant 12–48V DC input

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS3806M provides four Gigabit copper data ports and two 100/1000M SFP uplinks with L2+ management. Redundant 12–48V DC input, static routing and industrial protection suit resilient cabinet networks.

Managed copper and fiber

Four Gigabit data ports and two SFP slots connect local devices and fiber segments.

L2+ traffic control

VLAN, ACL, QoS, aggregation and ERPS features support controlled resilient networks.

Industrial operation

Fanless IP40 housing, redundant DC input and a −40 to +80°C range suit cabinets.

Product technical specifications
Specification	Details
Model	EW-IS3806M
Copper ports	4 × 10/100/1000BASE-T RJ45 data ports
Fiber uplinks	2 × 100/1000BASE-X SFP slots; modules sold separately
Management	L2+; IPv4/IPv6 management
Routing	Static/default software routing; 128 routes and 1,024 ARP entries
Switching / forwarding	128 Gbps / 5.95 Mpps
MAC / buffer	1K / 1M
Power input	Redundant 12–48V DC; Phoenix terminal; reverse-polarity protection
Power consumption	Standby <2W; full load <7W

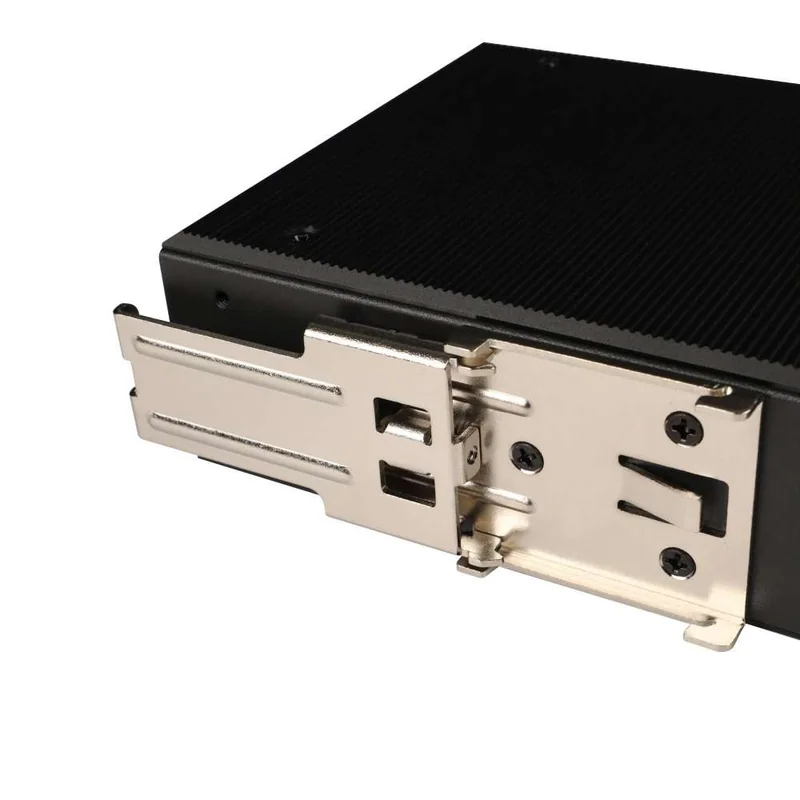

Enclosure / installation	IP40; industrial desktop or rail installation
Dimensions / weight	145 × 112 × 48 mm; <0.6kg net
Operating environment	−40 to +80°C; 5–90% RH, non-condensing
Warranty	5 years
