Model: EW-PIS3910M-8GE

8-Port Gigabit Managed Industrial PoE Switch with 2 SFP Uplinks

8 × Gigabit PoE ports · IEEE 802.3af/at
2 × 100/1000M SFP uplinks
12–40V DC input with 48V booster · −40 to +85°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS3910M-8GE provides eight Gigabit PoE ports and two 100/1000M SFP uplinks with L2+ management. Its 12V booster accepts a wide DC input for industrial PoE deployments that need redundant power and fiber reach.

Industrial PoE access

Eight Gigabit ports power compatible AF/AT endpoints, with output allocation and scheduling controls.

Fiber uplinks

Two SFP slots provide 100/1000M fiber connections; select modules for the required link.

Wide-input booster

The internal 12V booster converts the supported DC input range for PoE operation in industrial cabinets.

Product technical specifications
Specification	Details
Model	EW-PIS3910M-8GE
PoE ports	8 × 10/100/1000BASE-T PoE
Fiber uplinks	2 × 100/1000BASE-X SFP slots; modules sold separately
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Input / booster output	12–40V DC input; 48V PoE booster output
Management	L2+ managed
MAC / buffer	8K / 4M
Power consumption	Standby <8W; full load <240W, per source table
Enclosure / protection	IP40; industrial housing

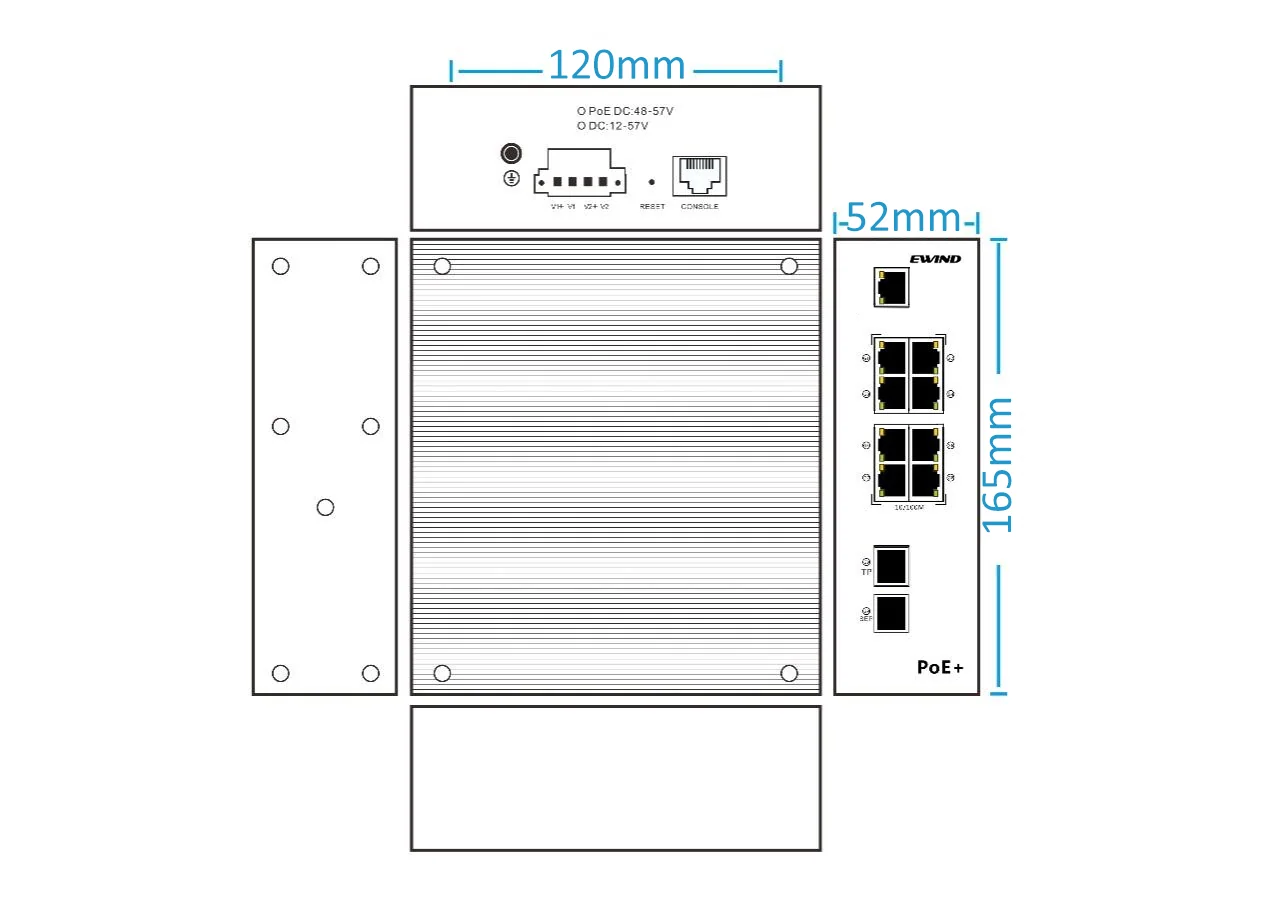

Dimensions / weight	165 × 120 × 52 mm; <0.8kg net
Operating environment	−40 to +85°C; 5–90% RH, non-condensing
Warranty	5 years
