High-density power
IEEE 802.3af/at ports power compatible cameras, APs and phones within the shared 800W budget.
Model: EW-S2854GM
48-Port Gigabit Managed PoE Switch with 6 Multi-Rate SFP+ Uplinks
- 48 × Gigabit PoE ports · up to 30W per port
- 6 × 1/2.5/10G SFP+ uplinks
- 800W power budget · L2+ management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2854GM provides 48 Gigabit PoE ports and six 1/2.5/10G SFP+ uplinks in a 1U chassis. L2+ management, scheduled PoE controls and redundant-link protocols support high-density enterprise access networks.
Six fiber uplinks
Six multi-rate SFP+ slots provide flexible 1G, 2.5G or 10G aggregation.
Managed access
VLAN, QoS, ACL, STP/RSTP and ERPS features support controlled and resilient networks.
| Specification | Details |
|---|---|
| Model | EW-S2854GM |
| PoE ports | 48 × 10/100/1000BASE-T PoE |
| Uplinks | 6 × 1/2.5/10G SFP+; modules sold separately |
| PoE standard / port limit | IEEE 802.3af/at; up to 30W per port |
| Total power budget | 800W; AC 100–220V input |
| Management | L2+ managed |
| MAC / buffer | 32K / 32M |
| Enclosure / installation | IP30; desktop or 19-inch 1U rack |
| Dimensions | 440 × 290 × 44.5 mm |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |
Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2854GM managed PoE switch | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |

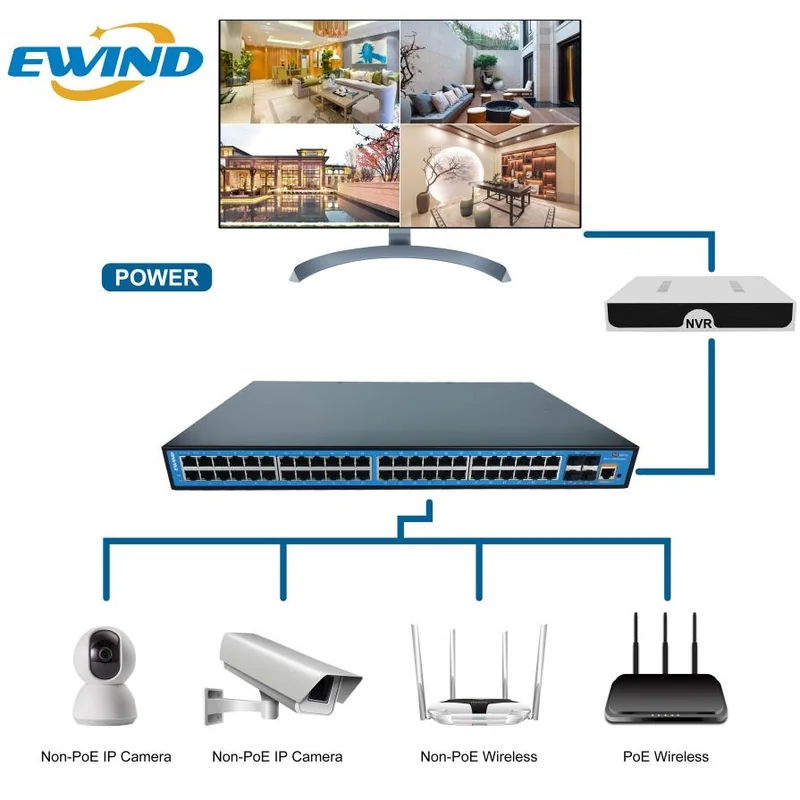

Applications
High-density managed PoE access with multi-rate fiber uplinks.
EW-S2854GM Resources
Datasheet and configuration information for this product are available from the EWIND team.
