Model: EW-AP7360

2.4G & 5.8G 3600Mbps Wi-Fi 7 Ceiling Wireless AP

Wi-Fi 7 dual-band 2.4GHz and 5GHz operation
688Mbps on 2.4GHz plus 2882Mbps on 5GHz
Up to 128 concurrent users and 3600Mbps aggregate rate
2.5Gbps WAN with 802.3at PoE and 1Gbps LAN

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-AP7360 is a Wi-Fi 7 ceiling access point with dual-band 2.4GHz and 5GHz radios, 3600Mbps aggregate throughput, 128-user capacity and a 2.5Gbps PoE uplink for indoor deployments.

Wi-Fi 7 performance

2.4GHz and 5GHz radios deliver up to 3600Mbps combined throughput.

2.5Gbps PoE uplink

The WAN port supports 10/100/1000/2500Mbps and 802.3at PoE.

128-user capacity

Supports up to 128 concurrent users for indoor shared spaces.

MLO and 4096QAM

Multi-Link Operation, 4096QAM and managed SSID/VLAN controls support high-density coverage.

Product technical specifications
Specification	Details
Wireless standard	2.4GHz 802.11b/g/n/ax/be up to 688Mbps; 5GHz 802.11a/n/ac/ax/be up to 2882Mbps
Frequency	2.4GHz–2.484GHz and 5.150GHz–5.825GHz
Antennas	2.4GHz: 2 × 4dBi; 5GHz: 2 × 4dBi

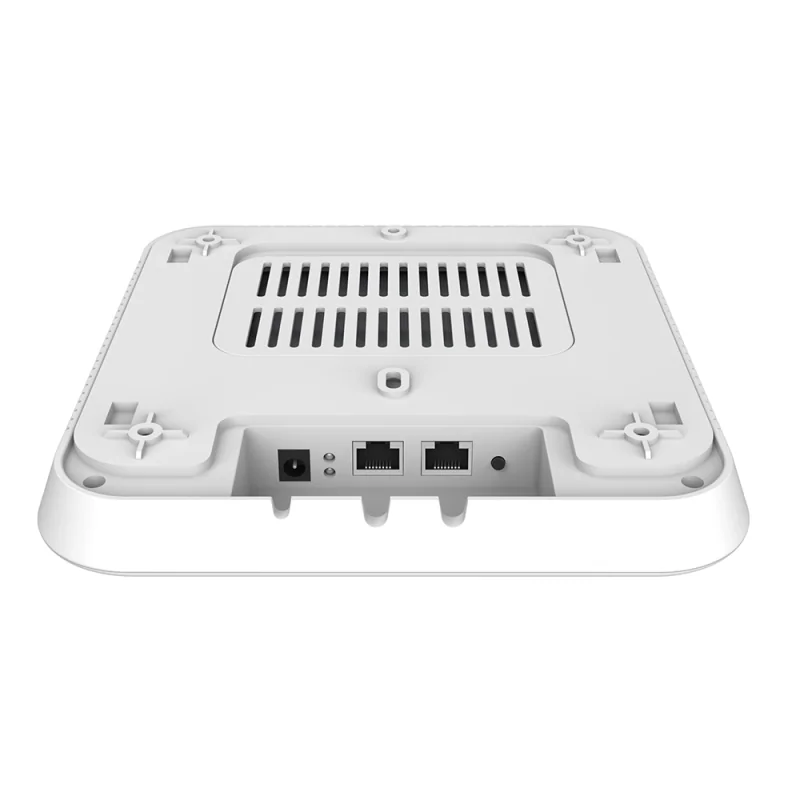

Ethernet	1 × 10/100/1000/2500Mbps WAN with 48V PoE; 1 × 10/100/1000Mbps LAN
Power	802.3at PoE or DC12V 2A; maximum consumption ＜24W
Capacity	128 concurrent users maximum; 100m LOS wireless coverage listed in the source
Wi-Fi 7 functions	4096QAM, MLO, enhanced MU-MIMO, seamless roaming, client isolation and adjustable RF power
Network modes	Gateway, repeater and AP modes; DHCP, static IP and PPPoE
Management	English/Chinese web remote management, AC controller management and configuration backup/restore
Dimensions	304 × 181 × 88mm
Environment	Operating −20℃ to 55℃; storage −40℃ to 70℃; operating humidity 10%–90% RH, non-condensing
Protection and compliance	ESD air/contact ±8kV/±6kV; surge 2kV line-to-ground and 1kV line-to-line; CCC, CE, FCC and RoHS
