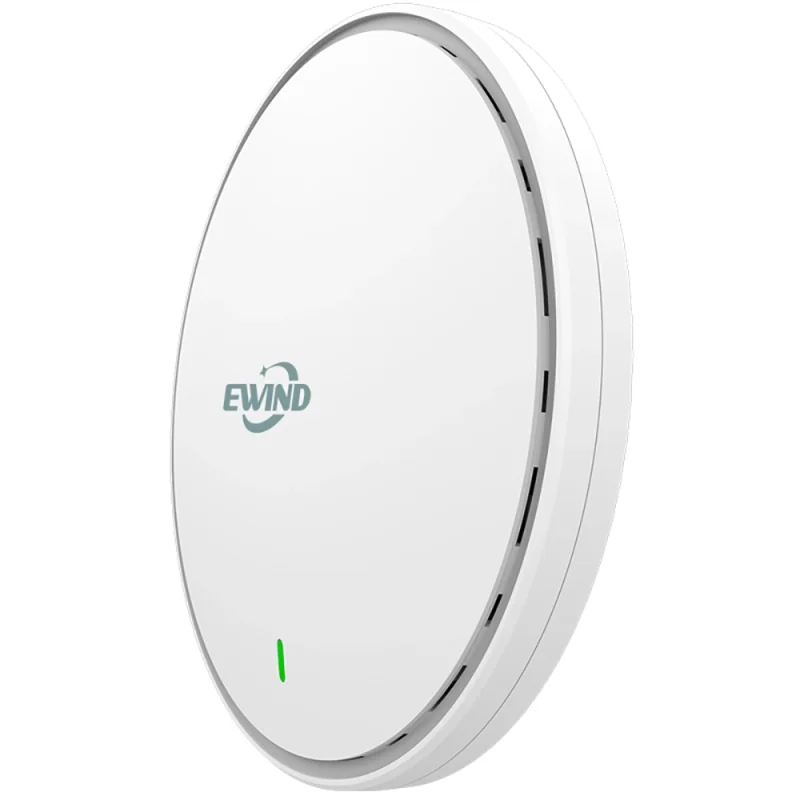

Model: EW-AP5135

2.4G & 5.8G 1350Mbps Ceiling Mount Dual-Band Wireless AP

Wi-Fi 5 dual-band 2.4GHz and 5GHz operation
450Mbps on 2.4GHz plus 866Mbps on 5GHz
Up to 128 concurrent users and 1350Mbps aggregate rate
1 × 10/100/1000Mbps WAN/LAN with 48V 802.3af PoE

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-AP5135 is a Wi-Fi 5 ceiling access point with dual-band 2.4GHz and 5GHz radios, 1350Mbps aggregate throughput, 128-user capacity and flexible PoE or DC powering for indoor deployments.

Dual-band Wi-Fi 5

2.4GHz and 5GHz radios deliver up to 1350Mbps combined throughput.

128-user capacity

Supports up to 128 concurrent users for indoor shared spaces.

PoE or DC power

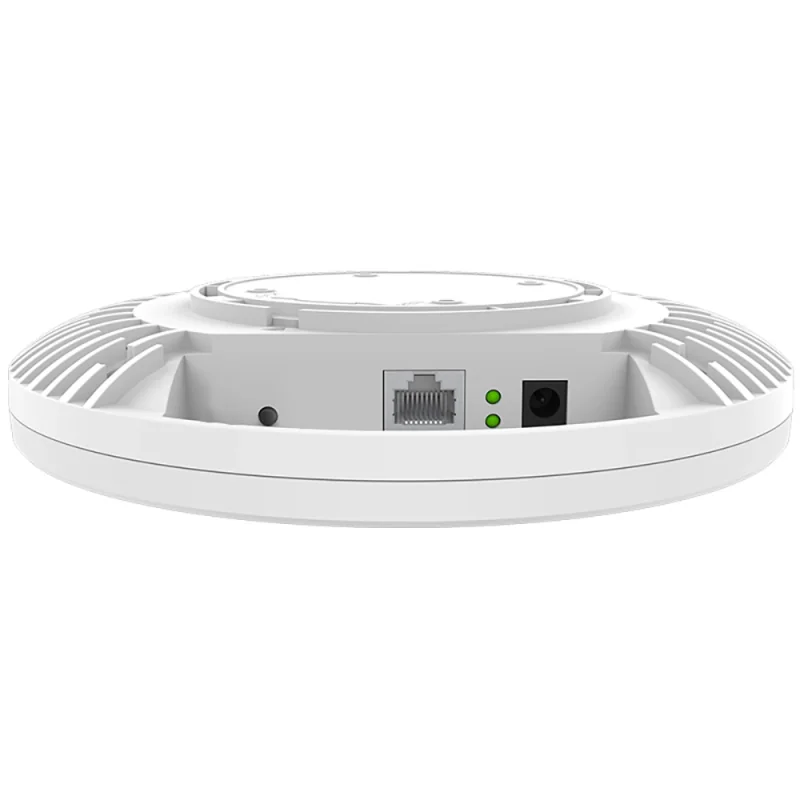

One Gigabit WAN/LAN port supports 48V 802.3af PoE or DC12V 1A.

Managed coverage

Watchdog, roaming, VLAN, SSID controls and AC-controller management support stable deployment.

Product technical specifications
Specification	Details
Wireless standard	2.4GHz 802.11b/g/n up to 450Mbps; 5GHz 802.11a/n/ac up to 866Mbps
Frequency	2.4GHz–2.484GHz and 5.150GHz–5.825GHz
Antennas	2.4GHz: 3 × 4dBi; 5GHz: 2 × 4dBi
Ethernet	1 × 10/100/1000Mbps WAN/LAN
Power	802.3af PoE 48V or DC12V 1A; maximum consumption ＜12W
Capacity	128 concurrent users maximum; 100m LOS wireless coverage listed in the source
Wireless functions	Multiple SSID, hidden SSID, seamless roaming, client isolation, adjustable RF power and MAC filtering
Network modes	Gateway, repeater and AP modes; DHCP, static IP and PPPoE
Management	English/Chinese web remote management, AC controller management and configuration backup/restore

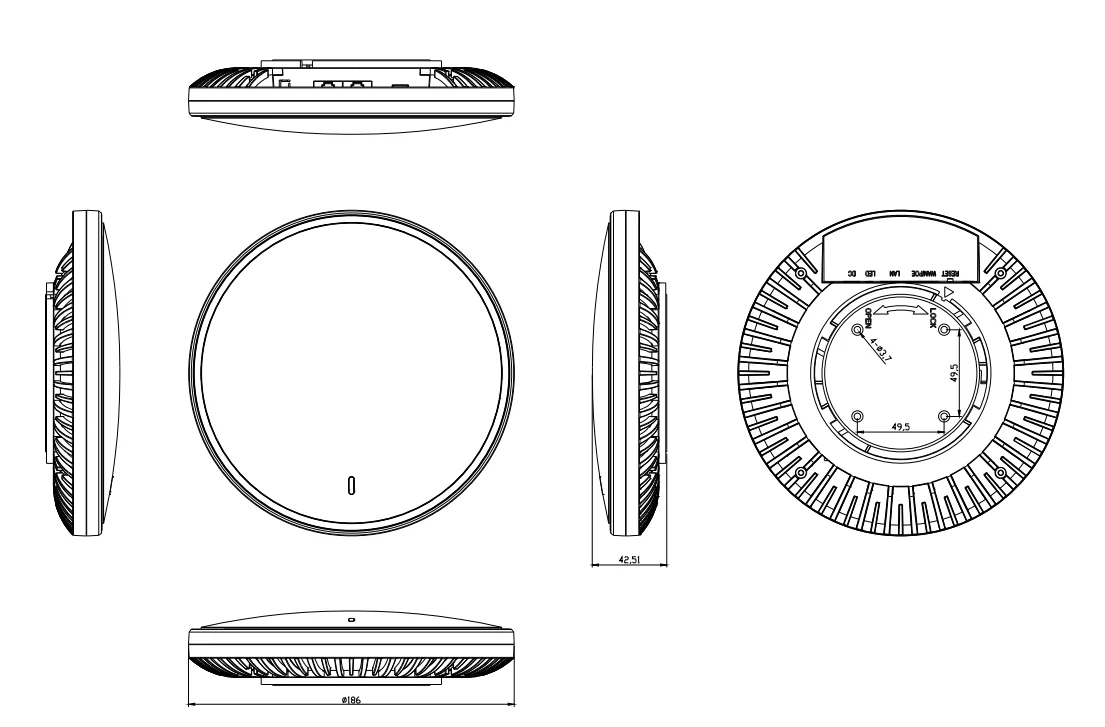

Dimensions	Ø186 × 42.51mm; source drawing also shows 49.5mm mounting dimensions
Environment	Operating −20℃ to 55℃; storage −40℃ to 70℃; operating humidity 10%–90% RH, non-condensing
Protection and compliance	ESD air/contact ±8kV/±6kV; surge 2kV line-to-ground and 1kV line-to-line; CCC, CE, FCC and RoHS
