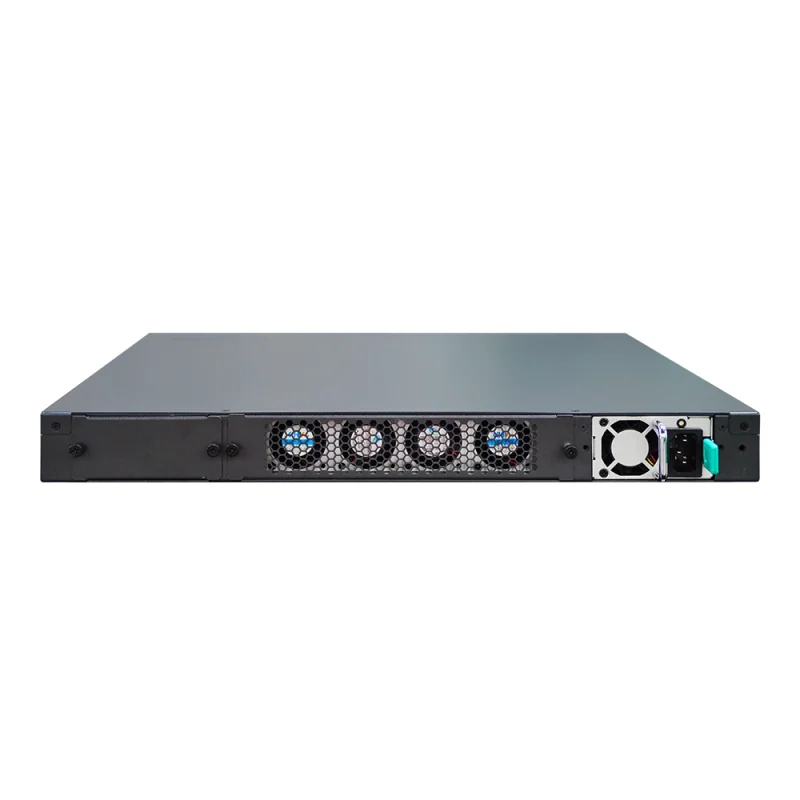

Model: EW-S53952QM

48-Port 10G L3 Fiber Switch with 4 100G Uplinks

48 × 1/10G fiber ports + 4 × 40/100G uplinks
1.76 Tbps switching capacity · 1,309.5 Mpps
IPv4 static routing, RIP, OSPF and BGP

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S53952QM combines 48 1/10G fiber ports with four 40/100G uplinks for high-density server access and network aggregation. IPv4 routing, traffic controls and two modular power slots support enterprise and data-center deployments.

10G access, 100G uplinks

Connect high-bandwidth devices through 48 fiber ports and aggregate traffic over four 40/100G uplinks.

Layer 3 control

IPv4 routing, VLAN, ACL and QoS features support segmented networks and controlled traffic flows.

Modular power

Two power slots allow a second module to be specified. The standard package includes one power supply.

Product technical specifications
Specification	Details
Model	EW-S53952QM
Access ports	48 × 1/10G fiber slots
Uplinks	4 × 40/100G fiber slots
Switching capacity	1,760 Gbps
Forwarding rate	1,309.5 Mpps
MAC address table	112K entries
IPv4 routing	Static/default routes, RIP v1/v2, OSPF and BGP
Management interfaces	1 console, 1 management port and 1 USB port
Power configuration	2 modular slots; 1 power supply included by default
Power rating / input	500W; 100–240V AC, 50/60Hz
Dimensions / weight	440 × 410 × 44 mm; <10kg
Operating environment	0 to +50°C; 10–90% RH, non-condensing
Warranty	3 years
