Model: EW-S53928QM

28-Port Layer 3 Fiber Switch with 100G Uplinks

24 × 1G/10G fiber ports + 4 × 40G/100G uplinks
1280Gbps switching capacity; 952.3Mpps forwarding
IPv4 static routing, RIP, OSPF and BGP
Two power slots; one supply fitted by default

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S53928QM combines 24 1G/10G fiber access ports with four 40G/100G uplinks for enterprise aggregation and data-center access. Layer 3 routing, VLAN and traffic policies, multiple management interfaces and two modular power slots support high-bandwidth network deployments.

10G access, 100G uplinks

24 access connections and four high-capacity uplinks.

1280Gbps switching

952.3Mpps forwarding and a 112K MAC table.

Layer 3 control

Routing, VLANs, ACLs, QoS and access authentication.

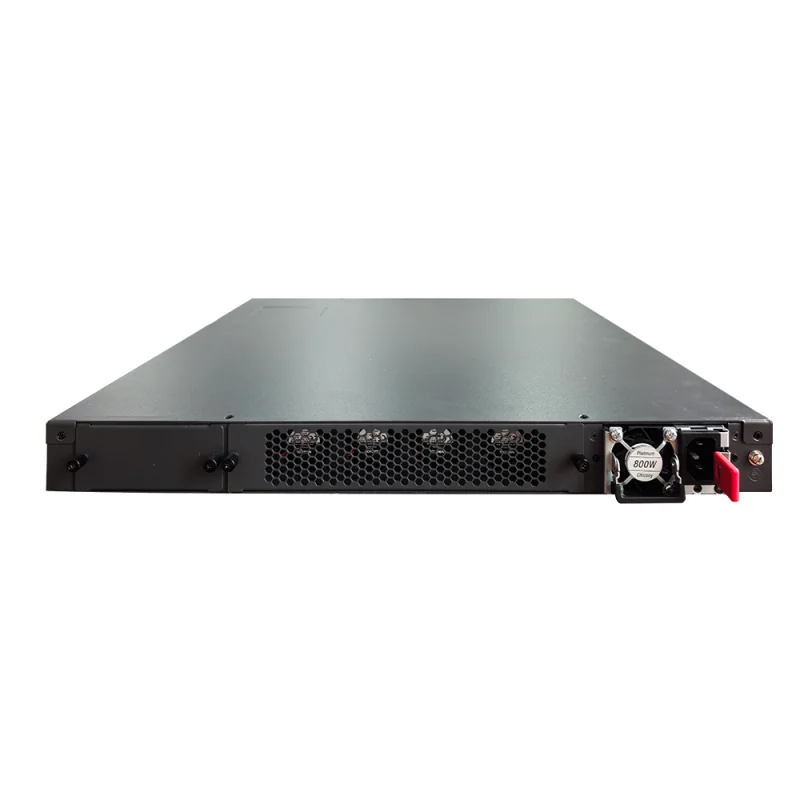

Modular power

Two supply slots with one power supply included.

Product technical specifications
Specification	Details
Access ports	24 × 1G/10G fiber slots
Uplinks	4 × 40G/100G fiber slots
Management interfaces	1 console + 1 management port + 1 USB
Switching capacity	1280Gbps
Forwarding rate	952.3Mpps
MAC address table	112K entries
Power slots	2; one supply installed by default
Power input	100–240V AC, 50–60Hz
Dimensions (W × D × H)	440 × 410 × 44mm
Weight	<10kg
Operating temperature	0°C to +50°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

IPv4 routing and multicast

Inter-VLAN routing, multiple IP addresses, default and static routes, RIP v1/v2, OSPF and BGP. IGMP v1/v2, IGMP snooping and IGMP proxy. DHCP server, client, relay and snooping.

VLANs and redundant paths

4K VLAN support with port-, MAC-, protocol- and IP-subnet-based VLANs plus voice VLAN. Static aggregation, LACP and cross-device aggregation. STP/RSTP/MSTP, BPDU/root protection and ERPS.

QoS and security

MAC/IP ACLs, 802.1p CoS marking, eight queues and SP/WRR/SP+WRR scheduling. 802.1X, RADIUS, MAC authentication, portal authentication, port isolation, storm suppression and ARP binding/proxy.

Administration

Console and SSH CLI, HTTPS web interface, SNMP v1/v2/v3, LLDP, NTP, system logs and syslog. Port mirroring, user privilege controls and factory reset. IPv6 diagnostic tools include ping, traceroute and ICMP.

Power and environment

Two modular power slots; default package includes one supply. The datasheet lists a 500W power rating. Operating humidity: 10–90%; storage: −40°C to +70°C and 5–90% RH, non-condensing. Listed lightning protection: 6kV.
