Model: EW-2936GM-8GF-AP

36-Port Managed PoE Switch with 4 x 10G SFP+

24 x 10/100/1000M PoE ports, 8 x 100/1000M SFP slots and 4 x 1/2.5/10G SFP+ uplinks
IEEE 802.3af/at PoE on ports 1–24, up to 30W per port and 400W total output on the standard model
598Gbps non-blocking switching capacity, 107.14Mpps forwarding and 32K MAC table
L2+ management with VLAN, QoS, STP/RSTP/MSTP, ERPS, IPv4/IPv6 management and static routing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

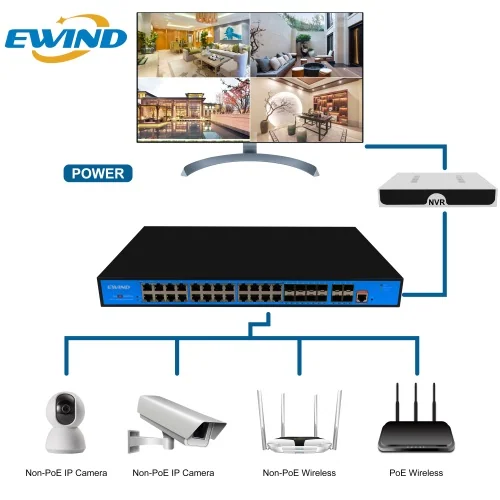

EW-2936GM-8GF-AP is an L2+ managed aggregation switch for high-density PoE access. Twenty-four Gigabit PoE ports power edge devices, eight SFP slots aggregate fiber access and four 1/2.5/10G SFP+ uplinks connect higher-speed networks. Its built-in AC supply and standard 1U rack form support hotels, campuses, factories and small and medium-sized enterprises.

36-port aggregation

Twenty-four Gigabit PoE ports, eight 100/1000M SFP slots and four 1/2.5/10G SFP+ uplinks.

Managed PoE access

IEEE 802.3af/at on ports 1–24, with per-port power status, priority and scheduling.

598Gbps switching

Non-blocking switching with 107.14Mpps forwarding and a 32K MAC table.

L2+ resilience

VLAN, LACP, STP/RSTP/MSTP, ERPS, ACL, QoS and security controls.

Product technical specifications
Specification	Details

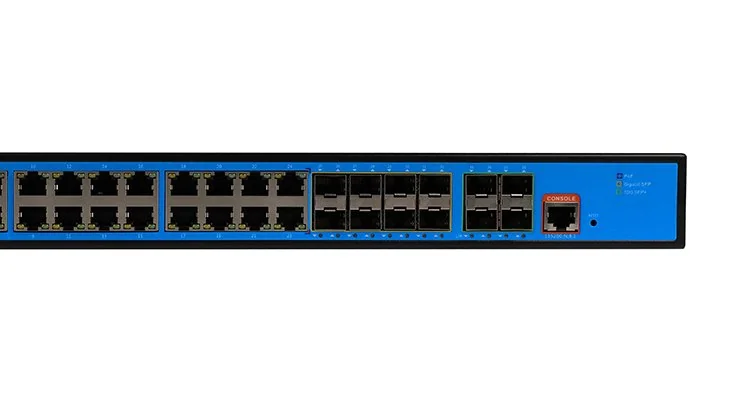

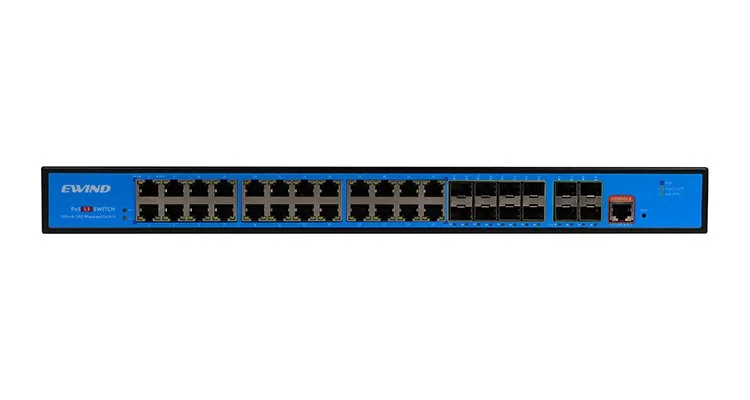

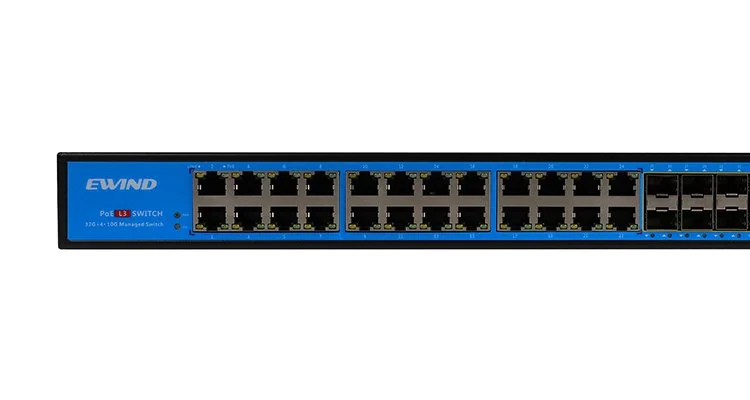

Interfaces	24 x 10/100/1000Base-T/TX PoE; 8 x 100/1000Base-X SFP; 4 x 1/2.5/10G SFP+ uplinks; 1 x RS232 console (115200, N,8,1)
Managed type	L2+ with IPv4/IPv6 management and static/default routing
PoE	IEEE 802.3af/at on ports 1–24; up to 30W per port; 400W total on the standard model
Switching performance	Store-and-forward; 598Gbps non-blocking capacity; 107.14Mpps forwarding; 32M buffer
Fiber uplinks	1G/2.5G/10G SFP interfaces; fiber modules are not included and are ordered separately
Power	Built-in AC 100–220V, 50–60Hz supply; standby under 15W; full load under 400W on the standard model
Operating environment	−20 ~ +55°C; 5% ~ 90% RH, non-condensing
Storage environment	−40 ~ +80°C; 5% ~ 95% RH, non-condensing
Protection	IP30; IEC61000-4-2 ESD ±8kV contact / ±15kV air; surge protection up to ±4kV at ports

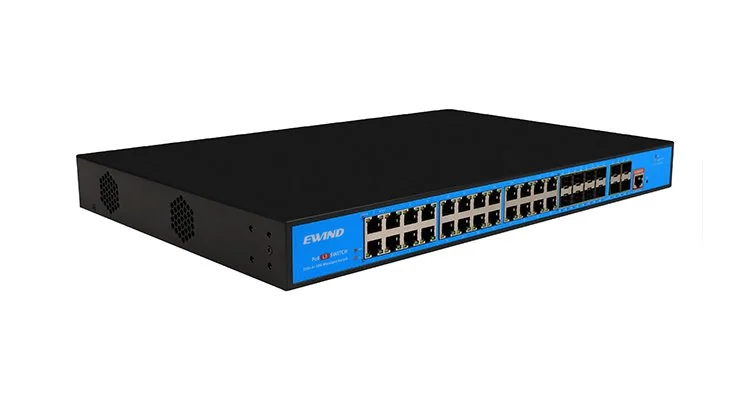

Mechanical	440 x 290 x 44.5mm; net weight under 4.6kg; desktop or 19-inch 1U cabinet installation
Compliance	CCC, CE mark, CE/LVD EN60950, FCC Part 15 Class B and RoHS
Warranty	3 years, lifelong maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber and uplink planning

The switch provides eight 100/1000M SFP slots and four 1/2.5/10G SFP+ uplinks. Single-mode, multimode, single-fiber, dual-fiber and LC module options are listed in the source and ordered separately. Source-listed reaches include 10G multimode up to 300m, 1.25G multimode up to 500m, 1310nm single-mode up to 40km and 1550nm single-mode up to 120km.

PoE management

The source lists total PoE power limits, per-port allocation, AF/AT enable or disable, priority configuration, per-port status, delayed start and time scheduling.

VLAN, routing and redundancy

Port, protocol and IEEE 802.1Q VLAN support includes Access, Trunk, Hybrid and QinQ. IPv4/IPv6 management, static/default routing, LACP, STP/RSTP/MSTP and G.8032 ERPS support resilient networks.

Multicast and QoS

IGMP/MLD Snooping, multicast VLAN, up to 1024 multicast groups, eight output queues, 802.1p/DSCP mapping, SP/WRR scheduling, traffic mirroring and flow-based limits are listed in the source.

Security and management

ACL filtering from L2 to L4, 802.1X, AAA/RADIUS, SSH2, SSL, port isolation, IP source protection, ARP inspection, DHCP Snooping/Relay and DoS protection are supported. Management includes CLI, HTTPS, SNMP v1/v2c/v3, NTP, LLDP, file transfer and NMS.

Installation and protection

The standard 1U chassis uses an integrated AC supply and supports desktop or 19-inch cabinet installation. It includes one-button reset, IP30 protection and the source-listed ESD and surge levels.
