Fast Ethernet extension
One 10/100Mbps PoE input feeds two 10/100Mbps outputs.

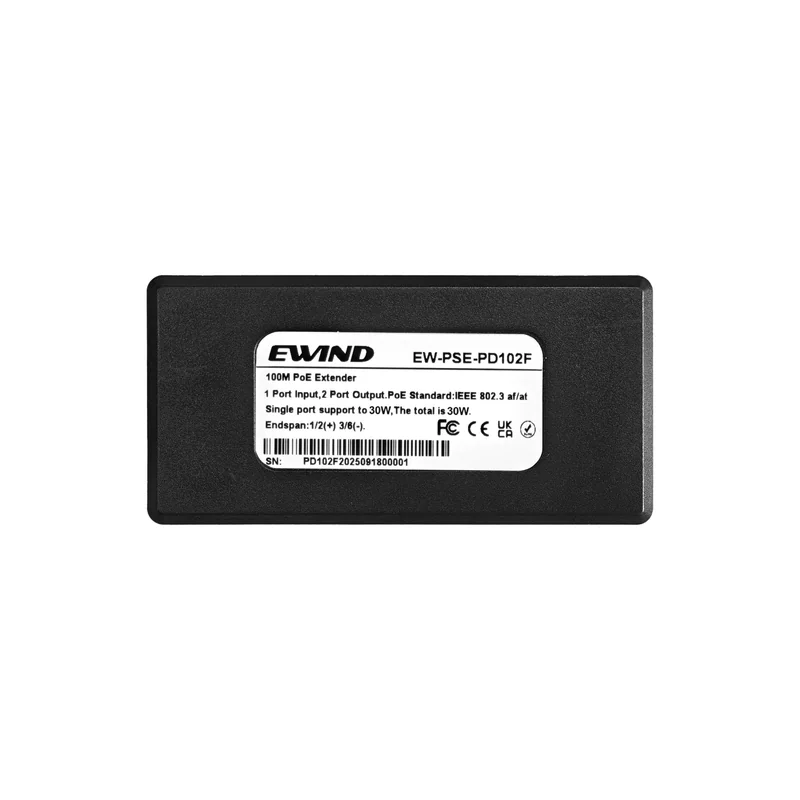

Model: EW-PSE-PD102F

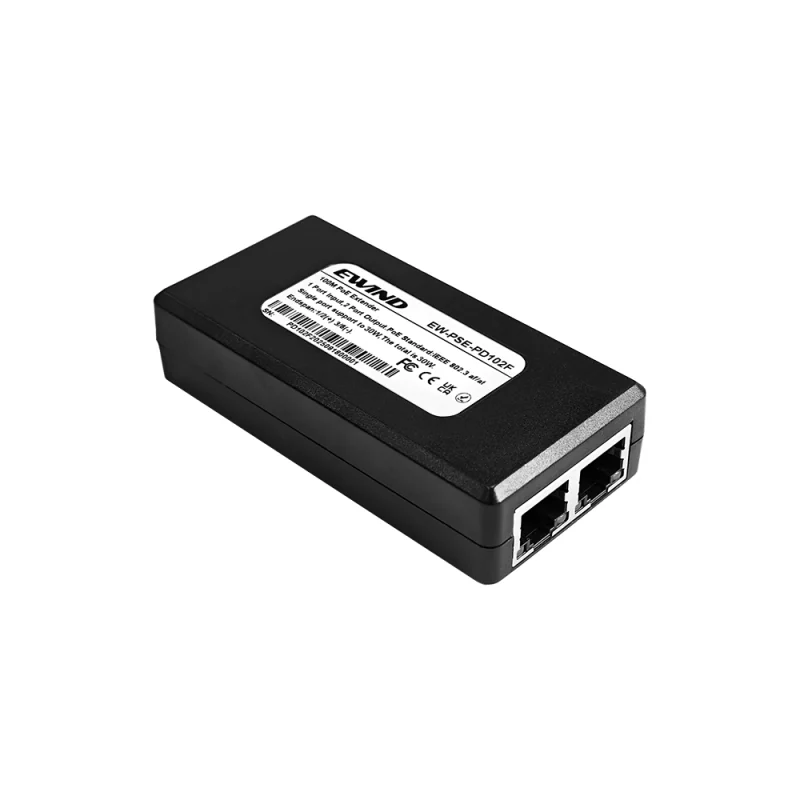

2-Port Fast Ethernet PoE Extender
- 1 × 10/100Mbps PoE input and 2 × 10/100Mbps outputs
- IEEE 802.3af/at compatible
- 30W maximum input and 30W shared output
- Up to 100m per segment over Cat5e/Cat6
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE-PD102F extends a 10/100Mbps PoE link to two powered outputs without a local power supply. It accepts one IEEE 802.3af/at PoE input, regenerates data and power for two outputs, and can be cascaded for longer cable runs.
No local supply
The extender draws power from the incoming PoE link.
Cascadable reach
Each extender adds up to 100m with suitable cabling.
| Specification | Details |
|---|---|
| PoE input | 1 × 10/100Mbps RJ45 |
| PoE outputs | 2 × 10/100Mbps RJ45 |
| PoE standard | IEEE 802.3af/at |
| Maximum input power | 30W |
| Maximum output power | 30W shared; intelligently allocated |
| Power pins | Input and output: 1/2 (+), 3/6 (−) |
| Transmission distance | Cat5e/Cat6 ≤100m per segment; cascade supported |
| Enclosure | Engineering plastic |
| Dimensions (L × W × H) | 88.5 × 44 × 22mm |
| Weight | 55g |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE-PD102F 2-port Fast Ethernet PoE extender | 1 | SET |
Applications

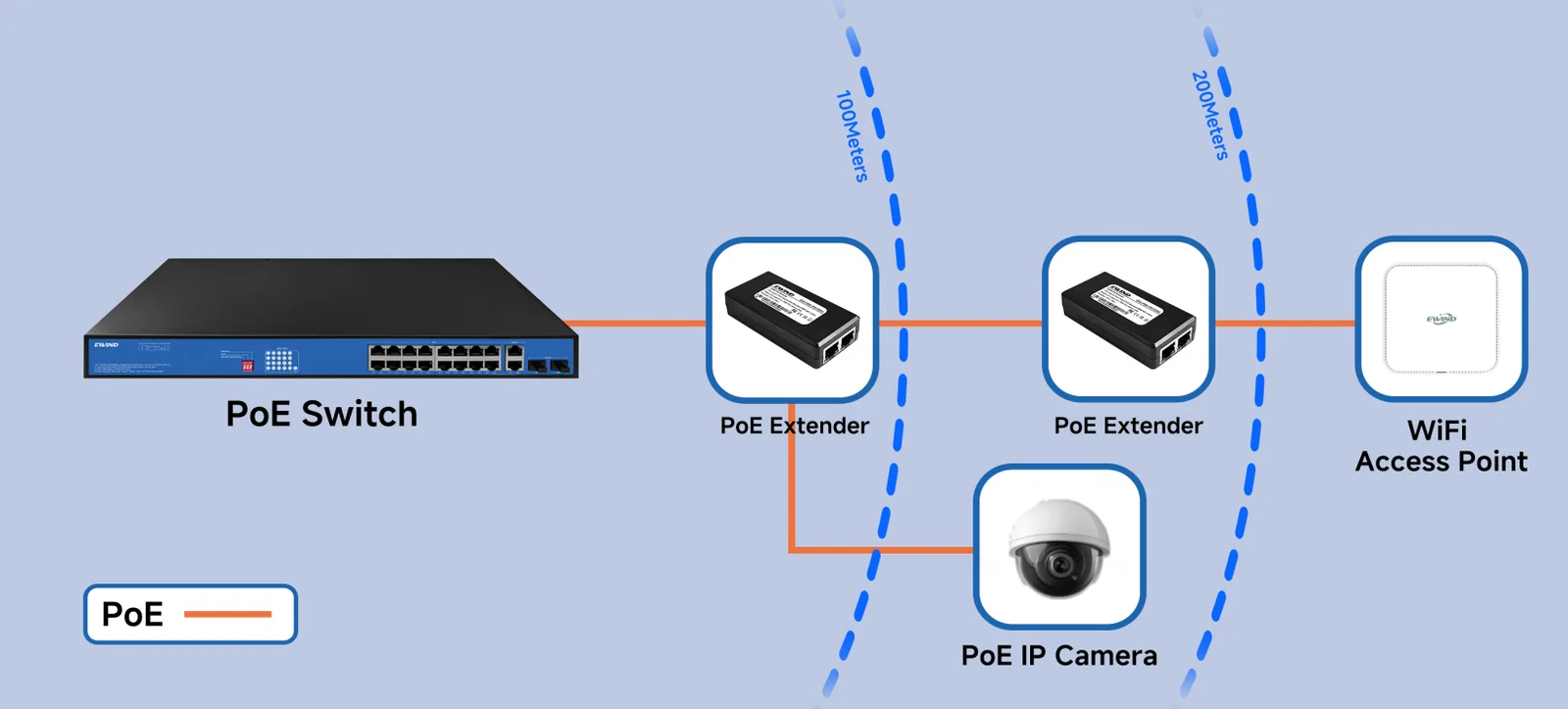

Extended PoE connections for IP cameras, wireless access points and IP phones.
