16 independent channels
One LAN input and one powered output per connection.

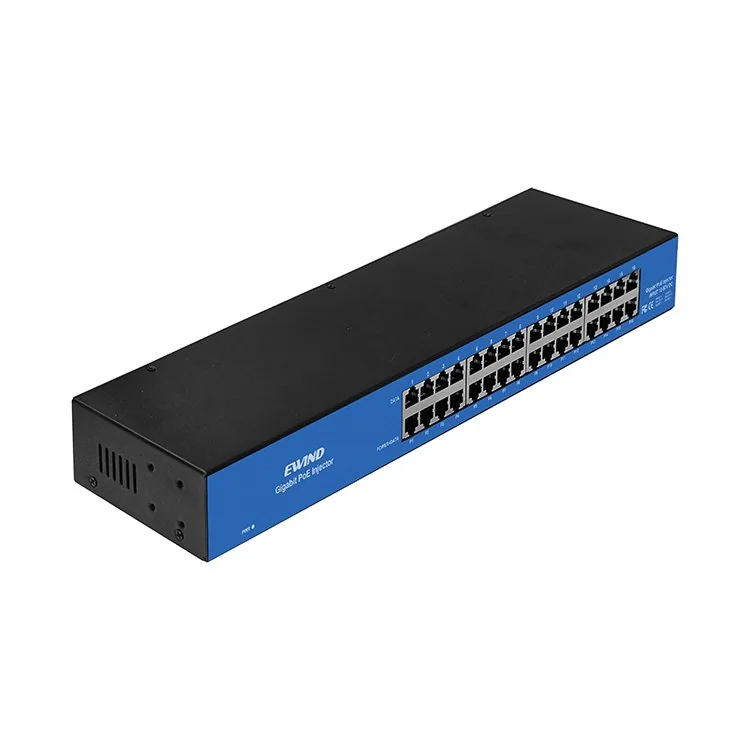

Model: EW-PSE316CG
16-Channel Gigabit DC PoE Injector

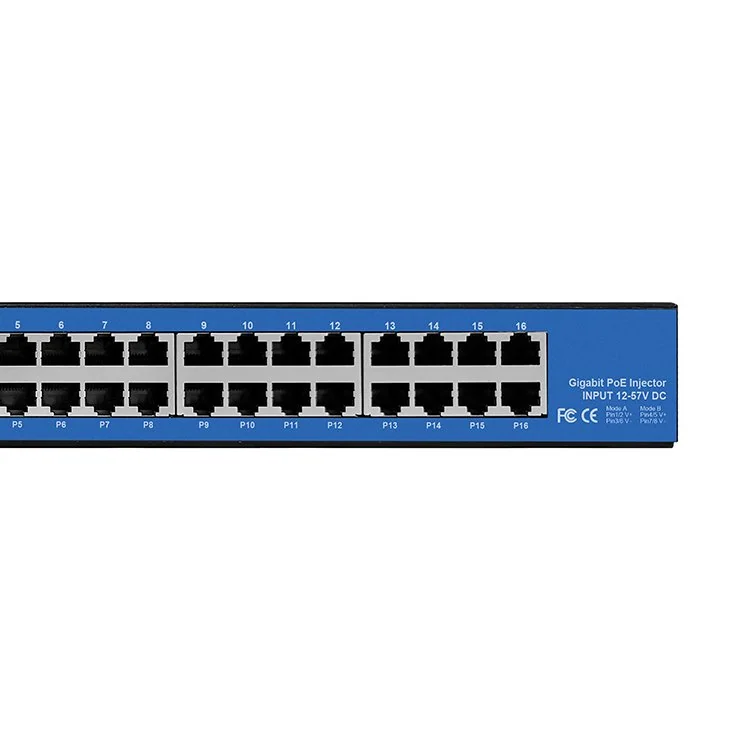

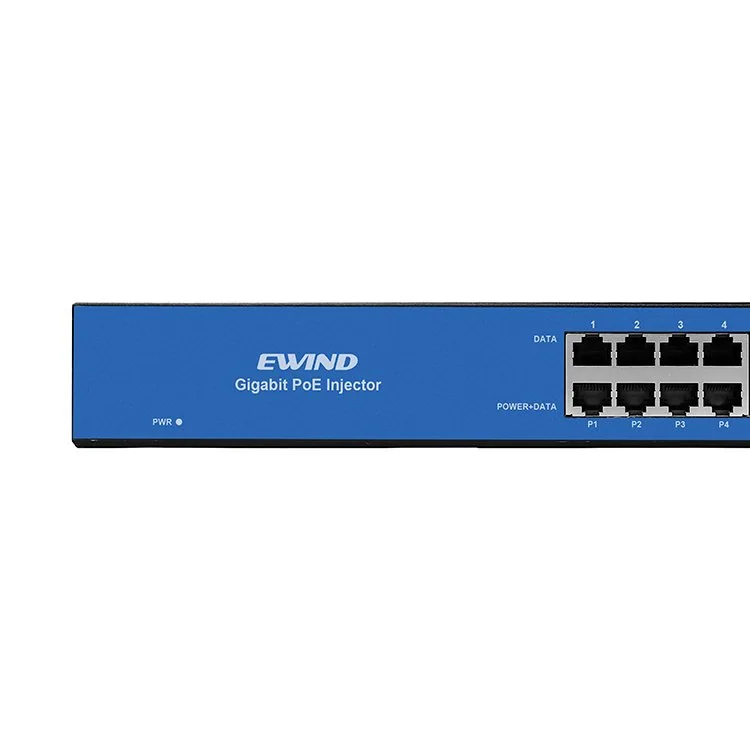

- 16 LAN inputs and 16 powered RJ45 outputs
- 10/100/1000Mbps data connections
- 12–57V DC input; 1A limit per channel
- Mode B pin assignment; optional Mode A
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE316CG adds DC power to 16 independent Gigabit Ethernet connections. Each channel pairs a LAN input with a powered RJ45 output, using an external 12–57V DC supply. Its passive output follows the supply voltage, so the power source and pin assignment must match the connected devices.
External DC power
Passive 12–57V output follows the connected power supply.

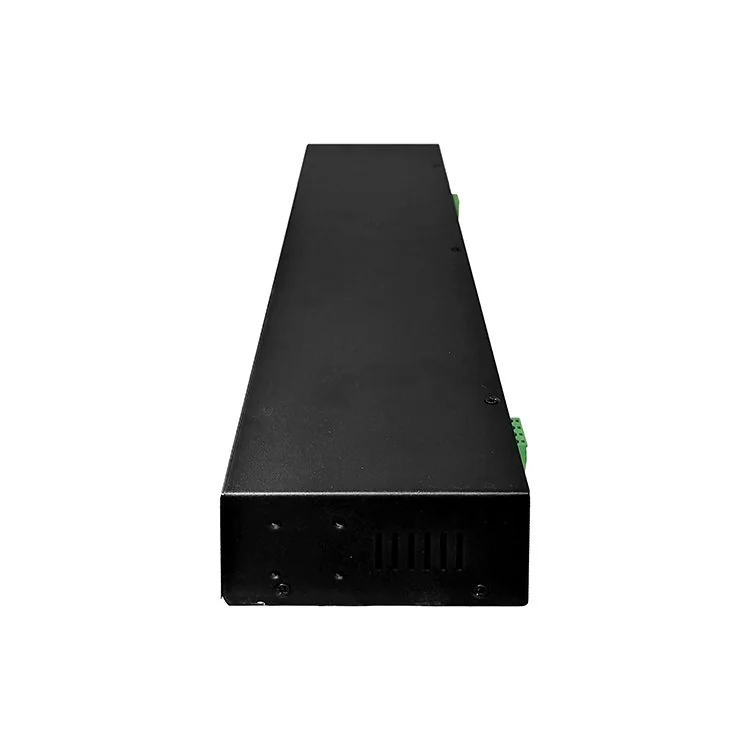

Rack-width enclosure
440mm-wide fanless metal housing for centralized cabling.
| Specification | Details |
|---|---|
| Data ports | 16 × 10/100/1000Mbps RJ45 LAN inputs |
| Powered ports | 16 × 10/100/1000Mbps RJ45 PoE outputs |
| DC input | 12–57V DC; 2.1mm DC connector |
| DC output | Follows input voltage; 1A limit per channel |
| Default pin assignment | Mode B: pins 4/5 (+), 7/8 (−) |
| Dimensions (W × D × H) | 440 × 100 × 45mm |
| Weight | 1kg, excluding power supply |
| Operating temperature | −20°C to +55°C |
| Warranty | 1 year |

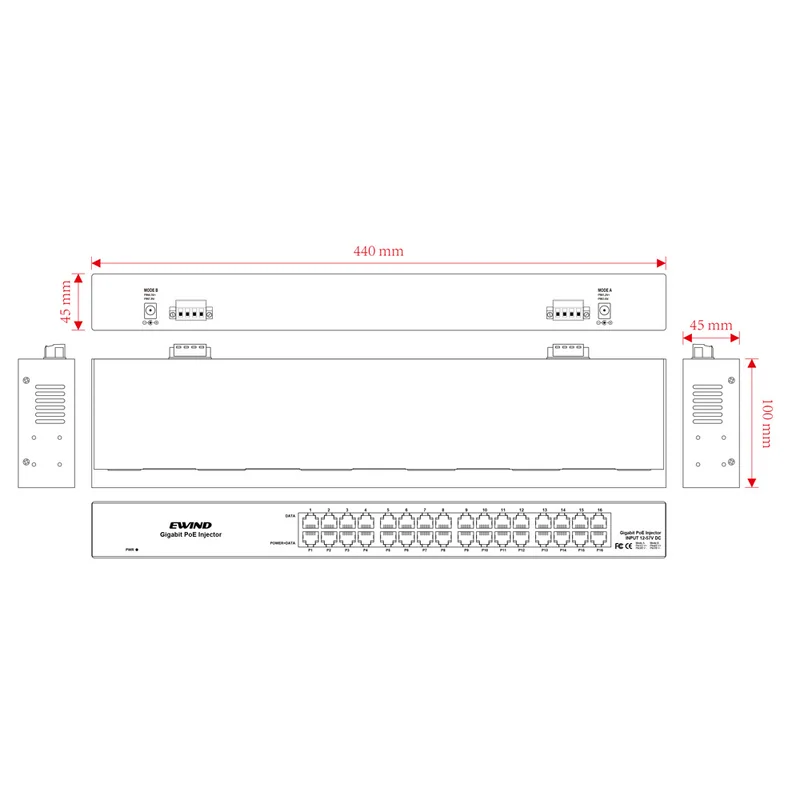

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE316CG 16-channel Gigabit DC PoE injector; power supply excluded | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
