30W PoE output
Power a compatible endpoint over the Ethernet cable.
Model: EW-PSE101F-AC-AT
30W Fast Ethernet PoE Injector with AC Input
- 10/100Mbps single-port PoE injector
- IEEE 802.3af/at End-span power delivery
- 30W total PoE output

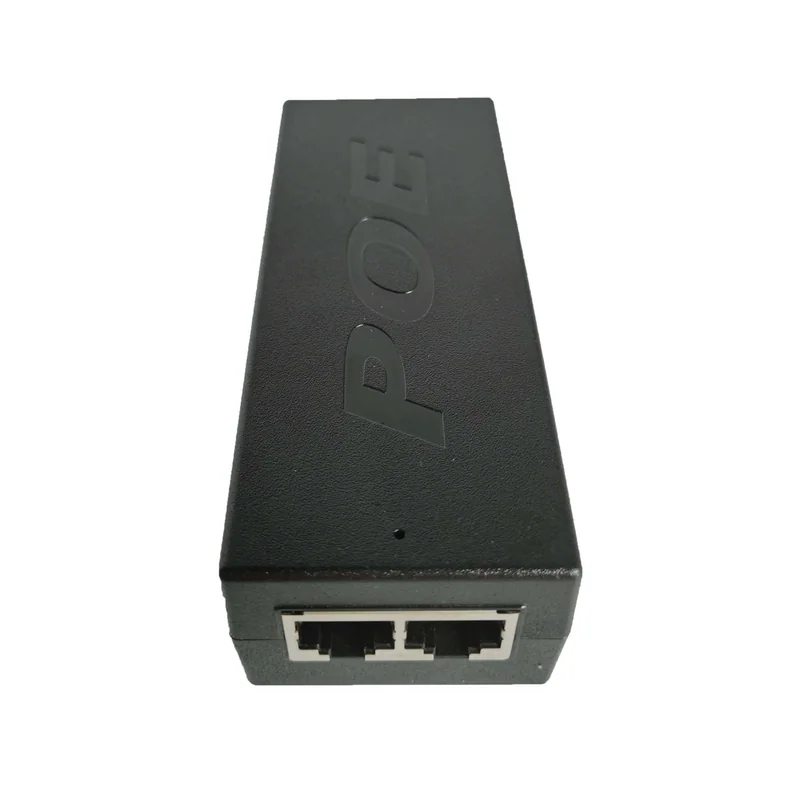

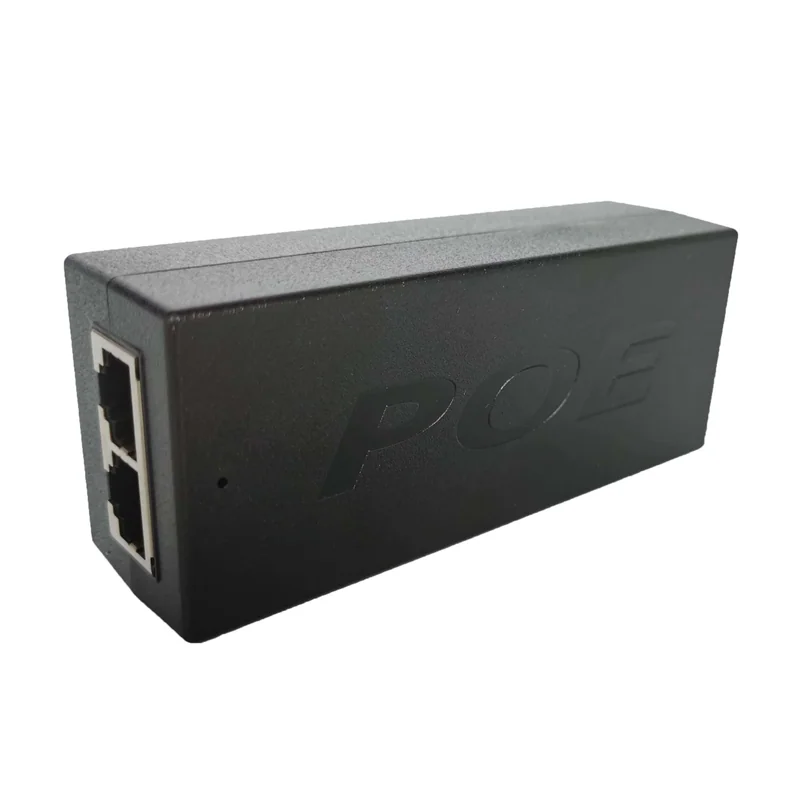

- AC input with two RJ45 copper ports
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101F-AC-AT is a single-port 10/100Mbps IEEE 802.3af/at PoE injector with an AC input and up to 30W output. It adds power to an Ethernet run for access points, VoIP phones and IP cameras without replacing the network switch.
Fast Ethernet
Supports 10/100Mbps data transmission over Cat5 or better cable.
AC powered
Use the built-in AC input where a PoE switch is not available.
Protected design
Thermal protection and status LED support reliable operation.
| Specification | Details |
|---|---|
| Data ports | 2 × 10/100Mbps RJ45 copper ports |
| PoE standard | IEEE 802.3af/at; End-span pair assignment 1/2 and 3/6 |
| PoE output | 30W total |
| Cable medium | 100BASE-TX over Cat5 or better UTP up to 100m |

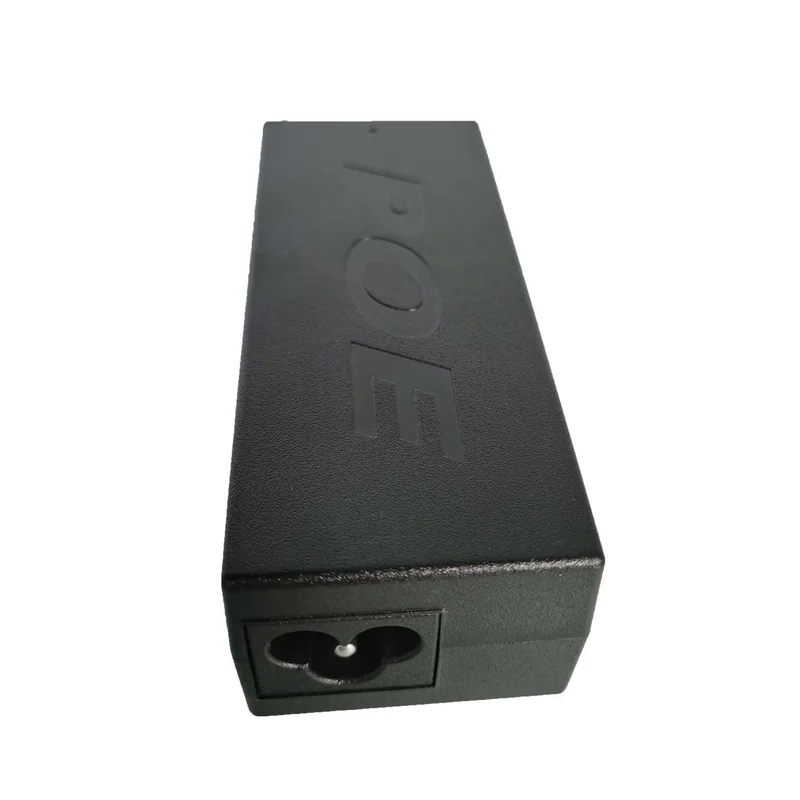

| Input | AC mains input |
| Protection | Thermal protection above 100°C |
| Dimensions / weight | 108 × 44 × 33mm; 0.14kg |
| Operating temperature | −20°C to +55°C |
| Storage temperature | −20°C to +75°C |
| Compliance | CE commercial, FCC Part 15 Class B, RoHS |
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10/100M Single Port PoE Injector AC Input 30W (EW-PSE101F-AC-AT) | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

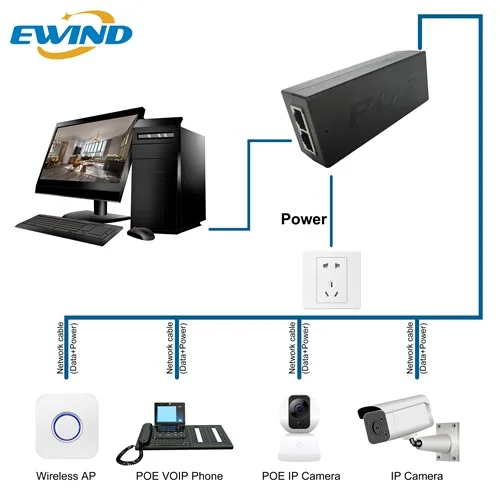

Applications
Wireless access points, PoE VoIP phones and IP camera deployments.
