10G optical connection
An 850nm VCSEL transmitter and PIN detector provide a duplex multimode link.

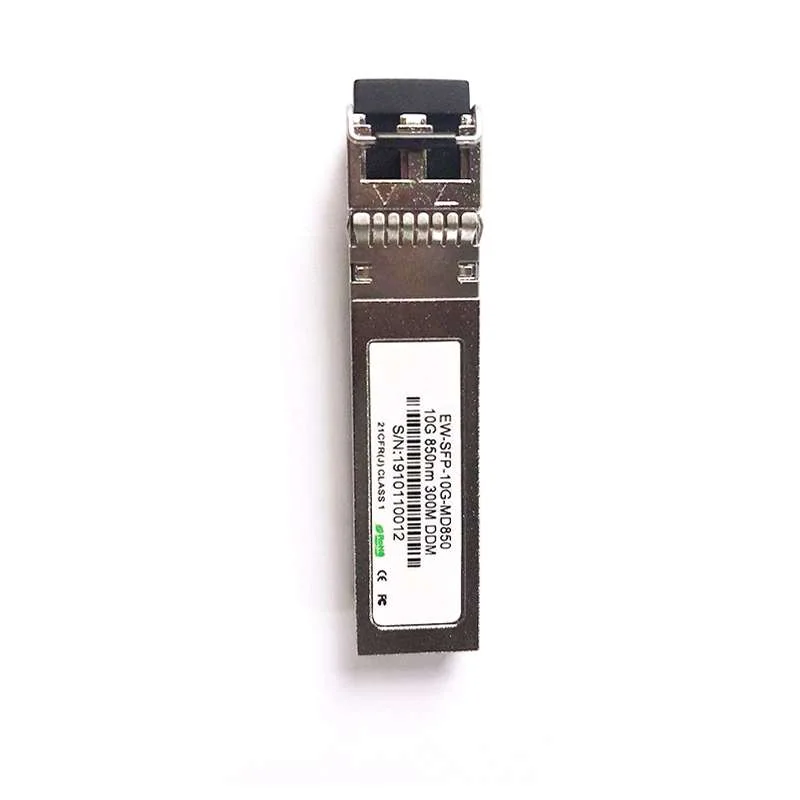

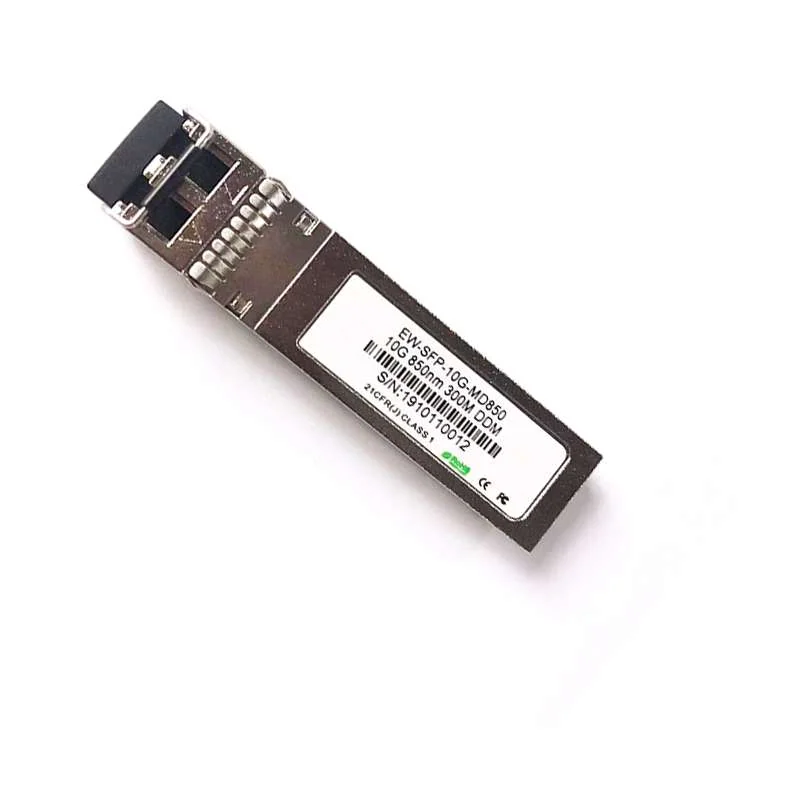

Model: EW-SFP-10G-MD850
10G SFP+ Multimode Transceiver, 850nm, 300m
- 10G SFP+; duplex LC connector
- 850nm multimode fiber
- Up to 300m on 2000MHz·km fiber
- Digital diagnostics; 0 to +70°C operation
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-10G-MD850 connects 10G Ethernet equipment over duplex multimode fiber using an 850nm SFP+ module. It supports up to 300m on 2000MHz·km fiber, LC connectivity and digital diagnostics, with a 0 to +70°C operating range.
Reach matched to fiber
Use 2000MHz·km fiber for up to 300m; other fiber grades have shorter specified distances.
Module monitoring
Digital diagnostics report temperature, voltage, bias current and optical power.
| Specification | Details |
|---|---|
| Form factor | SFP+ |
| Connector | Duplex LC |
| Application | 10GBASE-SR/SW Ethernet |
| Fiber type | Multimode, dual fiber |
| Wavelength | 850nm nominal; 840–860nm range |
| Maximum reach | 300m on 2000MHz·km fiber |
| Operating temperature | 0 to +70°C |
| Supply voltage | 3.15–3.45V |
| Power dissipation | 1W maximum |
| Digital diagnostics | Supported; SFF-8472 |
Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-10G-MD850 10G SFP+, 850nm, 300m, duplex LC | 1 | PC |
