1.25Gbps link
Gigabit-class optical transceiver pair.
Model: EW-SFP-GE-T1310 EW-SFP-GE-R1550
1.25G Single-Fiber BiDi SFP Pair 1310/1550nm 20km
- 1.25Gbps data rate
- Single-mode single-fiber BiDi pair
- Tx1310/Rx1550nm and reciprocal Tx1550/Rx1310nm
- 20km reach with LC connector
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-GE-T1310 and EW-SFP-GE-R1550 are a matched 1.25Gbps single-mode single-fiber SFP pair for 20km LC links, using 1310nm transmit with 1550nm receive at one end and the reciprocal wavelength at the other.
20km reach
Single-mode single-fiber transmission.
BiDi wavelengths
Matched 1310/1550nm transmit and receive directions.
SFP diagnostics
LOS, TX_DISABLE and TX_FAULT options are listed.
| Specification | Details |
|---|---|
| Data rate | 1.25Gbps nominal |
| Optical interface | Single-mode single-fiber; LC connector |
| Wavelength pair | EW-SFP-GE-T1310: Tx1310/Rx1550nm; EW-SFP-GE-R1550: Tx1550/Rx1310nm |
| Transmission distance | 20km |
| Transmit power | −9 to −3dBm |
| Receiver sensitivity | Up to −22dBm; receiver overload −3dBm |
| Supply | 3.15–3.45V; power dissipation up to 1W |
| Operating temperature | 0°C to +70°C |
| Compatibility | IEEE 802.3z and ANSI Fibre Channel compatible |
| Controls | LOS, TX_DISABLE and TX_FAULT |

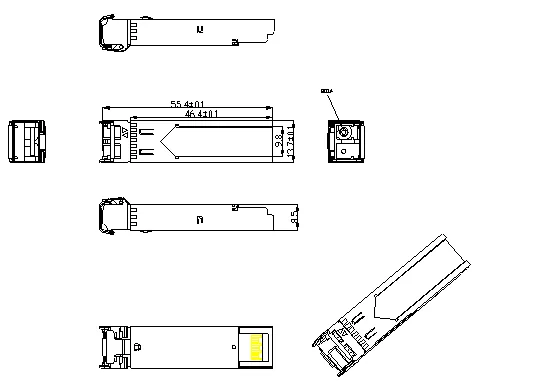

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-GE-T1310 + EW-SFP-GE-R1550 matched pair, 1.25G, single-mode single-fiber, 20km, LC | 1 | PAIR |
