1.25Gbps link
Gigabit-class optical transceiver for industrial and enterprise switches.
Model: EW-SFP-GE-MD850
1.25G Multimode Dual-Fiber SFP Module 850nm 500m
- 1.25Gbps data rate
- 850nm multimode dual-fiber optics
- 500m reach with LC connector
- 0°C to +70°C operating case temperature
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-GE-MD850 is a 1.25Gbps 850nm multimode dual-fiber SFP transceiver for links up to 500m with an LC connector.
500m multimode
850nm dual-fiber transmission for short campus and cabinet links.
SFP form factor
Hot-pluggable transceiver with standard electrical controls.
Diagnostics
LOS, TX_DISABLE and TX_FAULT options are listed.
| Specification | Details |
|---|---|
| Data rate | 1250Mbps nominal |
| Optical interface | 850nm multimode dual-fiber; LC connector |
| Transmission distance | 500m |
| Transmit power | −9 to −3dBm |
| Receiver sensitivity | Up to −19dBm; receiver overload −3dBm |
| Supply | 3.15–3.45V; power dissipation up to 1W |
| Operating case temperature | 0°C to +70°C |
| Humidity | 5%–95% RH |
| Compatibility | IEEE 802.3z and ANSI Fibre Channel compatible |
| Controls | LOS, TX_DISABLE and TX_FAULT |

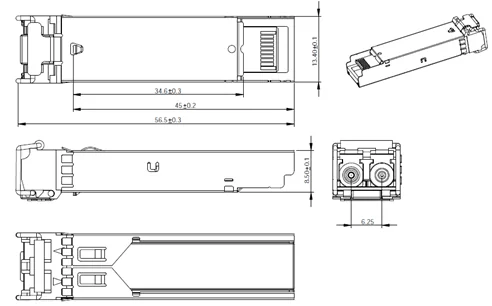

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-GE-MD850, 1.25G multimode dual-fiber, 850nm, 500m, LC | 1 | PCS |
