1.25Gbps link
Gigabit-class optical transceiver for industrial and enterprise switches.
Model: EW-SFP-GE-SD1310
1.25G Single-Mode Dual-Fiber SFP Module 1310nm 20km
- 1.25Gbps data rate
- 1310nm single-mode dual-fiber optics
- 20km reach with LC connector
- 0°C to +70°C operating temperature
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-SFP-GE-SD1310 is a 1.25Gbps 1310nm single-mode dual-fiber SFP transceiver for links up to 20km with an LC connector.
20km reach
1310nm single-mode dual-fiber transmission.
SFP form factor
Standard hot-pluggable transceiver interface.
Signal controls
LOS, TX_DISABLE and TX_FAULT options are listed.
| Specification | Details |
|---|---|
| Data rate | 1.25Gbps nominal |
| Optical interface | 1310nm single-mode dual-fiber; LC connector |
| Transmission distance | 20km |
| Transmit power | −9 to −3dBm |
| Receiver sensitivity | Up to −22dBm; receiver overload −3dBm |
| Supply | 3.15–3.45V; power dissipation up to 1W |
| Operating temperature | 0°C to +70°C |
| Humidity | 5%–95% RH |
| Compatibility | IEEE 802.3z and ANSI Fibre Channel compatible |
| Controls | LOS, TX_DISABLE and TX_FAULT |

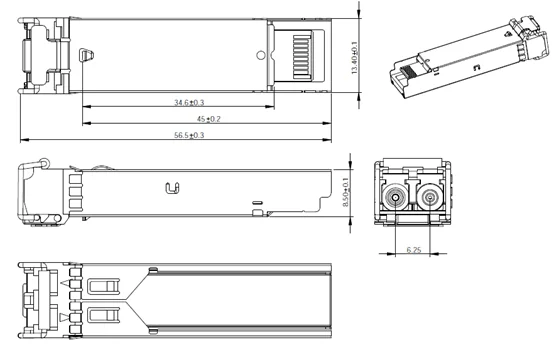

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-SFP-GE-SD1310, 1.25G single-mode dual-fiber, 1310nm, 20km, LC | 1 | PCS |
