30W PoE
Supply an IEEE 802.3af/at endpoint from a low-voltage DC source.

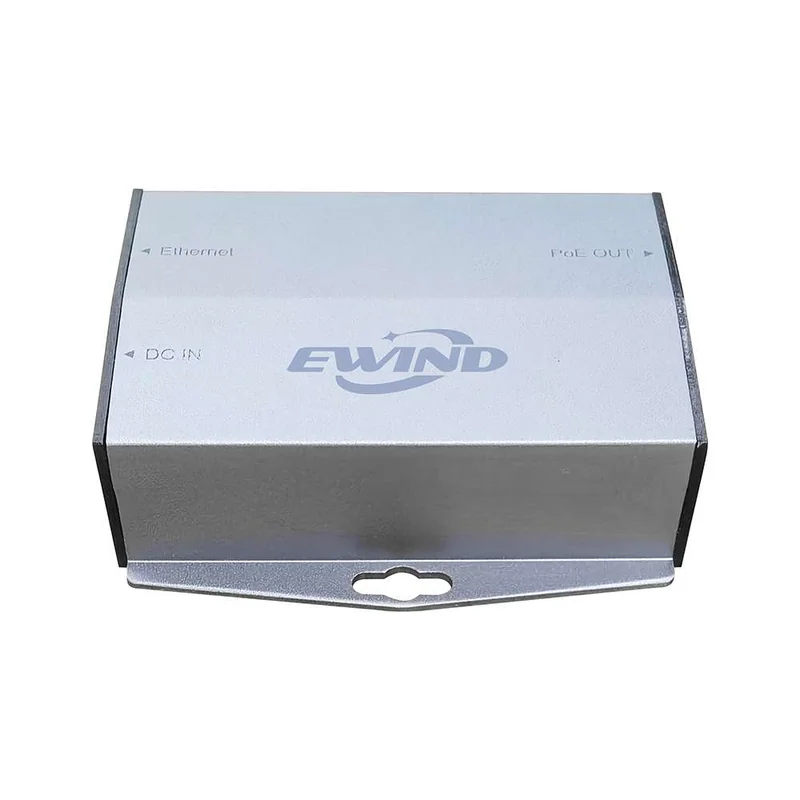

Model: EW-PSE101F-DC-AT
30W Fast Ethernet PoE Injector with 12–32VDC Input
- 10/100Mbps single-port DC PoE injector
- IEEE 802.3af/at mid-span or configurable end-span power
- 30W total power with 15.4W PoE port output
- 12–32VDC input with 44–57VDC PoE output
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101F-DC-AT is a single-port 10/100Mbps IEEE 802.3af/at PoE injector for 12–32VDC power systems. It provides up to 30W total PoE power and 15.4W per port for wireless access points, VoIP phones and IP cameras.
DC installation
Designed for vehicle, cabinet and remote-site power systems.
Fast Ethernet
Pass 10/100Mbps data over Cat5 or better cable up to 100m.
Protected conversion
Thermal, ESD and recovery protections support reliable field operation.
| Specification | Details |
|---|---|
| Data ports | 2 × 10/100Mbps RJ45 copper ports |
| PoE standard | IEEE 802.3af/at; mid-span 4/5 and 7/8 by default; end-span 1/2 and 3/6 configurable |
| PoE output | 15.4W per port; 30W total |
| DC input / output | 12–32VDC input; 44–57VDC PoE output |
| Cable medium | 100BASE-TX over Cat5 or better UTP up to 100m |
| Protection | Thermal protection above 100°C; IEC61000-4-2 ESD protection |
| Dimensions / weight | 80 × 77 × 25mm; 0.13kg |
| Environment | Operating −20°C to +55°C; storage −20°C to +75°C; 10%–90% RH |
| Reliability | MTBF 100,000 hours |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| 100M Single Port DC PoE Injector, 30W (EW-PSE101F-DC-AT) | 1 | PCS |
Applications

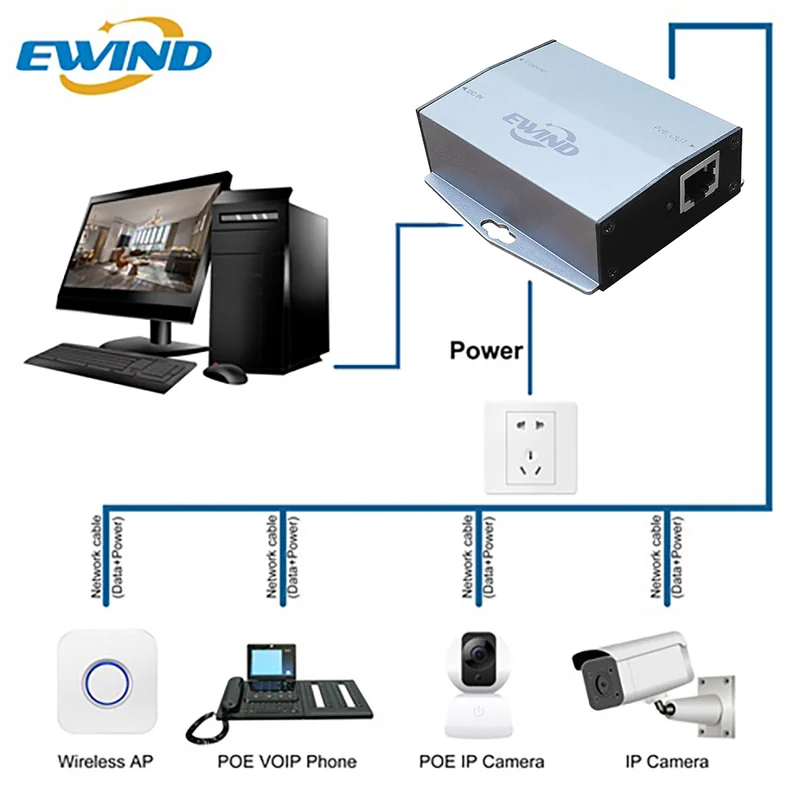

Wireless access points, PoE VoIP phones and IP cameras in low-voltage DC installations.
