Four independent channels
Each LAN input passes data to its corresponding powered output.
Model: EW-PSE304CG

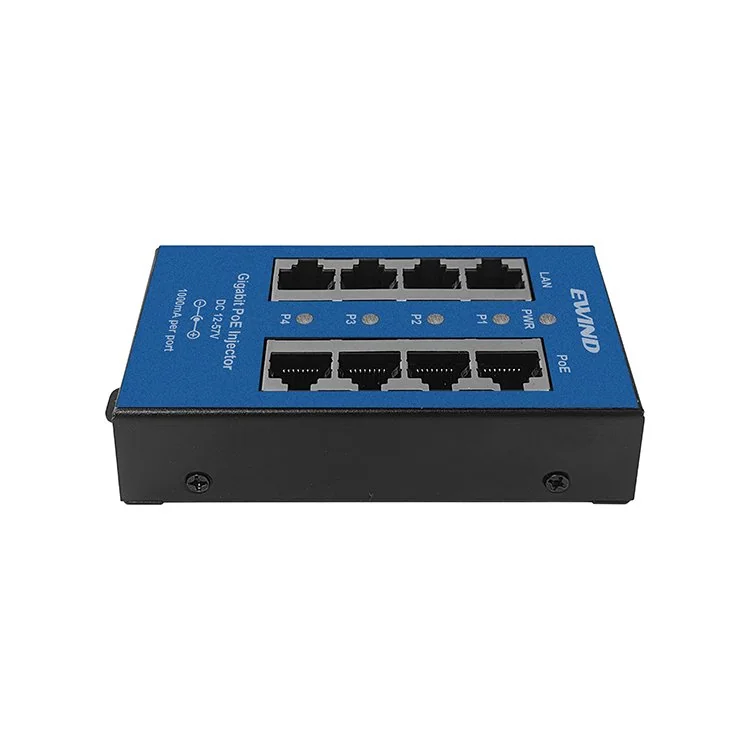

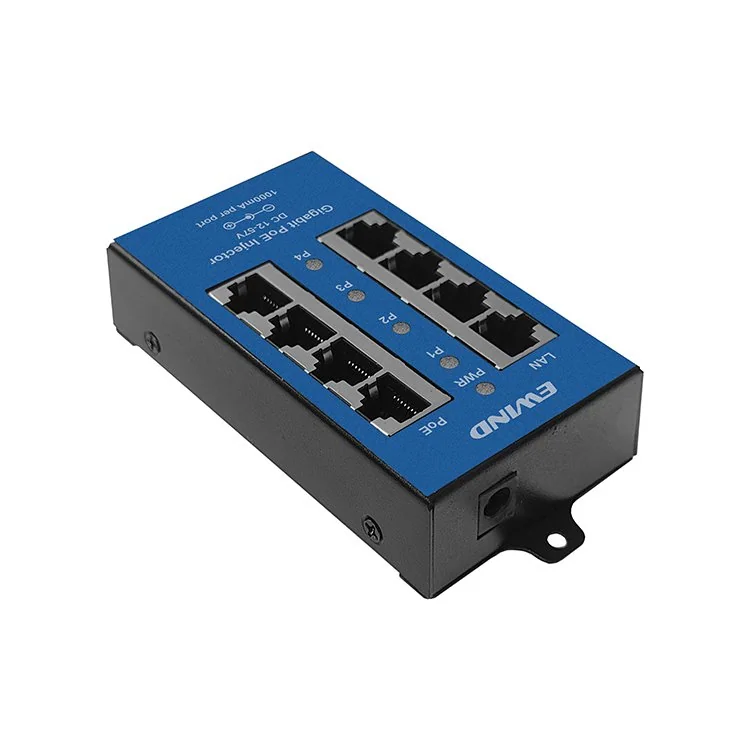

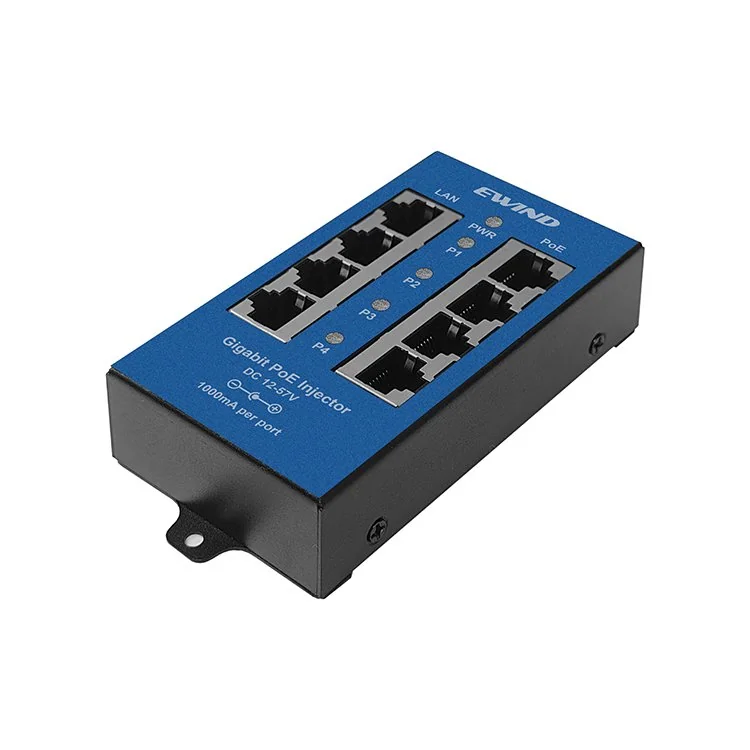

4-Channel Gigabit DC PoE Injector
- 4 Gigabit LAN inputs + 4 powered outputs
- 12–57V DC input; output follows supply voltage
- Default Mode B; Mode A option
- Fanless desktop or wall mounting
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE304CG adds DC power to four independent Gigabit Ethernet connections. It provides four LAN inputs, four corresponding powered outputs and a 12–57V DC input in a compact fanless enclosure; the external power supply is ordered separately.
External DC power
Select a supply voltage and capacity matched to all connected devices.
Compact installation
A 101 × 55 × 23 mm fanless enclosure supports desktop and wall mounting.
| Specification | Details |
|---|---|

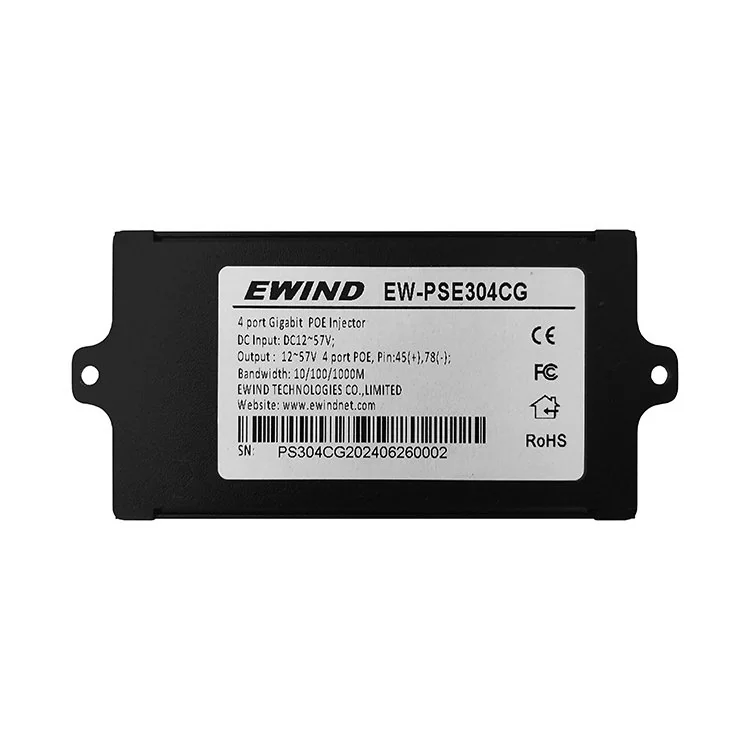

| Model | EW-PSE304CG |
| LAN inputs | 4 × RJ45; 10/100/1000Mbps |
| Powered outputs | 4 × RJ45; 10/100/1000Mbps |

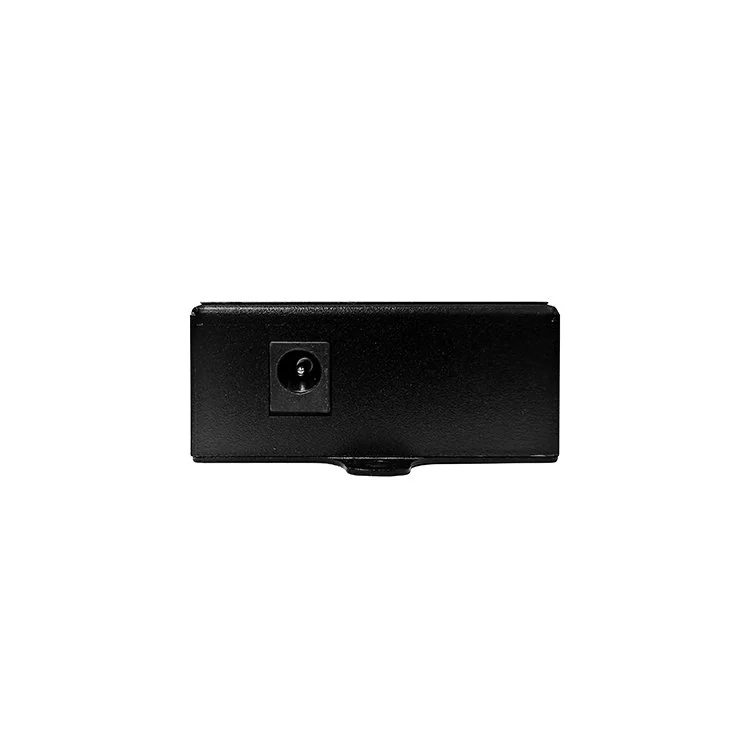

| DC input | 12–57V; 2.1 mm DC connector |
| Output voltage | Follows the external DC supply |
| Per-port current limit | 1A |
| Default power pins | Mode B: 4/5 (+), 7/8 (−) |
| Power supply | External; not included |
| Dimensions / weight | 101 × 55 × 23 mm / 0.15 kg |
| Cooling / mounting | Fanless; desktop or wall |
| Operating temperature | −20°C to +55°C |
| Warranty | 1 year |

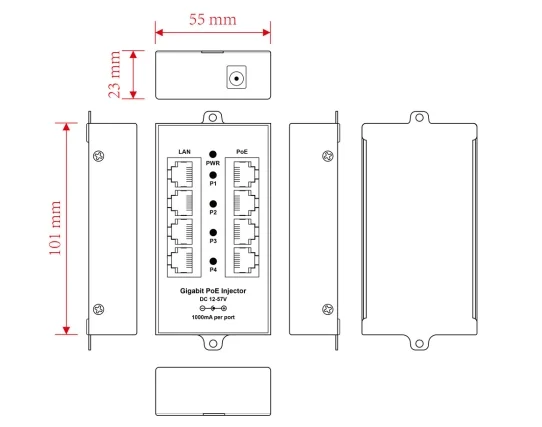

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE304CG four-channel injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
