Two PoE channels

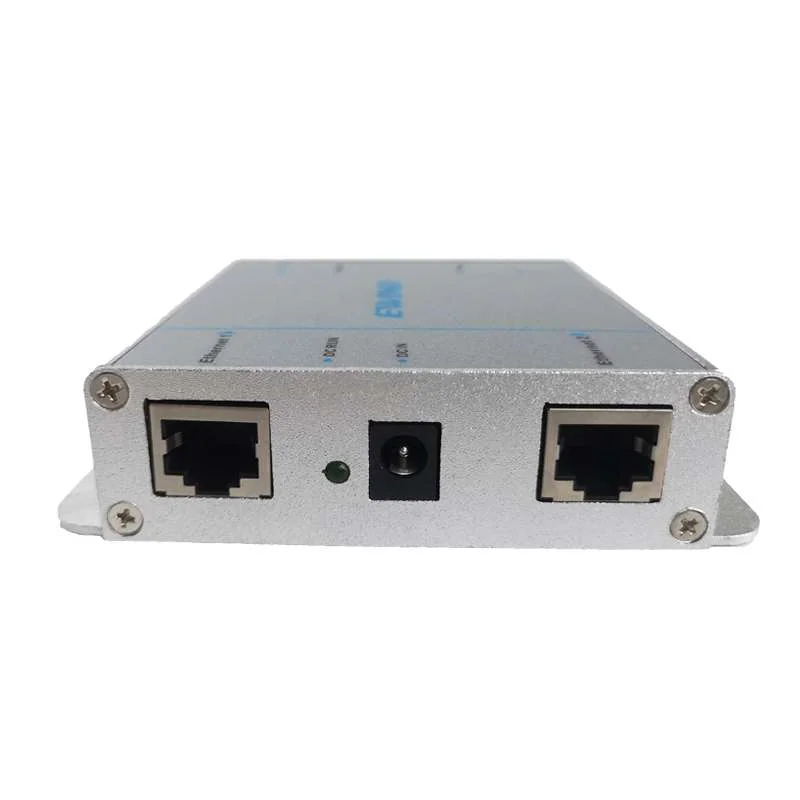

Separate Ethernet 1 and Ethernet 2 inputs serve two powered devices.
Model: EW-PSE202G-DC-AF

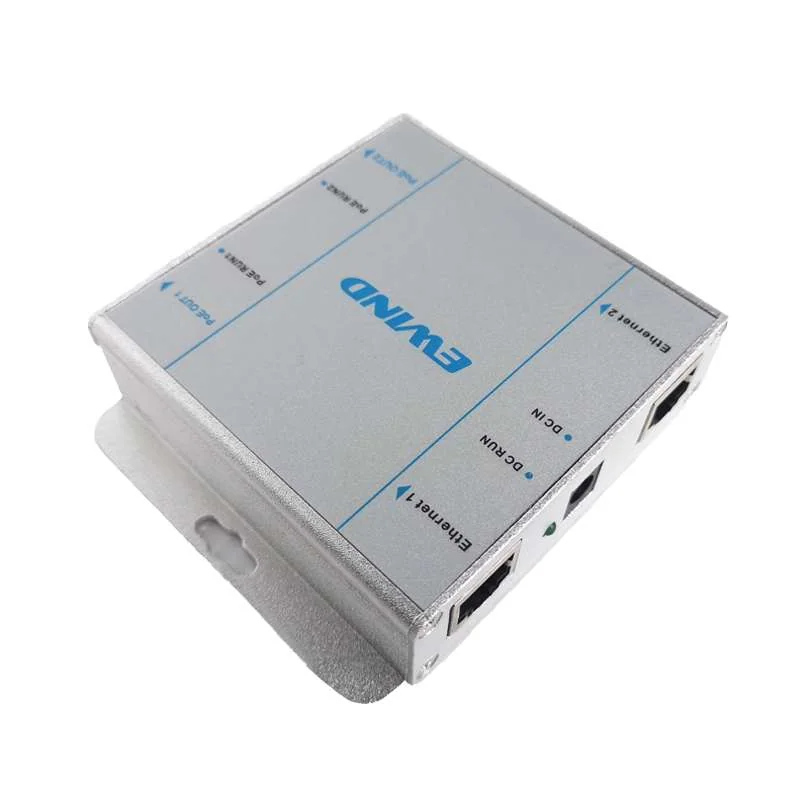

Dual-Port Gigabit DC PoE Injector
- 2 × Gigabit Ethernet inputs and 2 × PoE outputs
- IEEE 802.3af; 15.4W rated output per PoE port
- 12–32VDC input; 44–57V PoE output
- Fanless desktop or wall-mounted enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE202G-DC-AF provides two Gigabit PoE channels from a 12–32VDC supply. Separate Ethernet inputs and PoE outputs let each channel connect an upstream data port to an IEEE 802.3af powered device, with 44–57V PoE output and fanless desktop or wall mounting.
DC input
Convert 12–32VDC into the voltage required by PoE endpoints.
Protected ports
ESD protection and a thermal cutoff support operation in network cabinets.
Camera connections
Add PoE to two existing Ethernet connections without changing the switch.
| Specification | Details |
|---|---|
| Ethernet interfaces | 4 × 10/100/1000Mbps RJ45: 2 data inputs and 2 PoE outputs |
| PoE output | IEEE 802.3af; 15.4W per port |
| Power conversion | 12–32VDC input; 44–57V PoE output |
| Power pairs | Default pins 4/5 positive and 7/8 negative; pins 1/2 positive and 3/6 negative available by customization |
| Installation | Fanless; desktop or wall mounting |
| Operating environment | −20°C to +55°C; 10%–90% RH, non-condensing |
| Protection | IEC61000-4-2 ESD protection; thermal cutoff above 100°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE202G-DC-AF dual-port DC PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
