Gigabit extension
One Gigabit PoE input feeds two auto-negotiating Gigabit outputs.
Model: EW-PSE-PD102G

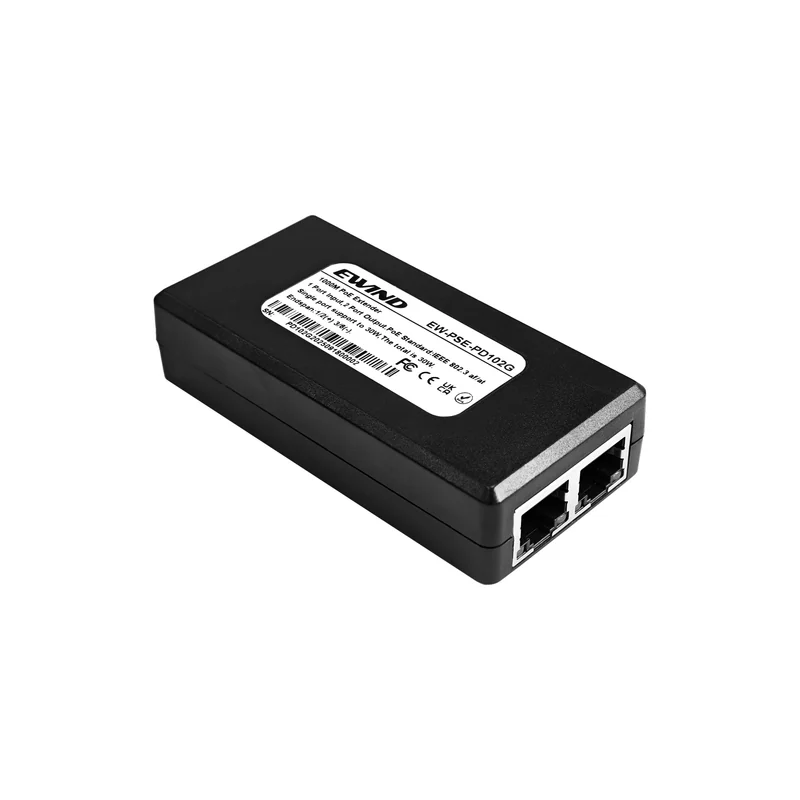

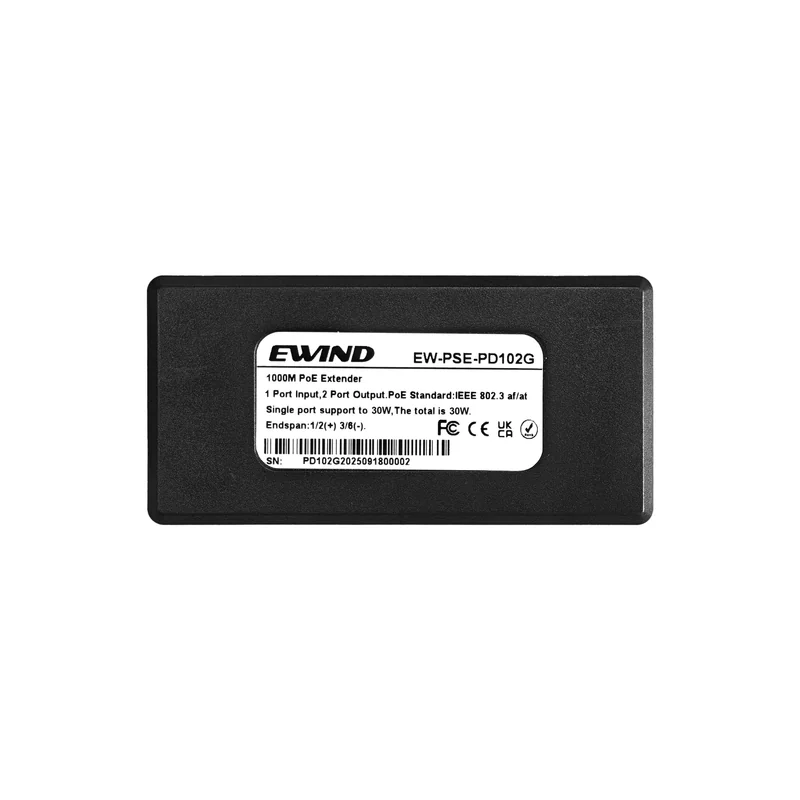

2-Port Gigabit PoE Extender
- 1 × 10/100/1000Mbps PoE input and 2 × Gigabit outputs
- IEEE 802.3af/at compatible
- 30W maximum input and 30W shared output
- Up to 100m per segment; cascade supported
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE-PD102G extends a 10/100/1000Mbps PoE link to two Gigabit powered outputs without a local power supply. It regenerates data and power for an additional cable segment and supports IEEE 802.3af/at powered devices.
No local supply
The extender draws power from the incoming PoE connection.
Longer cable runs
Each segment supports up to 100m with Cat5e/Cat6 cabling.
| Specification | Details |
|---|---|
| PoE input | 1 × 10/100/1000Mbps RJ45 |
| PoE outputs | 2 × 10/100/1000Mbps RJ45 |
| PoE standard | IEEE 802.3af/at |
| Maximum input power | 30W |
| Maximum output power | 30W shared; intelligently allocated |
| Power pins | Input: 1/2 (+), 3/6 (−); output supports 1/2 (+), 3/6 (−) or 4/5 (+), 7/8 (−) |
| Transmission distance | Cat5e/Cat6 ≤100m per segment; cascade supported |
| Enclosure | Engineering plastic |
| Dimensions (L × W × H) | 88.5 × 44 × 22mm |
| Weight | 55g |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE-PD102G 2-port Gigabit PoE extender | 1 | SET |
Applications
Extended Gigabit PoE connections for IP cameras, wireless access points and IP phones.
