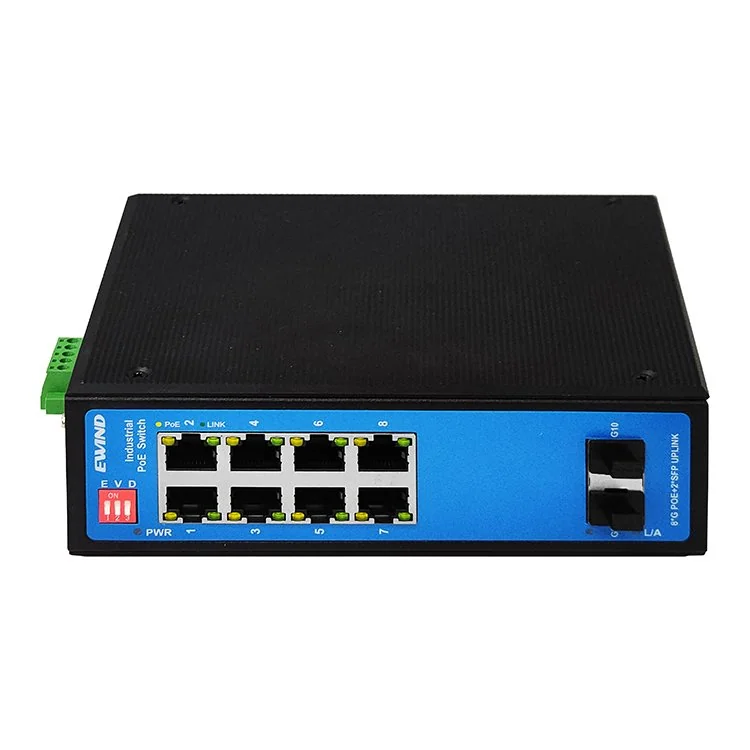

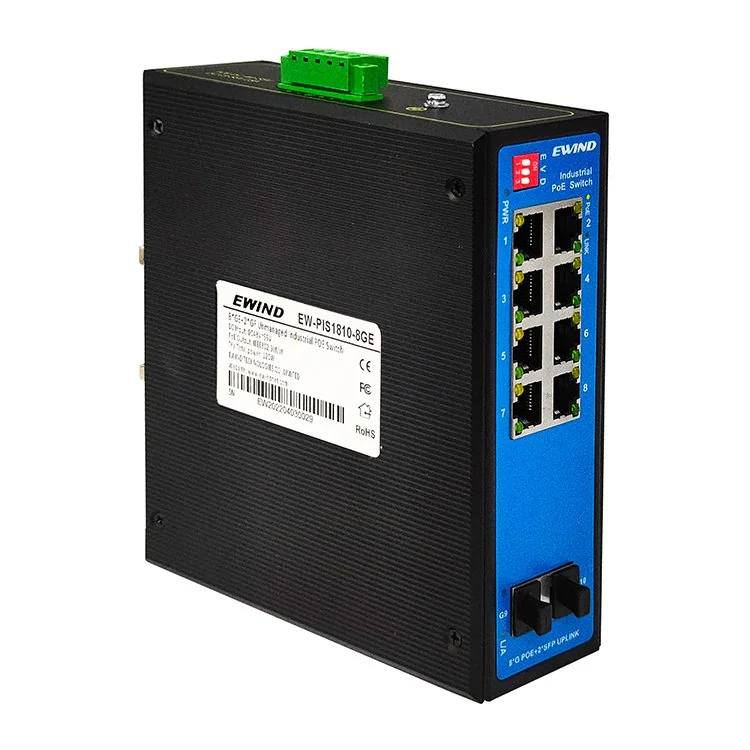

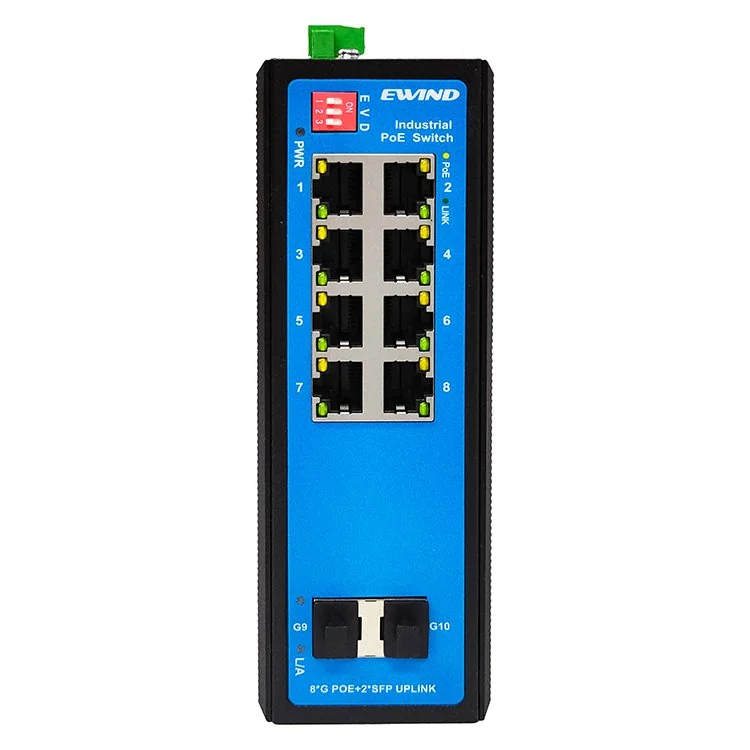

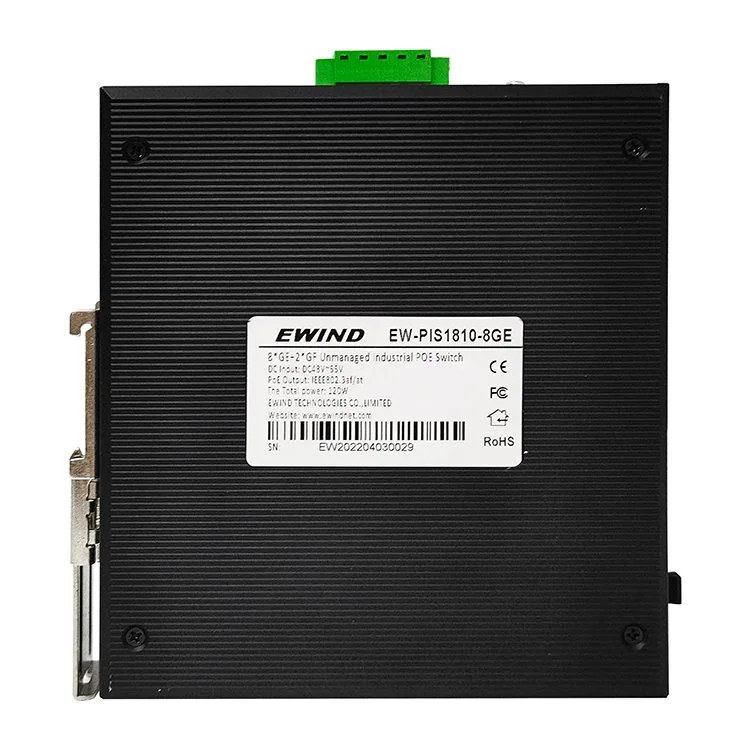

Model: EW-PIS1810-8GE

8-Port Industrial Gigabit PoE Switch with Dual SFP Uplinks

8 × Gigabit IEEE 802.3af/at PoE ports; up to 30W per port
2 × Gigabit SFP uplinks; optical modules ordered separately
Redundant 48–57VDC input with reverse-polarity protection
Extend mode up to 300m at 10Mbps

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

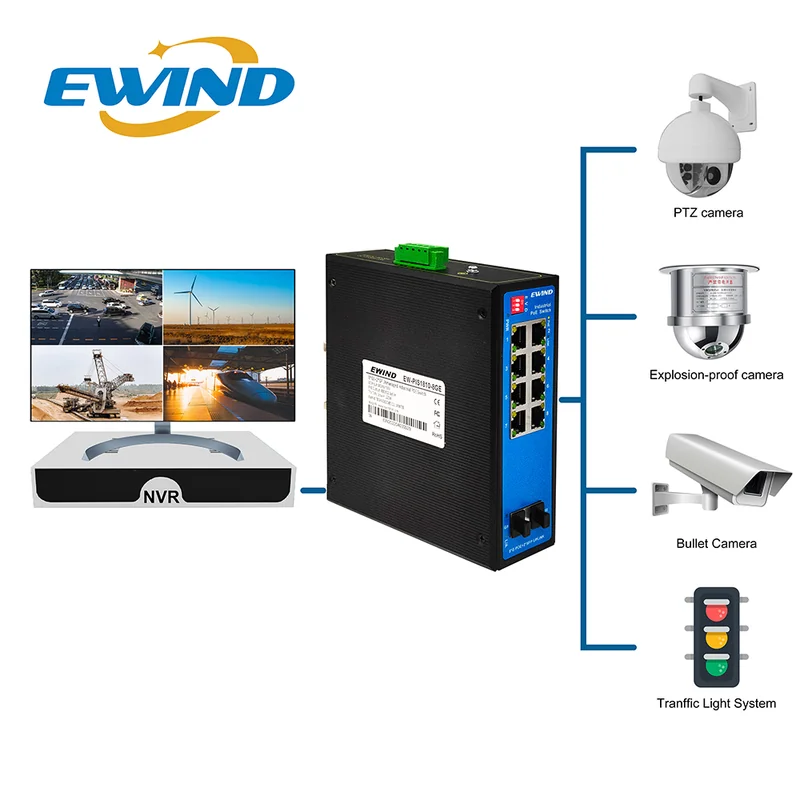

EW-PIS1810-8GE connects eight Gigabit PoE devices to two Gigabit SFP uplinks. Its redundant 48–57VDC input and compact DIN rail enclosure suit industrial surveillance, with switch-selectable Extend, port isolation and PoE watchdog functions for field maintenance.

Dual fiber uplinks

Two Gigabit SFP slots link remote camera groups to the upstream network.

30W per port

Select a 120W or 240W external supply to suit the connected PoE load.

Extend mode

Long copper runs operate at 10Mbps; other links retain their normal speed.

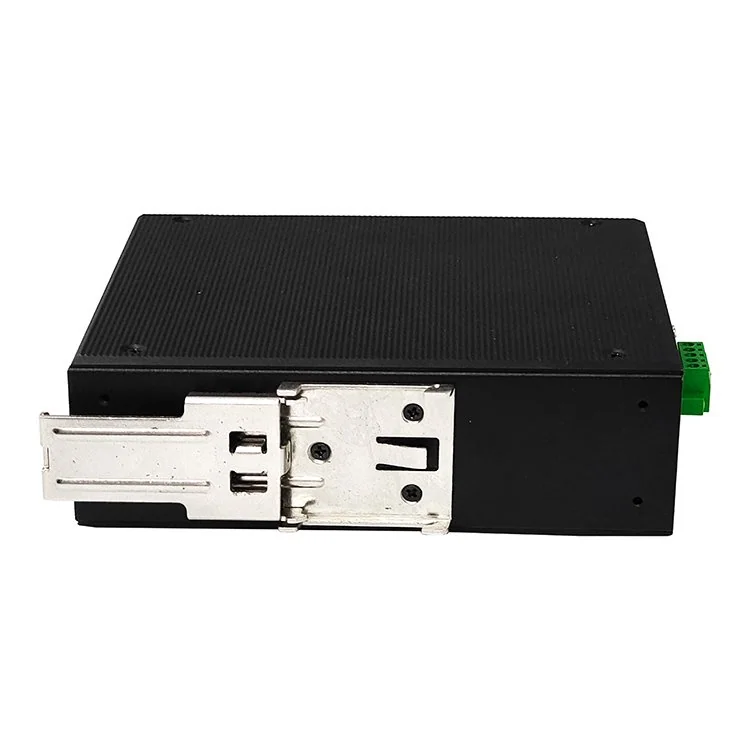

DIN rail installation

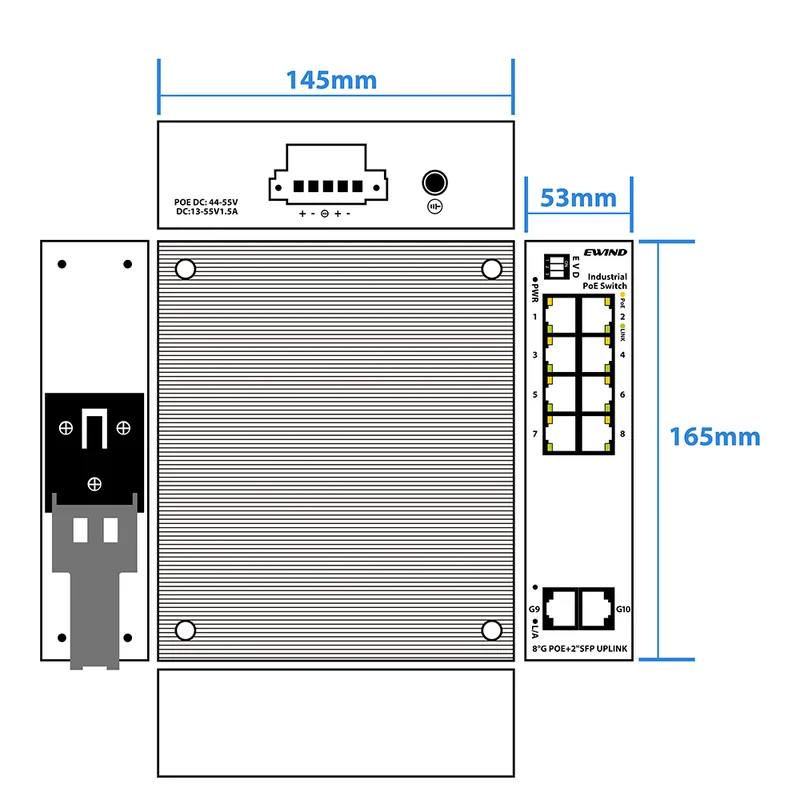

The 165 × 145 × 53mm enclosure fits compact industrial cabinets.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45; IEEE 802.3af/at; up to 30W per port
Fiber uplinks	2 × 1000Base-X SFP; modules sold separately
Switching performance	20Gbps switching capacity; 14.88Mpps forwarding
Memory	8K MAC entries; 2M packet buffer; 10K jumbo frames

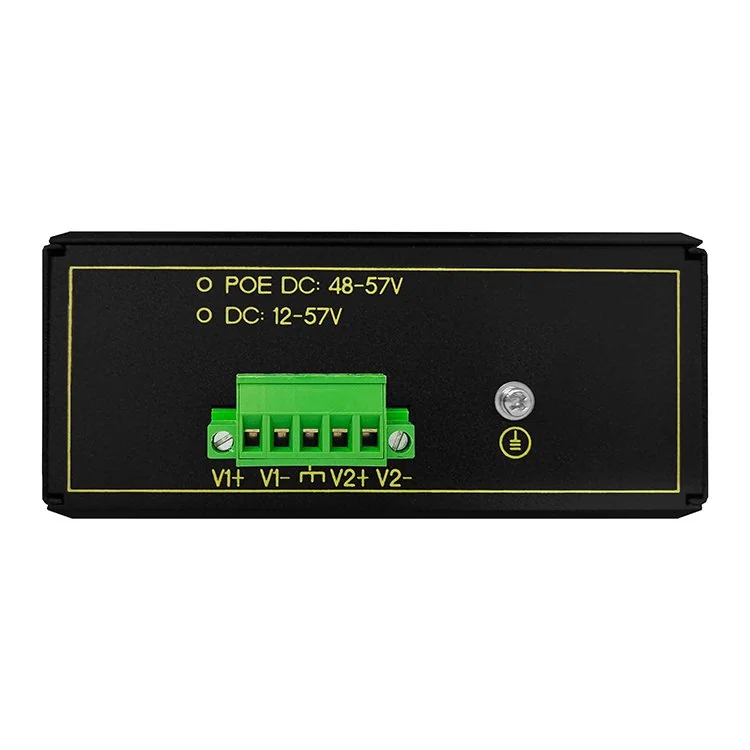

Power input	Redundant 48–57VDC; 5-pin Phoenix terminal; reverse-polarity protection
Power supply options	External 48V/120W or 48V/240W supply; ordered separately
Dimensions / weight	165 × 145 × 53mm; net <1.0kg; gross <1.3kg
Operating environment	−40°C to +85°C; 5%–90% RH, non-condensing
Protection	IP40 enclosure; 6kV lightning protection
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Extend, isolation and watchdog

The E switch enables copper runs up to 300m at 10Mbps. V isolates ports 1–8, and D enables PoE watchdog recovery for unresponsive endpoints.

Fiber module selection

Choose modules for the required wavelength, fiber type and distance. Listed options cover multimode and single-mode links; the reach depends on the installed optics.

PoE wiring and copper links

PoE uses pins 1/2 positive and 3/6 negative. Standard Gigabit copper links use Cat5e or better cabling up to 100m.

Environmental protection

Storage range is −40°C to +125°C at 5%–95% RH. ESD protection is ±8kV contact and ±15kV air; the specification also lists surge and industrial EMC immunity.
