Model: EW-IS1810

10-Port Gigabit Industrial Unmanaged Switch with Dual SFP

8 × 10/100/1000Mbps copper ports
2 × 100/1000Mbps SFP fiber uplinks
20Gbps switching capacity and 14.88Mpps forwarding
Redundant 12–48VDC industrial power inputs

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS1810 is an unmanaged industrial switch with eight Gigabit copper ports, two Gigabit SFP uplinks and redundant 12–48VDC Phoenix terminal inputs. Its full-wire-speed forwarding, wide temperature range and IP40 enclosure suit factory, transport and outdoor network cabinets.

Copper + fiber

Eight Gigabit RJ45 ports and dual SFP uplinks connect mixed industrial links.

Wire-speed switching

20Gbps non-blocking capacity forwards traffic without a management plane.

Wide temperature

Designed for −40°C to +80°C operating environments.

Industrial protection

IP40, redundant DC input and vibration/shock protection suit field cabinets.

Product technical specifications
Specification	Details
Interfaces	8 × 10/100/1000Mbps RJ45; 2 × 100/1000Mbps SFP
Switching performance	20Gbps non-blocking; 14.88Mpps at 64 bytes; full wire speed
Memory	2K MAC table; 1M buffer; 10K jumbo frames
Power input	12–48VDC; dual 5-pin Phoenix terminals with reverse-polarity protection
Fiber reach	Multimode 850nm up to 500m or 1310nm up to 2km; single-mode 1310nm up to 40km or 1550nm up to 120km

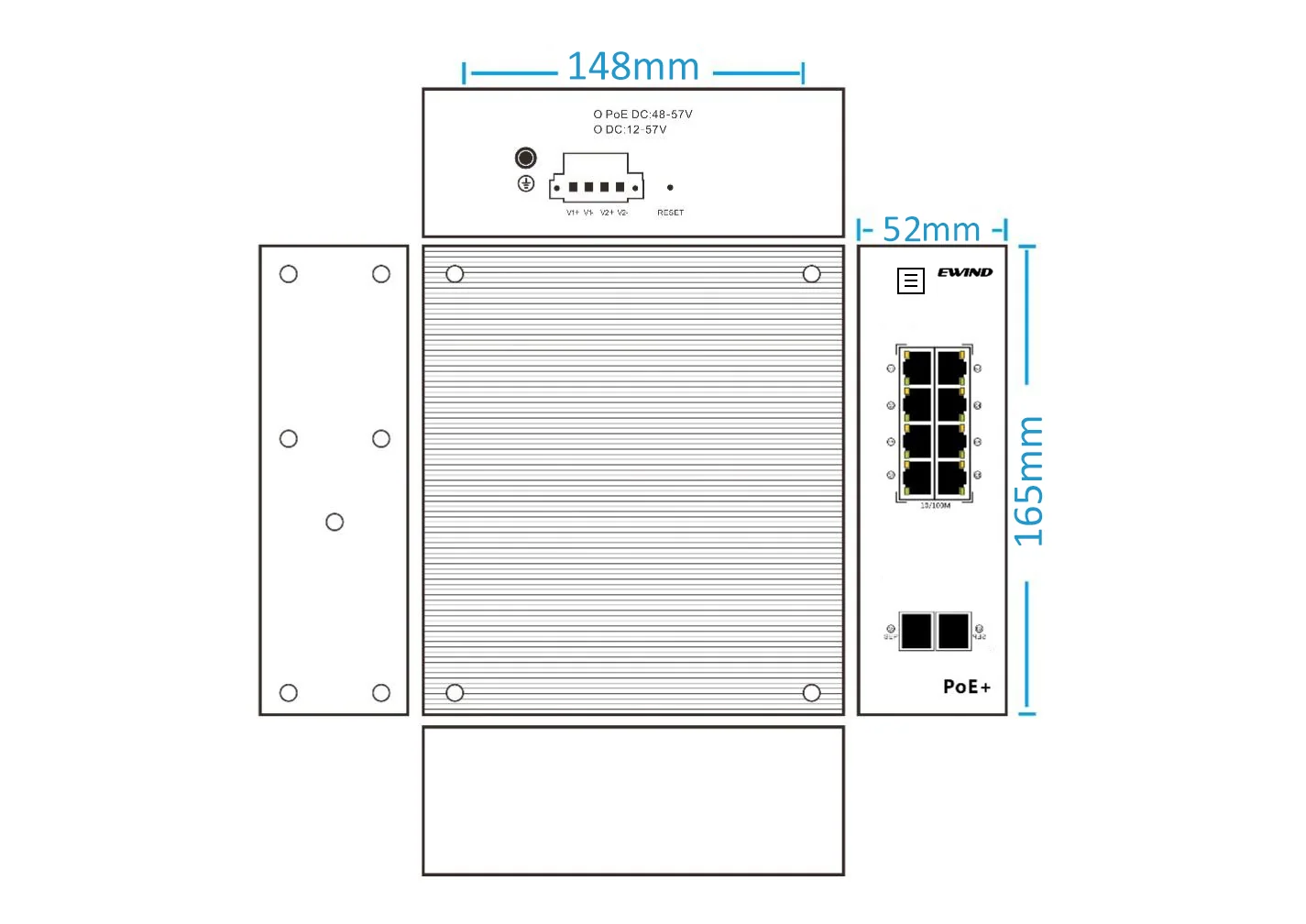

Dimensions / weight	165 × 148 × 52mm; net under 1kg, gross under 1.3kg
Installation	Industrial cabinet or field enclosure
Environment / protection	Operating −40°C to +80°C; storage −40°C to +125°C; IP40; 6kV lightning and industrial EMC protection
Mechanical durability	IEC60068-2-6 vibration, IEC60068-2-27 shock and IEC60068-2-32 free fall
Warranty	5 years; lifelong maintenance
