Five Fast Ethernet ports
Four auto-sensing RJ45 access ports and one data-only uplink connect industrial devices without configuration.
Model: EW-IS1705E
5-Port Fast Ethernet Industrial Switch with RJ45 Uplink
- 4 × 10/100Mbps access ports + 1 × 100Mbps uplink
- 1.6 Gbps switching capacity · 1K MAC table
- Dual 12–57V DC inputs · IP40
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-IS1705E provides four Fast Ethernet access ports and one Fast Ethernet uplink in a compact industrial enclosure. Redundant 12–57V DC inputs, DIN-rail mounting and fanless unmanaged operation fit transport and industrial cabinets.

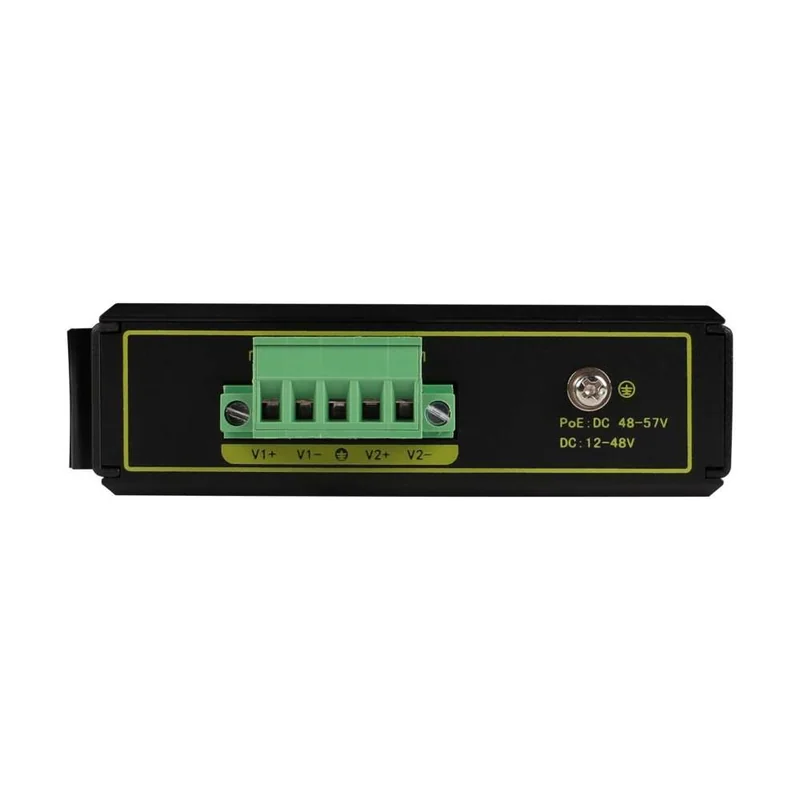

Redundant DC input
Two V+/V− feeds share a five-pin Phoenix terminal and include reverse-polarity protection.

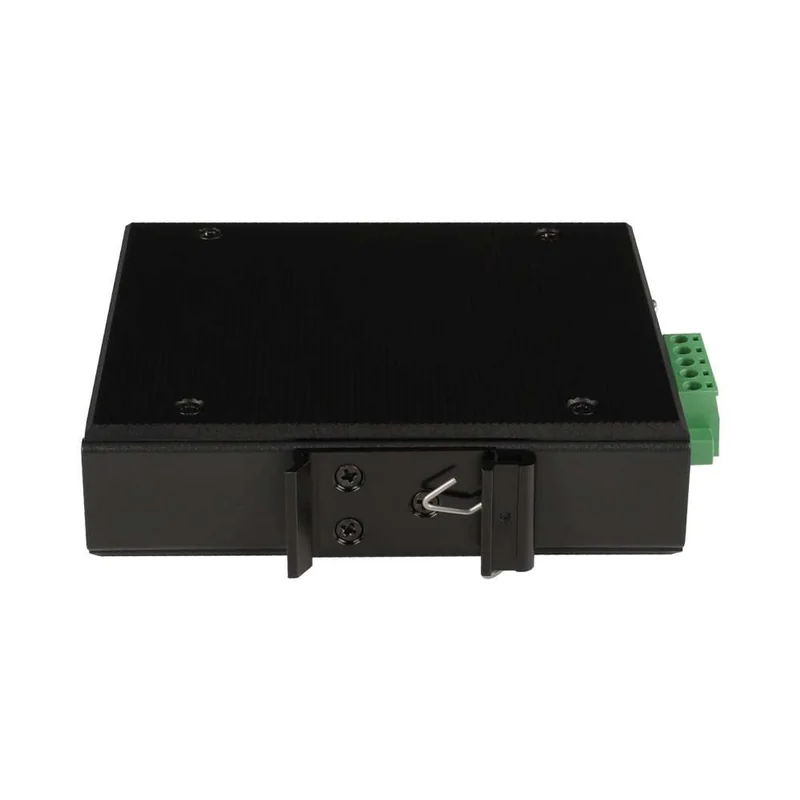

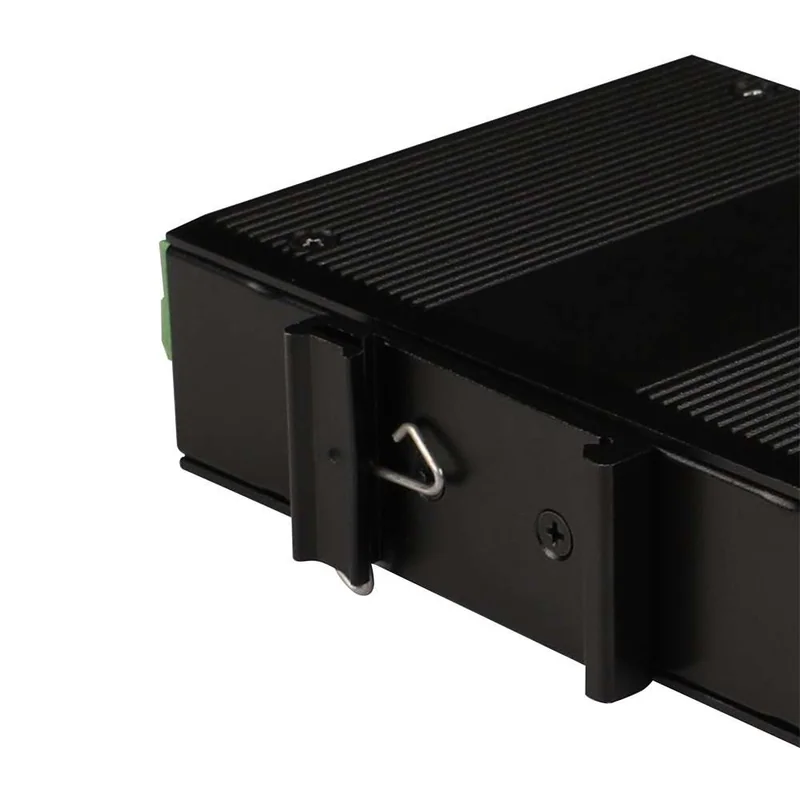

DIN-rail enclosure
The compact IP40 enclosure supports desktop or 35mm DIN-rail installation from −40 to +80°C.
| Specification | Details |
|---|---|
| Model | EW-IS1705E |
| Access ports | 4 × 10/100BASE-T RJ45 data ports |
| Uplink | 1 × 100BASE-T RJ45 data port |
| Management | Unmanaged; plug and play |
| Switching / forwarding | 1.6 Gbps / 0.744 Mpps |
| MAC / buffer | 1K entries / 1M |
| Jumbo frame | 10K |
| Power input | Dual 12–57V DC; 5-pin Phoenix terminal |
| Power consumption | Standby <1W; full load <3W |
| Enclosure / installation | IP40; desktop or 35mm DIN rail |
| Dimensions | 115 × 85 × 30 mm, per detailed PDF table |
| Operating environment | −40 to +80°C; 5–90% RH, non-condensing |
| Warranty | 5 years |

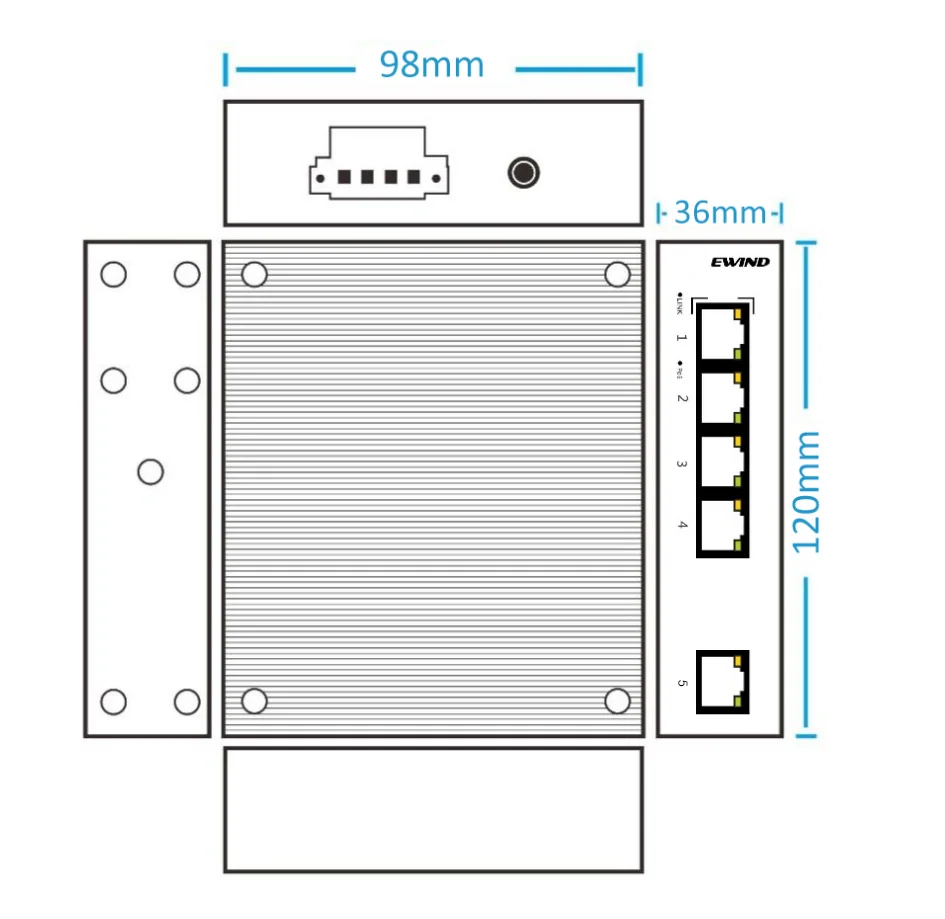

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-IS1705E industrial Ethernet switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
