Copper to fiber access

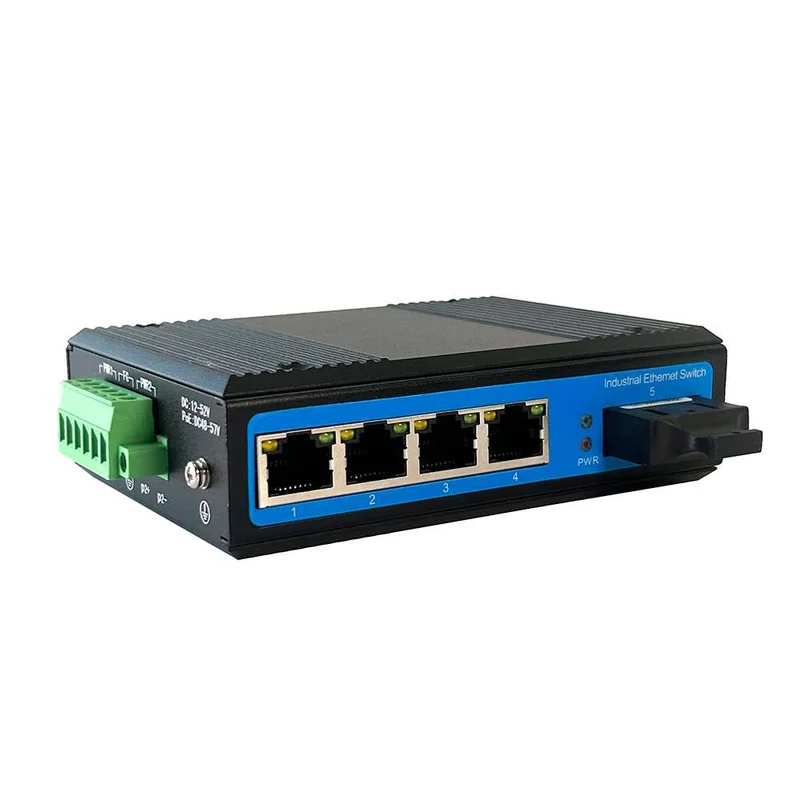

Four data-only RJ45 ports connect local equipment to a Fast Ethernet SC optical uplink.
Model: EW-IS1705
4-Port Fast Ethernet Industrial Switch with SC Fiber Uplink
- 4 × 10/100Mbps RJ45 data ports + 1 SC fiber uplink
- 1 Gbps switching capacity · 0.744 Mpps
- Dual 12–48V DC inputs · −40 to +85°C
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-IS1705 connects four Fast Ethernet devices to an SC fiber uplink. Its unmanaged design, redundant 12–48V DC inputs and compact DIN-rail housing support industrial data networks without switch configuration.
Redundant DC inputs

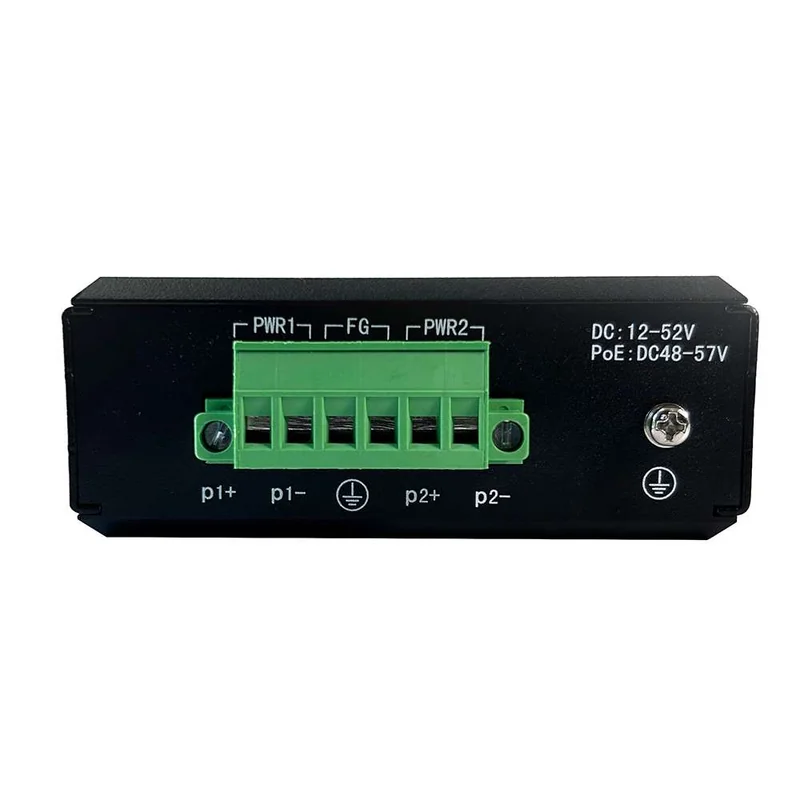

Two DC feeds connect through a six-pin terminal, with reverse-polarity protection.
Industrial installation

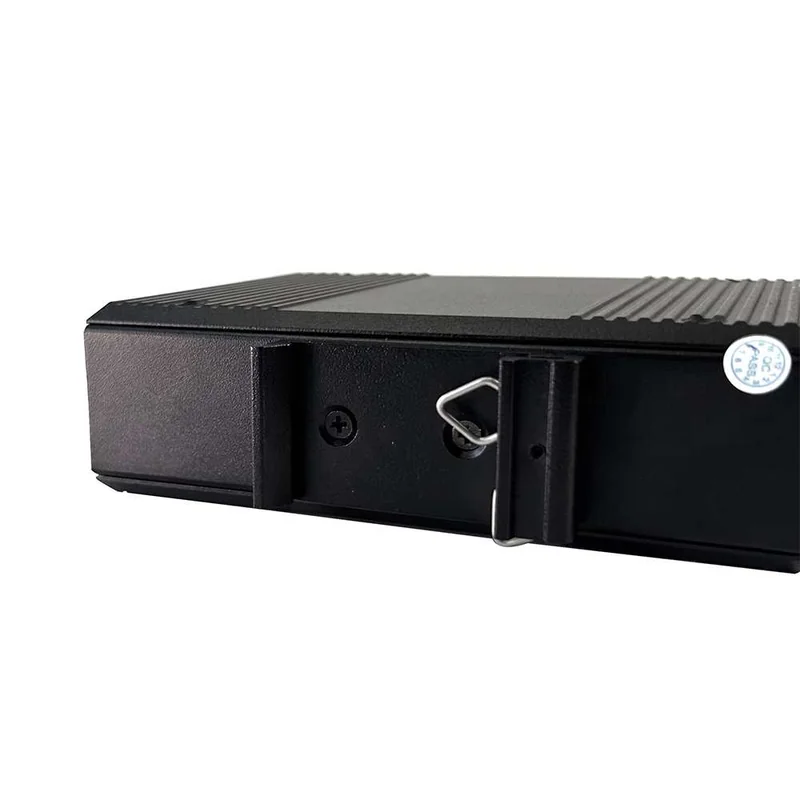

IP40 housing supports DIN-rail or desktop installation across a −40 to +85°C operating range.
| Specification | Details |
|---|---|
| Model | EW-IS1705 |
| Copper ports | 4 × 10/100BASE-TX RJ45 data ports |
| Fiber uplink | 1 × SC optical port; 100BASE-FX Ethernet |
| Management | Unmanaged; plug and play |
| Switching / forwarding | 1 Gbps / 0.744 Mpps |
| MAC address table | 2K entries |
| Power input | Dual 12–48V DC; 6-pin terminal; reverse-polarity protection |
| Enclosure / mounting | IP40; DIN rail or desktop |
| Dimensions | 118 × 86 × 39 mm |
| Net weight | <0.5kg |
| Operating environment | −40 to +85°C; 5–90% RH, non-condensing |
| Warranty | 5 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-IS1705 industrial Ethernet switch | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
