Model: EW-IS1712

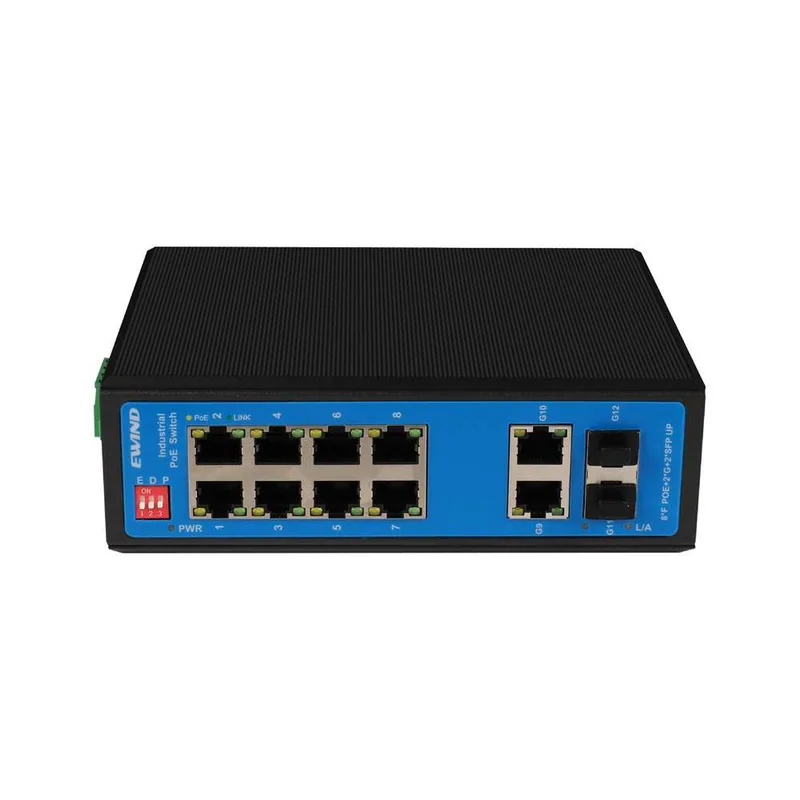

8-Port Fast Ethernet Industrial Switch with 4 Gigabit Uplinks

8 × 10/100Mbps RJ45 access ports
2 × Gigabit RJ45 + 2 × 100/1000Mbps SFP uplinks
Redundant 12–57V DC input
IP40; DIN rail; −40 to +80°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS1712 offers eight Fast Ethernet access ports, two Gigabit RJ45 uplinks and two 100/1000Mbps SFP slots for industrial data networks. Unmanaged operation, redundant 12–57V DC inputs and an IP40 DIN-rail enclosure support installation without software configuration.

Copper and fiber access

Eight Fast Ethernet ports connect endpoints while RJ45 and SFP uplinks connect upstream.

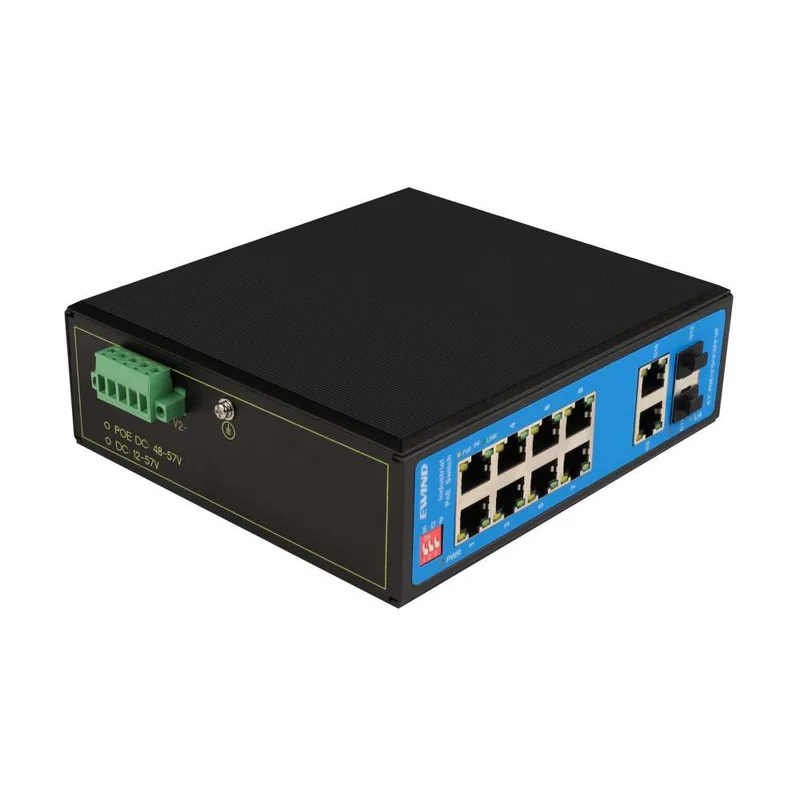

Redundant DC inputs

Dual 12–57V DC inputs with reverse-polarity protection support cabinet power systems.

Industrial installation

An IP40 enclosure and DIN-rail mounting support industrial data connectivity.

Product technical specifications
Specification	Details
Access ports	8 × 10/100Mbps RJ45; data only
Copper uplinks	2 × 10/100/1000Mbps RJ45
Fiber uplinks	2 × 100/1000Mbps SFP
Management	Unmanaged
Forwarding	Store-and-forward; auto-negotiation and auto MDI/MDIX
MAC / buffer / jumbo frame	2K entries / 1M / 10K
DC input	12–57V; redundant 5-pin terminal; reverse-polarity protection
Dimensions	165 × 148 × 54mm, per technical table
Operating temperature	−40 to +80°C
Enclosure / mounting	IP40 / DIN rail
Warranty	5 years
