95W PoE
IEEE 802.3bt support powers high-demand PTZ and industrial endpoints.
Model: EW-PIS3610M-8GE-BT
10-Port 95W Gigabit Managed Industrial PoE Switch
- 8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at/bt
- 2 × 100/1000Mbps SFP uplinks and RS232 console
- Up to 95W PoE per port with 480W source power specification
- L2+ routing, VLAN, ERPS, QoS, ACL and secure management
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS3610M-8GE-BT is an industrial L2+ managed switch with eight Gigabit PoE ports, two Gigabit SFP uplinks, an RS232 console and redundant DC input terminals. IEEE 802.3bt support, ERPS, routing and industrial protection target demanding surveillance and automation sites.
Fiber uplinks
Two Gigabit SFP slots extend links over single-mode or multimode fiber.
L2+ resilience
ERPS, STP/RSTP/MSTP, static routing and VLAN controls support resilient networks.
Harsh environments
Wide temperature range, 6kV lightning protection and IP40 protection suit field cabinets.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100/1000Mbps PoE RJ45; 2 × 100/1000Mbps SFP; RS232 console |
| PoE standard | IEEE 802.3af/at/bt; up to 95W per port |
| Power input / budget | 48–57VDC redundant Phoenix terminals; source specifies 480W total input power |
| Switching performance | 20Gbps non-blocking; 14.88Mpps; store-and-forward |
| Memory | 16K MAC table; 16M buffer; 10K jumbo frames |
| Fiber reach | Multimode 850nm up to 500m; single-mode 1310nm up to 40km or 1550nm up to 120km |
| Layer 2+ features | 4K VLAN, QinQ, LACP, STP/RSTP/MSTP, IGMP/MLD snooping and ERPS |
| Layer 3 / security | IPv4/IPv6 management, static/default routes, ACL, 802.1X, RADIUS, SSH2.0, HTTPS and IP/MAC/VLAN binding |
| Dimensions / weight | 165 × 120 × 52mm; net under 0.8kg, gross under 1.2kg |
| Environment / protection | Operating −40°C to +85°C; storage −40°C to +125°C; IP40; 6kV lightning and industrial EMC protection |
| Warranty | 5 years; lifelong maintenance |

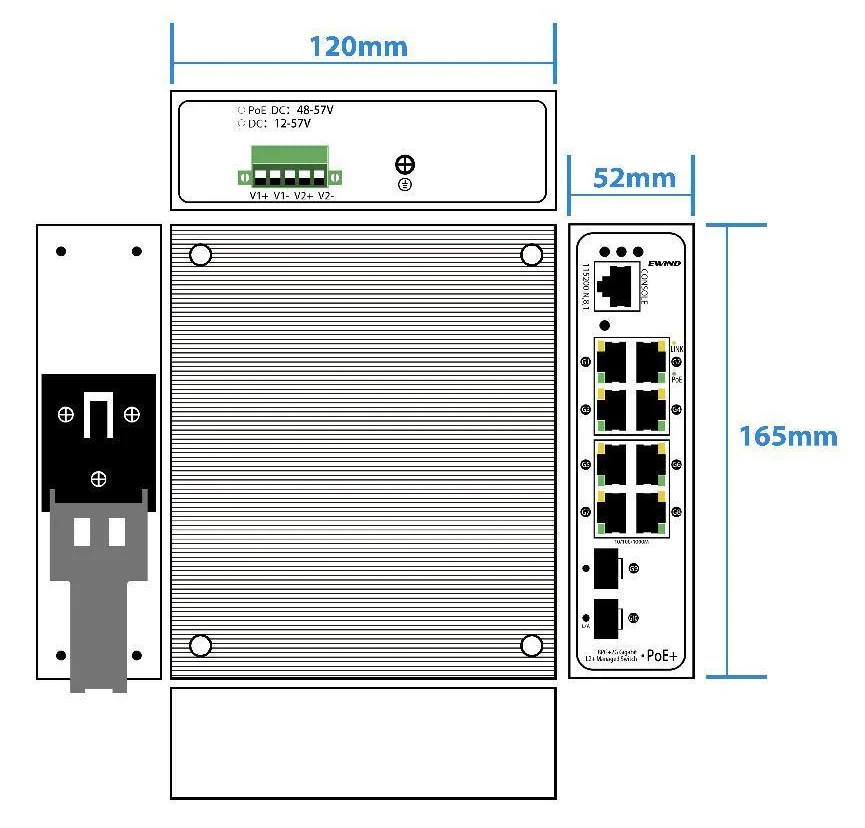

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 10 Port 95W Managed Industrial PoE Switch (EW-PIS3610M-8GE-BT) | 1 | SET |
| Console cable | 1 | PCS |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

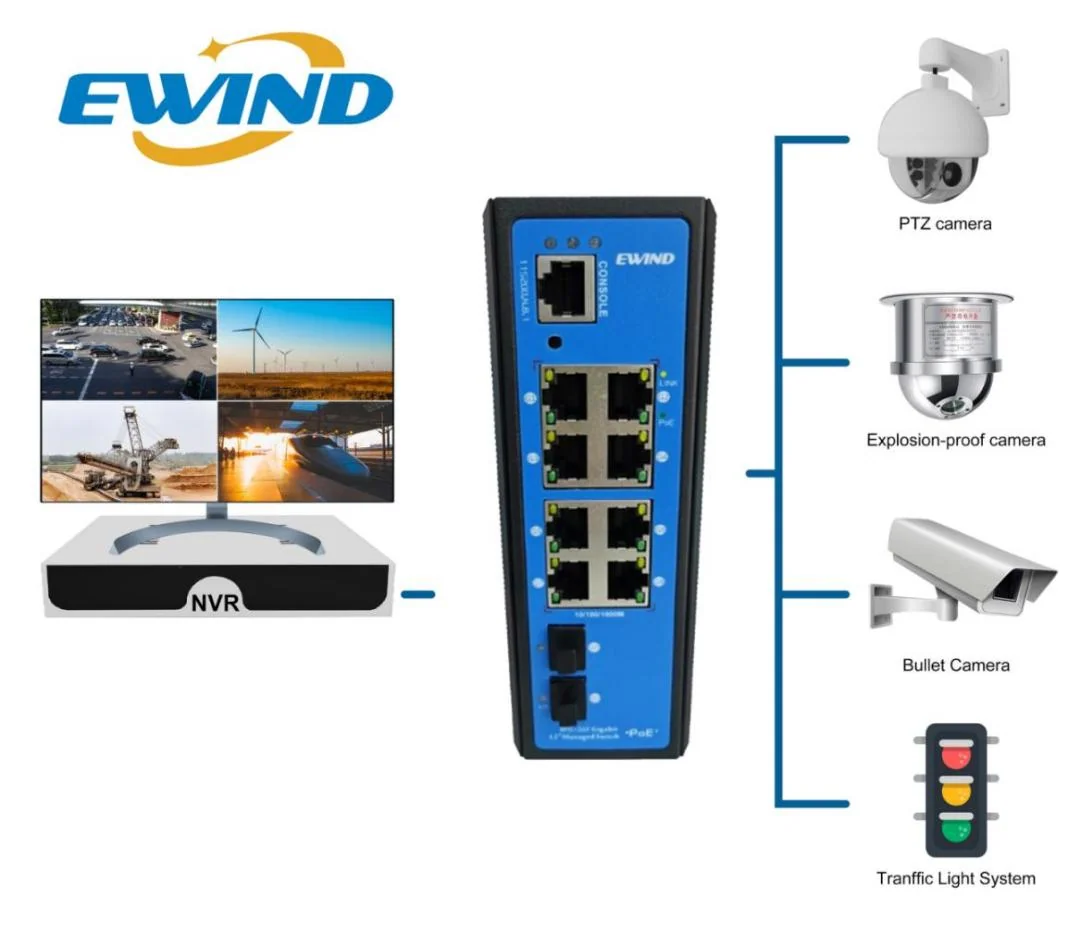

Applications
Industrial CCTV, traffic systems, mining, wind farms and factory automation networks.
EW-PIS3610M-8GE-BT Resources
PDF · Specifications · Installation · Ordering
