Tri-band Wi-Fi 7
2.4GHz, 5GHz and 6GHz radios deliver up to 9000Mbps combined throughput.
Model: EW-AP7900

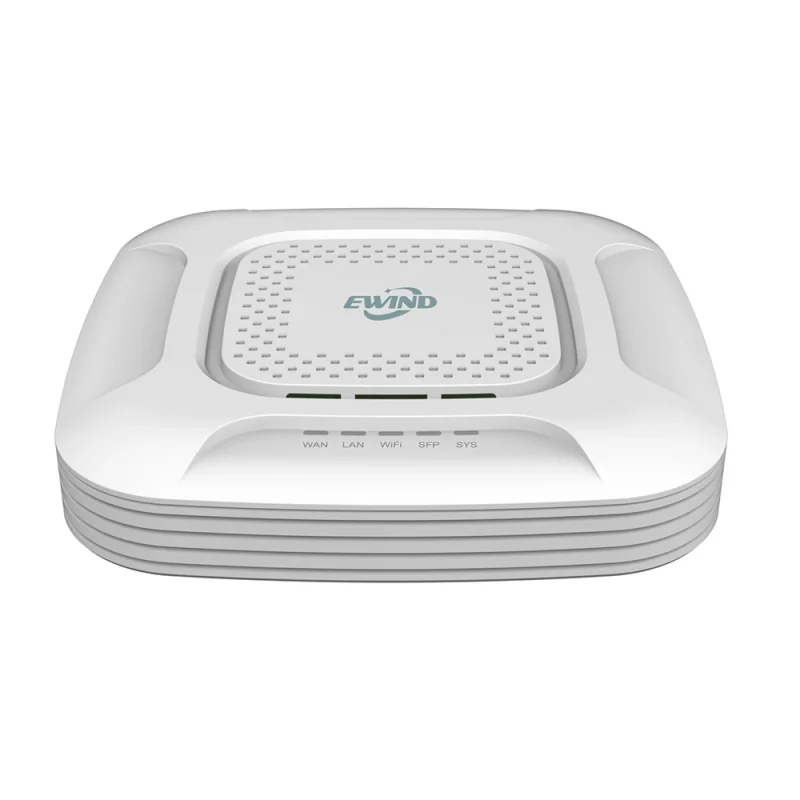

Wi-Fi 7 9Gbps Tri-Band 9000Mbps Ceiling Wireless AP
- Tri-band Wi-Fi 7 on 2.4GHz, 5GHz and 6GHz
- 688Mbps + 2882Mbps + 5764Mbps, up to 9000Mbps aggregate
- Up to 194 concurrent users
- 2.5Gbps WAN with 802.3bt PoE, 1Gbps LAN and 10G SFP+
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-AP7900 is a Wi-Fi 7 tri-band ceiling access point with 9000Mbps aggregate throughput, 194-user capacity, 2.5Gbps PoE WAN, Gigabit LAN and a 10G SFP+ uplink for high-density indoor deployments.
10G fiber uplink
A 10G SFP+ port works alongside 2.5Gbps PoE WAN and Gigabit LAN.
194-user capacity
Supports up to 194 concurrent users for high-density indoor coverage.
Wi-Fi 7 controls
4096QAM, MLO, MRU, 320MHz access and managed VLAN/SSID controls support modern deployments.
| Specification | Details |
|---|---|
| Wireless standard | 2.4GHz 802.11b/g/n/ax/be up to 688Mbps; 5GHz up to 2882Mbps; 6GHz up to 5764Mbps |
| Frequency | 2.4GHz–2.484GHz; 5.150GHz–5.825GHz; 6GHz 5.925GHz–7.125GHz |
| Antennas | 2.4GHz: 2 × 4dBi; 5GHz: 2 × 4dBi; 6GHz: 2 × 2dBi |

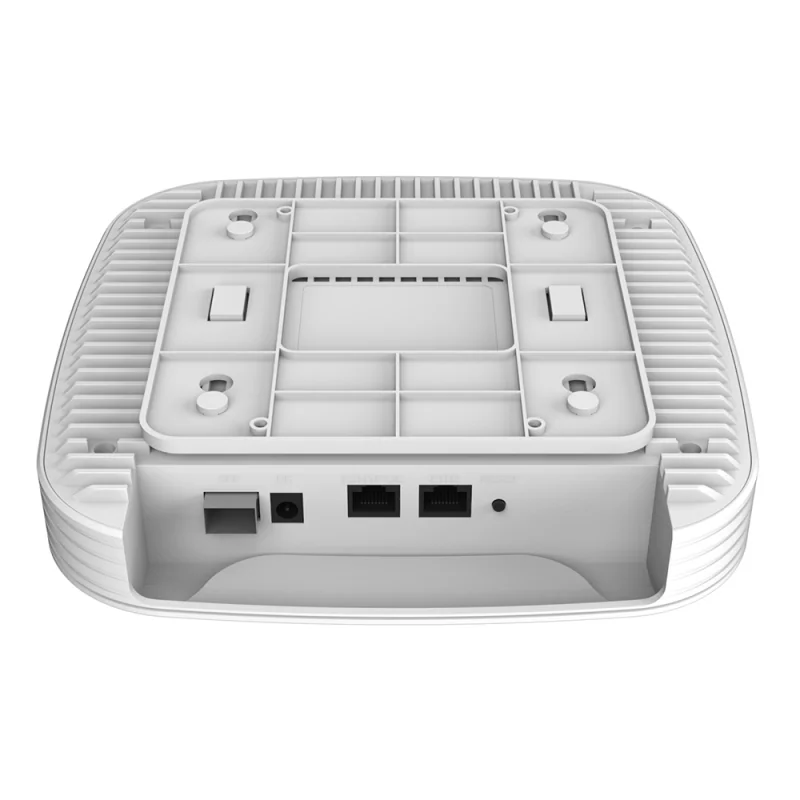

| Ethernet and fiber | 1 × 10/100/1000/2500Mbps WAN with 802.3bt PoE, 1 × Gigabit LAN and 1 × 10G SFP+ |
| Power | 802.3bt PoE or DC12V 3A; maximum consumption ＜36W |
| Capacity | 194 concurrent users maximum; 100m LOS wireless coverage listed in the source |
| Wi-Fi 7 functions | 4096QAM, MLO, MRU, preamble puncturing, 320MHz 6GHz access, MU-MIMO and beamforming |
| Network modes | Gateway, repeater and AP modes; DHCP, static IP and PPPoE |
| Management | English/Chinese web remote management, AC controller management and configuration backup/restore |
| Dimensions | 304 × 181 × 88mm |
| Environment | Operating −20℃ to 55℃; storage −40℃ to 70℃; operating humidity 10%–90% RH, non-condensing |
| Protection and compliance | ESD air/contact ±8kV/±6kV; surge 2kV line-to-ground and 1kV line-to-line; CCC, CE, FCC and RoHS |

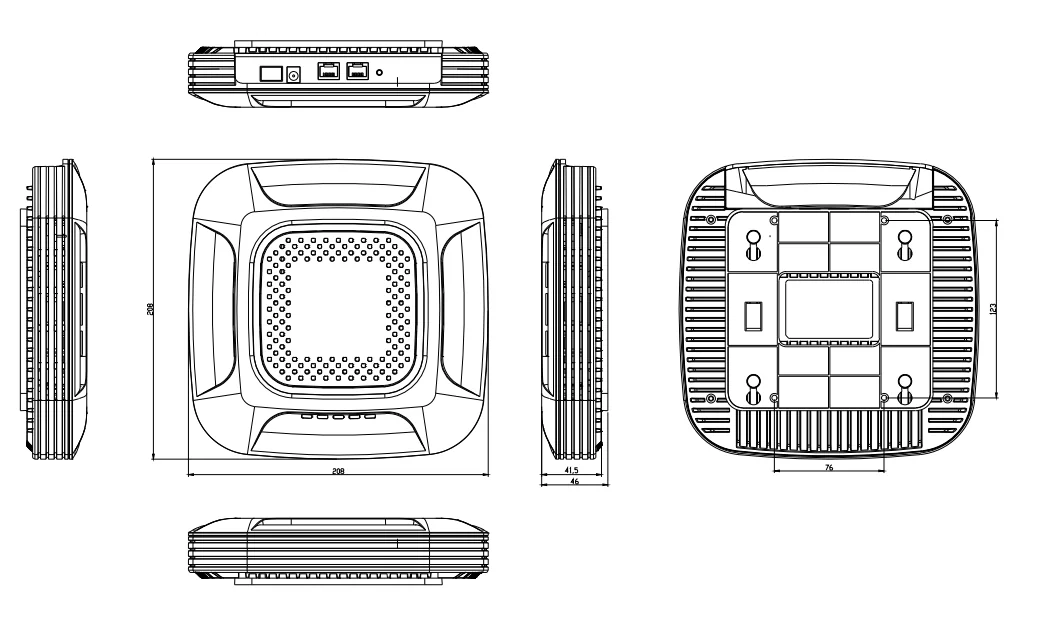

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| WiFi 7 ceiling mountable tri-band access point EW-AP7900 | 1 | PC |
| Ethernet cable | 1 | PC |
| Screws and plastic expansion plugs | 4 | SETS |
| User manual | 1 | PC |
Applications
High-density indoor Wi-Fi 7 coverage for offices, hotels, schools and commercial environments.
EW-AP7900 Resources
PDF · Specifications · Installation · Ordering
