Model: EW-PIS1705-4FE

5-Port Fast Ethernet Industrial PoE Switch with SC Fiber Uplink

4 × 10/100Mbps IEEE 802.3af/at PoE ports · 30W max per port
1 × 155Mbps SC fiber uplink · default single-mode dual-fiber 20km
1.0Gbps switching · 60W/120W supply options · IP40

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

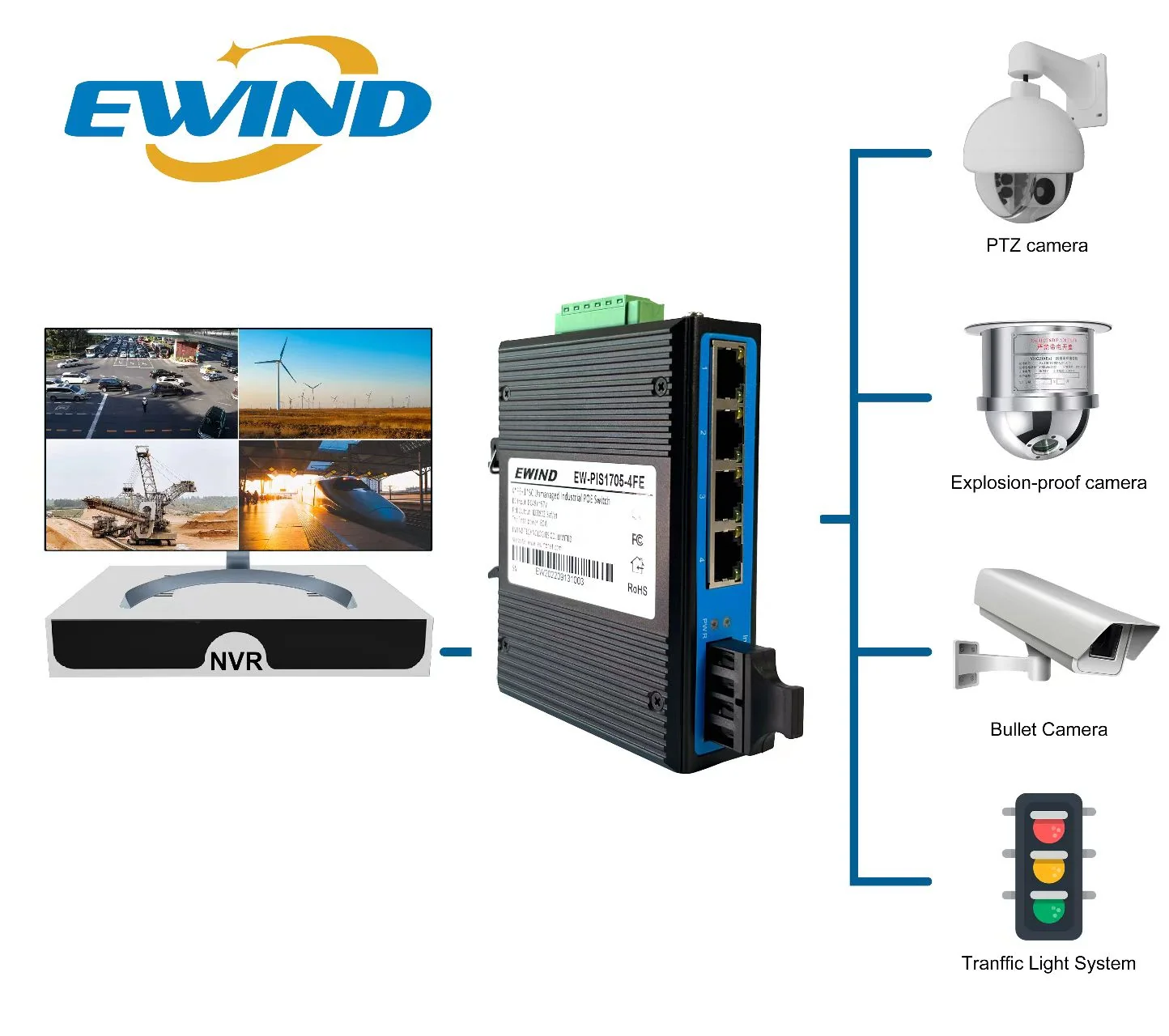

EW-PIS1705-4FE provides four 10/100Mbps PoE ports and one 155Mbps SC fiber uplink in a compact industrial enclosure. Its 48–57VDC input, optional 60W/120W supply, DIN-rail installation and IP40 protection suit remote camera and control nodes.

Four Fast Ethernet PoE outputs

Ports 1–4 support IEEE 802.3af/at with up to 30W per port.

SC fiber uplink

The default single-mode dual-fiber SC module is specified for 20km; other optical options are listed.

Industrial installation

Redundant Phoenix terminals, anti-reverse protection, IP40 and DIN-rail mounting support remote cabinets.

Product technical specifications
Specification	Details
Model	EW-PIS1705-4FE
PoE ports	4 × 10/100BASE-T/TX; IEEE 802.3af/at
Fiber uplink	1 × 155Mbps SC data port; default single-mode dual-fiber 20km module
Power input / budget	48–57VDC; 60W total, optional 120W/48V supply
Switching / forwarding	1.0Gbps / 0.744Mpps
MAC / buffer / jumbo	2K / 768K / 1536 bytes
PoE power	30W maximum per port
Dimensions / installation	118 × 86 × 39 mm; desktop or DIN rail
Protection / environment	IP40; 6kV 8/20μs lightning protection; −40 to +85°C operating; −40 to +125°C storage as listed
Warranty	5 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber planning

The source lists multimode 850nm up to 500m, 1310nm up to 2km, single-mode 1310nm up to 40km and 1550nm up to 120km. Confirm the installed SC module and fiber type before ordering.

Power planning

The source lists a 60W/48V total rating and an optional 120W/48V supply, with 30W maximum per PoE port. Confirm the selected supply and aggregate endpoint demand together.

Temperature review

The product text lists −40 to +85°C operating and −40 to +125°C storage. Confirm the storage rating with the supplier if the unit will be held in extreme environments.

Industrial installation

Use the redundant Phoenix terminals where power resilience is required. The enclosure supports desktop or DIN-rail mounting and includes anti-reverse protection.
