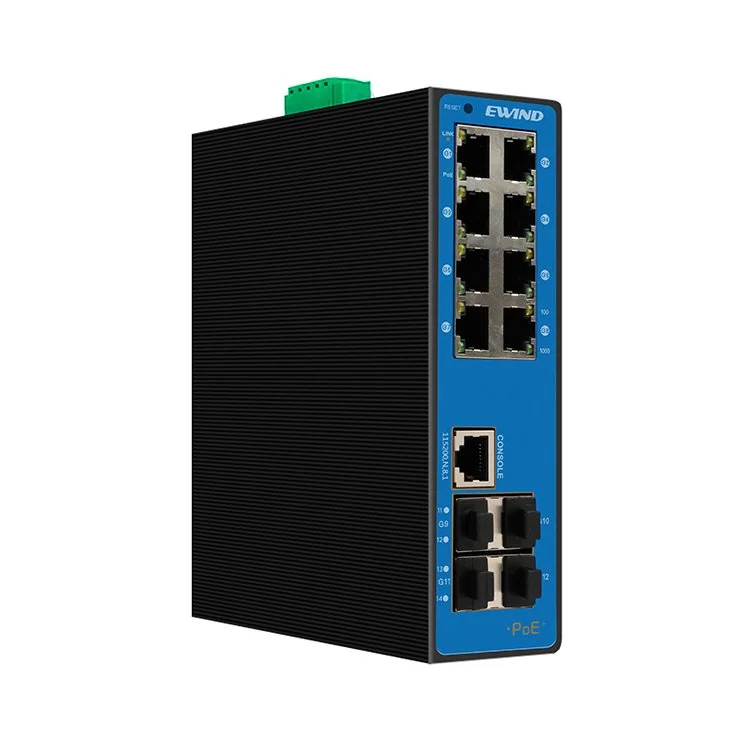

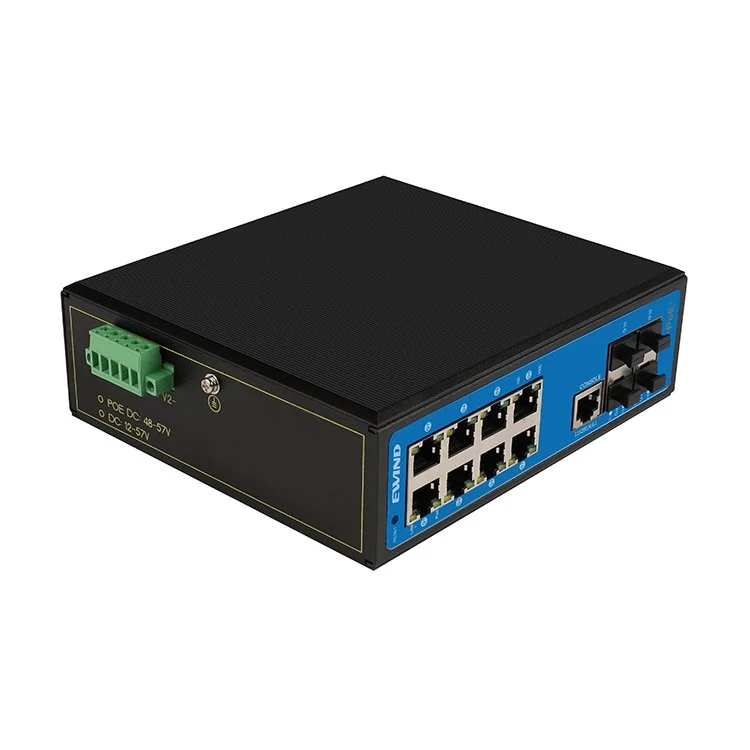

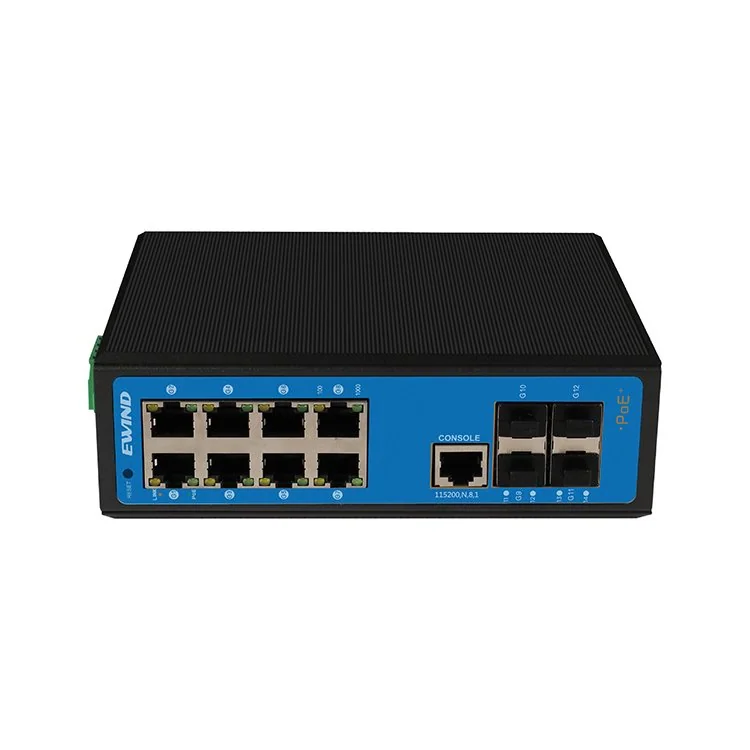

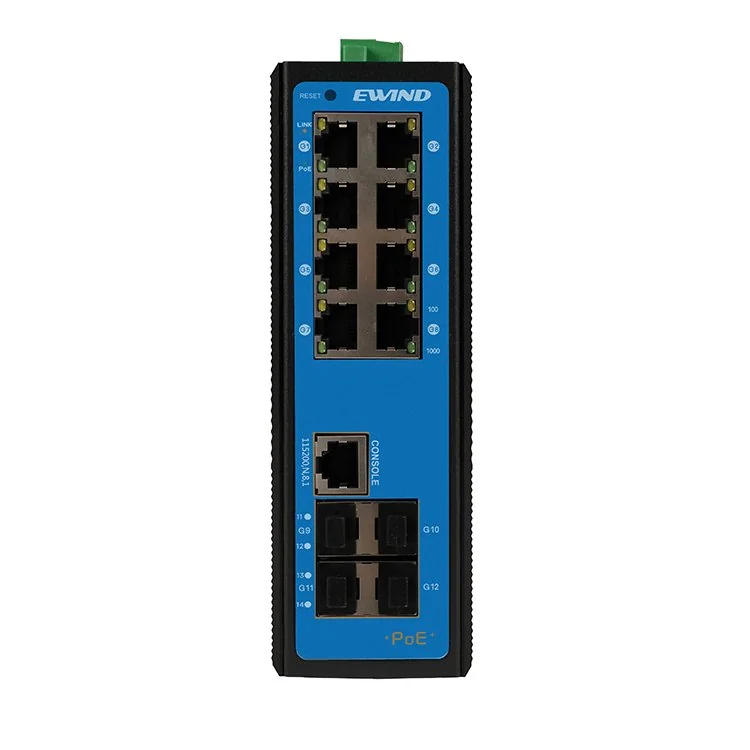

Model: EW-PIS5812M-8GE

8-Port Gigabit Managed Industrial PoE Switch with 4 10G SFP+ Uplinks

8 × Gigabit PoE ports, up to 30W each
4 × 10G SFP+ uplinks
L2+ management and ERPS ring support
Redundant DC input; −40 to +85°C operation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS5812M-8GE provides eight Gigabit IEEE 802.3af/at PoE ports and four 10G SFP+ uplinks for industrial access networks. L2+ management includes VLANs, software static routing, ERPS and scheduled PoE, with redundant 48–57V DC inputs and an IP40 DIN-rail enclosure.

10G fiber uplinks

Four SFP+ slots connect industrial access devices to higher-bandwidth fiber networks.

Scheduled PoE control

Configure port power limits, priorities, delayed startup and operating schedules.

Industrial enclosure

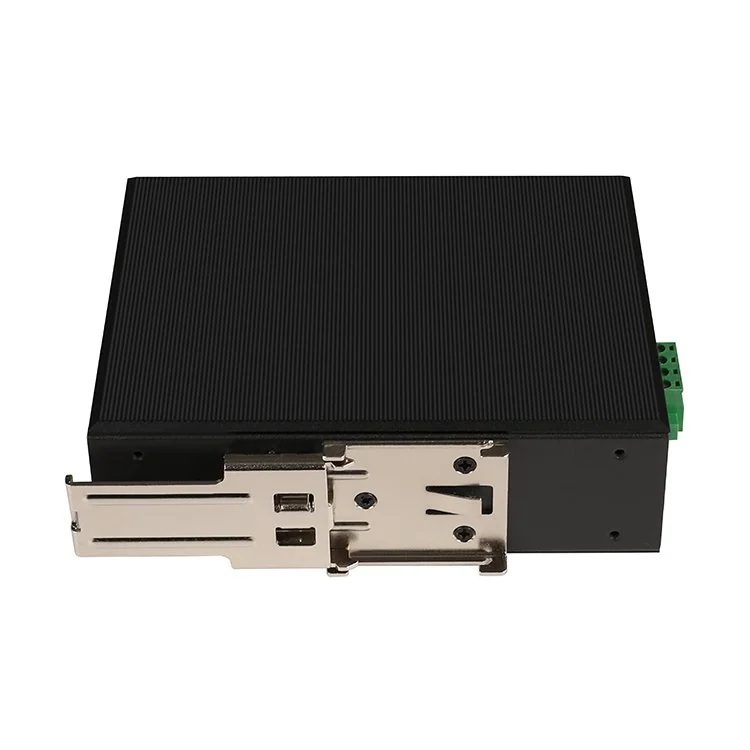

IP40 aluminum enclosure with DIN-rail mounting and redundant 48–57V DC power.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45
Uplinks	4 × 10G SFP+
Management	L2+; HTTPS Web, CLI and SNMP
Console	RS232; 115200 baud, 8N1
PoE standard / per-port limit	IEEE 802.3af/at / 30W

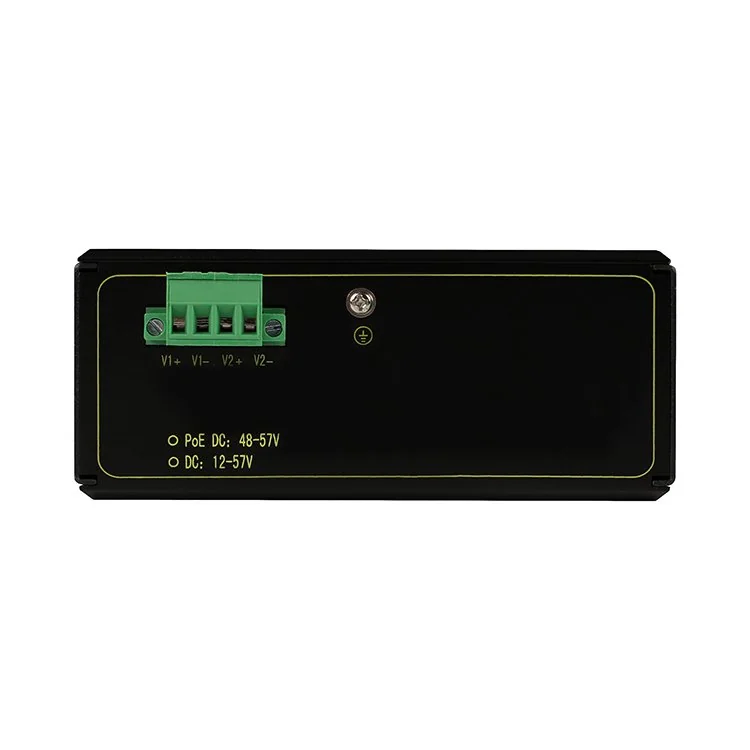

Power input	48–57V DC; redundant inputs; reverse-polarity protection
External power supply	Not included; optional 48V 120W or 240W
MAC / buffer / jumbo frame	32K entries / 16M / 10K
Dimensions	165 × 148 × 68mm
Operating temperature	−40 to +85°C
Enclosure / mounting	IP40 / DIN rail
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLAN and software routing

4K VLANs with port, protocol and MAC classification; Voice VLAN, QinQ and Access/Trunk/Hybrid modes. IPv4/IPv6 management and software-based static/default routing.

Redundancy and multicast

STP, RSTP, MSTP, G.8032 ERPS, LACP and static aggregation. IGMP snooping v1/v2/v3, MLD snooping v1/v2, multicast VLAN and bidirectional port mirroring.

QoS and security

Eight queues per port with 802.1p/DSCP mapping and SP/WRR scheduling. L2–L4 ACLs, 802.1X, RADIUS, port isolation, IP source protection and IP/MAC/VLAN/port binding.

PoE management

Total and per-port power limits, af/at control, output priority, status display, startup delay and scheduling. PoE pairs: 1/2 positive, 3/6 negative. Size the external supply for the endpoint load and switch consumption.

Management and diagnostics

HTTPS Web, SSH CLI, SNMP v1/v2c/v3, DHCP client/server/relay/snooping, NTP, syslog and LLDP. Cable diagnostics, CPU monitoring and hardware factory reset.

Environment and protection

Operating humidity: 5–90% RH. Storage: −40 to +125°C and 5–95% RH, non-condensing. ESD ±8kV contact / ±15kV air; surge power ±4kV common mode / ±2kV differential mode, data ±4kV. Net/gross weight <1.1kg / <1.5kg.
