240W output
48VDC at up to 5A for industrial network equipment.
Model: EW-DR240W-48

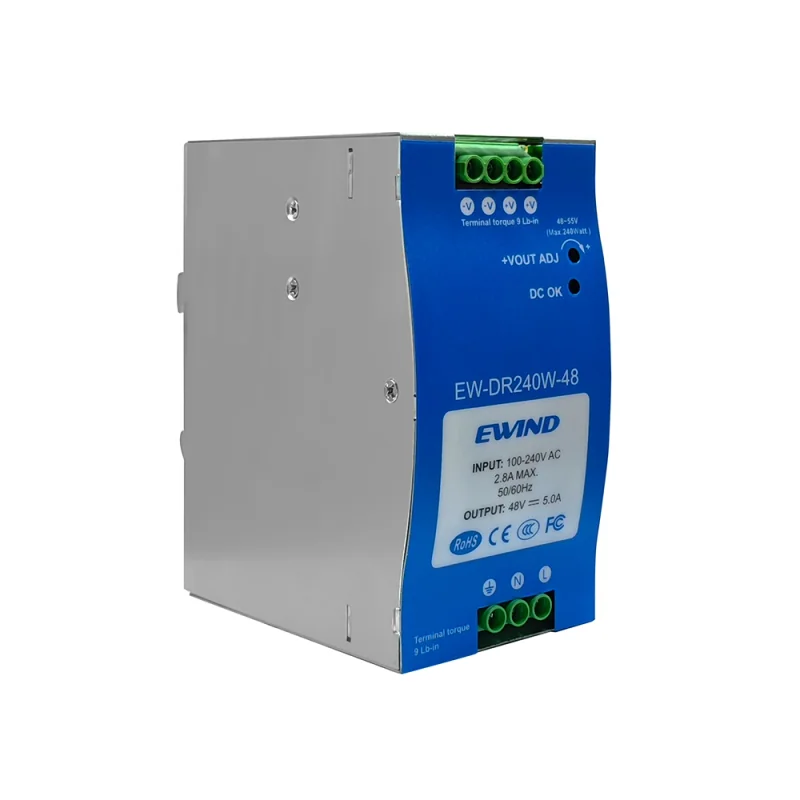

240W 48V DIN-Rail Industrial Power Supply
- 48VDC, up to 5A and 240W rated output
- 100–240VAC nominal input; 47–63Hz
- Efficiency ≥89%; adjustable DC output
- DIN-rail mounting; 45 × 113 × 124mm body
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-DR240W-48 delivers 48VDC at up to 5A for industrial Ethernet and PoE equipment. The 240W DIN-rail supply combines adjustable output, a wide input range and a ventilated metal enclosure for control cabinets.
Efficient conversion
At least 89% efficiency in the specification table.
Output protection
Short-circuit, overload, over-voltage and over-current protection.
DIN-rail format
A 45mm-wide metal enclosure for cabinet mounting.
| Specification | Details |
|---|---|
| Rated output | 48VDC; 0–5A; 240W maximum |
| Nominal input | 100–240VAC, 47–63Hz |
| Input range | 85–264VAC or 120–370VDC in the technical table |
| Efficiency | ≥89% |
| Ripple / regulation | 150mVp-p ripple; ±0.5% line regulation; ±1% load regulation |
| Input current | <4.40A at 115VAC; <2.20A at 230VAC |
| Dimensions / weight | 45 × 113 × 124mm; 1.2kg |
| Operating conditions | −30°C to +85°C; 20%–95% RH, non-condensing; refer to the derating curve |
| Mounting / warranty | DIN rail; 5-year warranty |

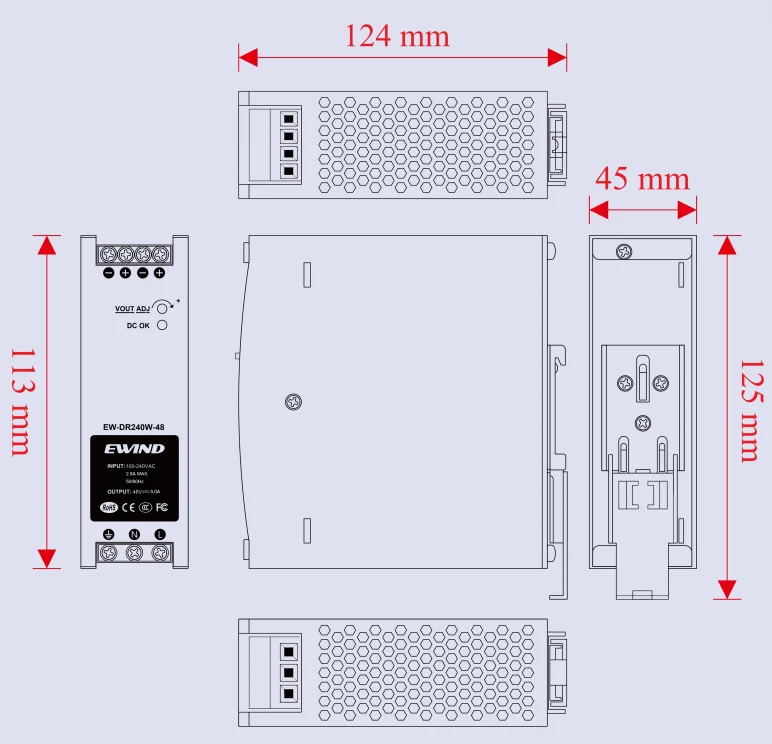

Dimensions
EW-DR240W-48 Resources
PDF · Specifications · Installation · Ordering
