48V industrial power
A nominal 48V, 10A output supports compatible networking loads within the 480W rating.
Model: EW-PI480W-48

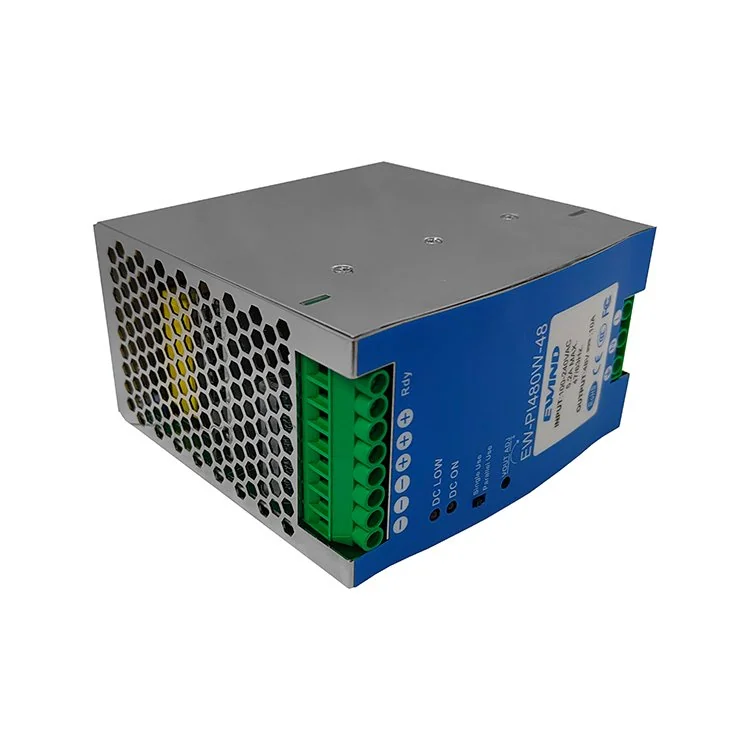

480W 48V DIN-Rail Industrial Power Supply
- 480W rated output · 48V DC / up to 10A
- 90–264V AC or 120–370V DC input
- DIN-rail mounting · 5-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PI480W-48 provides a nominal 48V DC output at up to 10A for compatible industrial switches and automation equipment. The DIN-rail supply accepts AC or DC input and includes overload, over-voltage and short-circuit protection, with output derating at high temperatures and low input voltage.
Built-in protection
Overload, over-voltage and short-circuit protection help protect the supply and connected equipment.

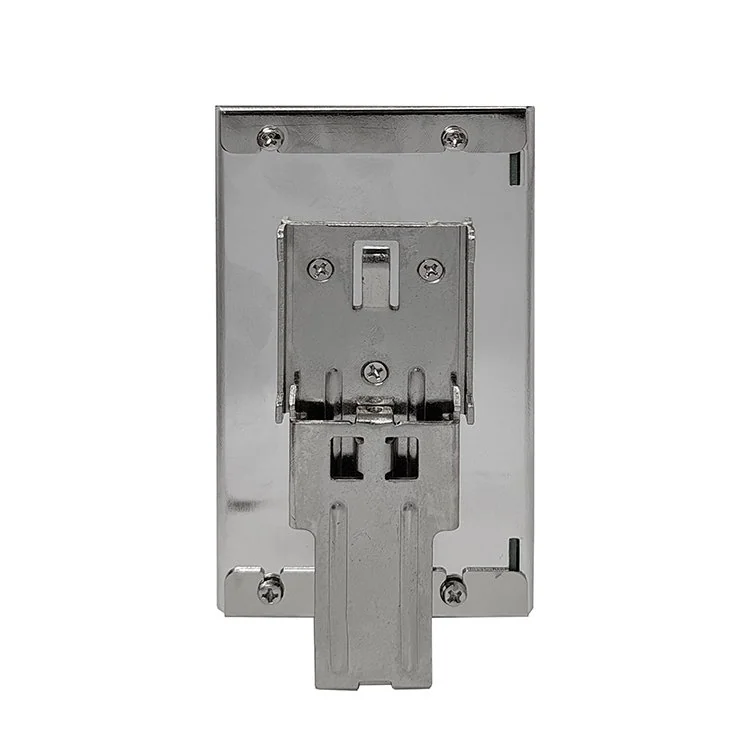

Cabinet installation

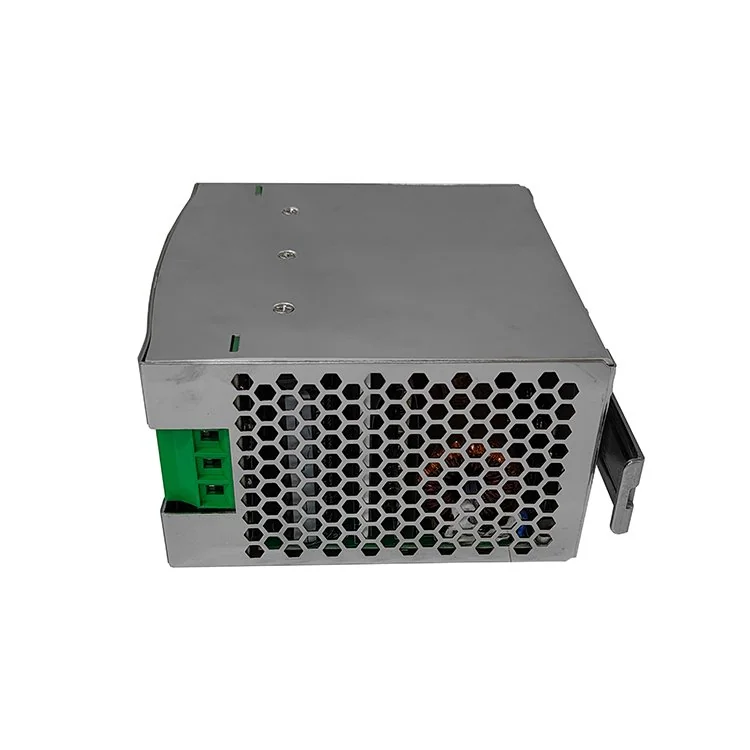

The metal DIN-rail enclosure measures 70 × 124 × 125 mm and weighs approximately 1.35kg.
| Specification | Details |
|---|---|
| Model | EW-PI480W-48 |
| Rated output | 480W maximum |
| Nominal DC output | 48V; up to 10A |
| Input range | 90–264V AC or 120–370V DC |
| Input frequency | 47–63Hz |
| Efficiency | ≥91% at 115V AC; ≥92% at 230V AC |
| Line / load regulation | ±0.5% / ±1% |
| Load derating | 100% to +40°C; 50% at +70°C, per datasheet curve |
| Dimensions | 70 × 124 × 125 mm |
| Weight | 1.35kg |
| Installation | DIN rail |
| Warranty | 5 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PI480W-48 DIN-rail power supply | 1 | SET |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
