48V industrial power
A nominal 48V, 2.5A output supplies up to 120W within the rated operating conditions.

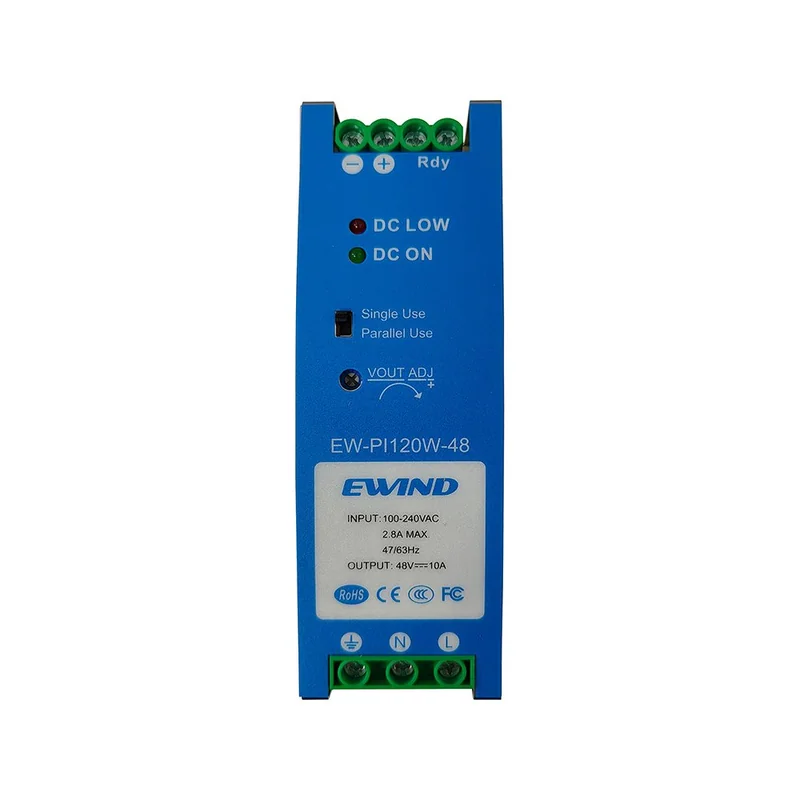

Model: EW-PI120W-48

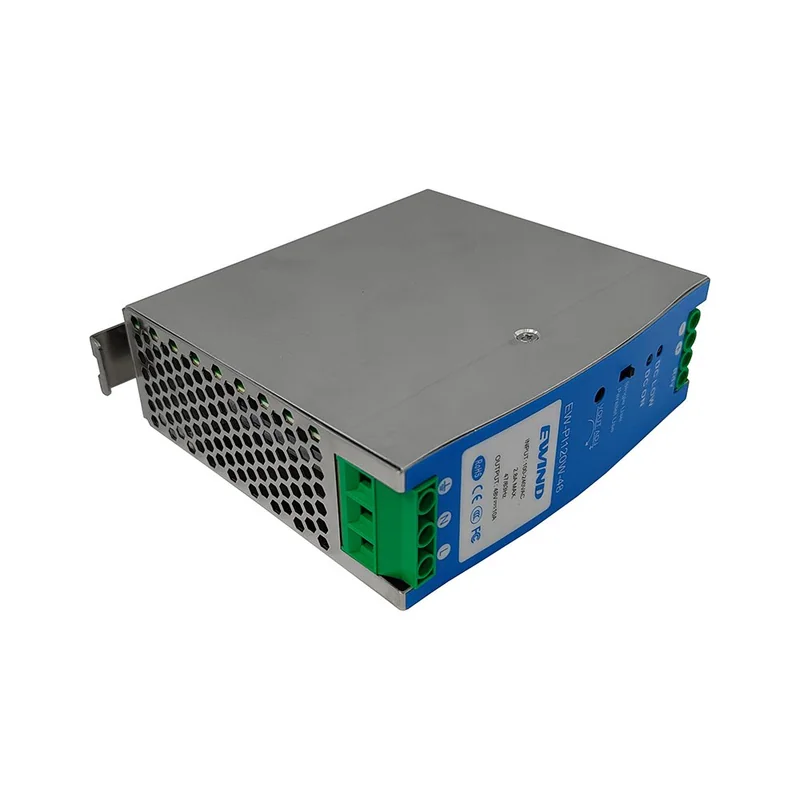

120W 48V DIN-Rail Industrial Power Supply
- 120W maximum; 48V DC, 2.5A
- DIN-rail metal enclosure
- 90–264V AC or 120–370V DC input
- Adjustable output with overload protection
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PI120W-48 supplies 48V DC at up to 2.5A for compatible industrial networking equipment. The DIN-rail supply features an adjustable output, AC or DC input and protection against overloads and short circuits. Available output power follows the temperature and input-voltage derating curves.

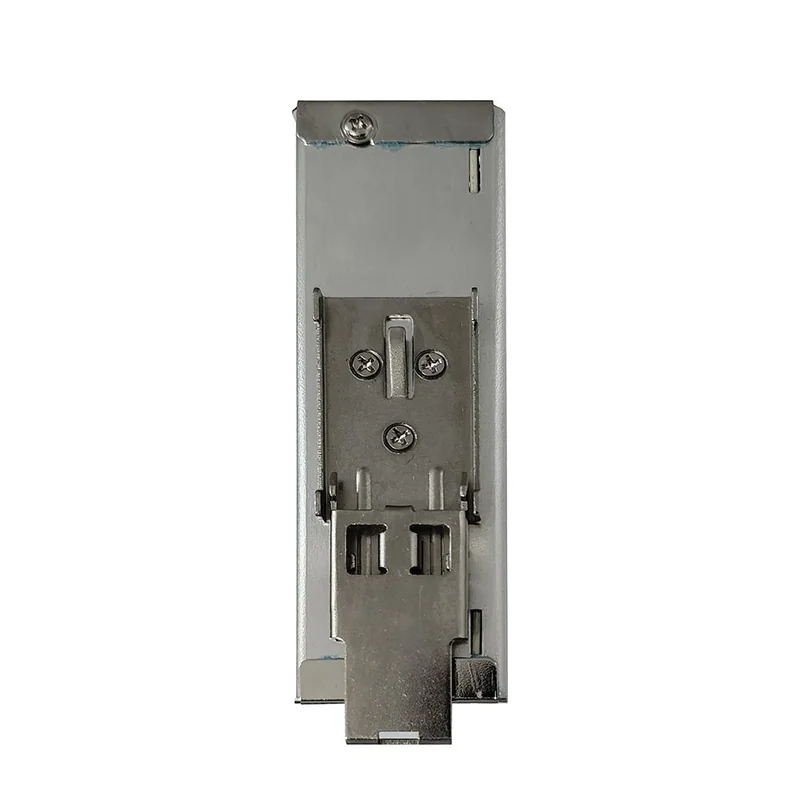

DIN-rail installation
A 40 × 114 × 124mm metal housing fits industrial control and network cabinets.
Protected output
Short-circuit, overload, overvoltage and thermal protection are specified for the series.
| Specification | Details |
|---|---|
| Nominal DC output | 48V; 0–2.5A |
| Maximum rated power | 120W; subject to derating |
| AC input | 90–264V; 47–63Hz |
| DC input | 120–370V |
| Efficiency | ≥90% at 115V AC; ≥91% at 230V AC |
| Line / load regulation | ±0.5% / ±1% |
| Output startup | <2 seconds at nominal input and full load |
| Full-load temperature range | −30 to +40°C, per derating curve |
| Dimensions | 40 × 114 × 124mm |
| Weight / mounting | 0.6kg / DIN rail |
| Warranty | 5 years, per product page |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PI120W-48 120W DIN-rail power supply | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
