Model: EW-IS1805

5-Port Gigabit Industrial Unmanaged Ethernet Fiber Switch

4 × 10/100/1000Base-T copper ports and 1 × 100/1000Base-X SFP/SC fiber slot
12Gbps switching capacity with 7.44Mpps full-wire-speed forwarding
Redundant dual DC power input through six-pin industrial Phoenix terminals
IP40 enclosure with desktop or 35mm DIN-rail installation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS1805 is a 5-port industrial unmanaged switch with four Gigabit copper ports, a Gigabit SFP or SC fiber uplink and redundant 12–57V DC power for reliable fiber-connected industrial networks.

Four Gigabit ports

Four auto-sensing 10/100/1000Base-T ports support full or half duplex and MDI/MDI-X.

Fiber uplink

A 100/1000Base-X SFP or SC slot extends the industrial network over fiber.

Industrial protection

IP40 construction, 6kV lightning protection and vibration and shock resistance support harsh sites.

Redundant DC input

Dual 12–57VDC Phoenix-terminal inputs provide anti-reverse industrial power redundancy.

Product technical specifications
Specification	Details
Interfaces	4 × 10/100/1000Base-T data ports and 1 × 100/1000Base-X SFP/SC fiber slot
Network standards	IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z and 802.3x
Switching performance	Store-and-forward at full wire speed; 12Gbps switching capacity and 7.44Mpps forwarding rate
Memory	1K MAC table, 1M buffer memory and 10K jumbo frames
Fiber reach	Multimode 850nm up to 550m; single-mode 1310nm up to 40km or 1550nm up to 120km
Power input	Redundant 12–57VDC through six-pin industrial Phoenix terminals with anti-reverse protection
Power consumption	Standby under 2W; full load under 10W

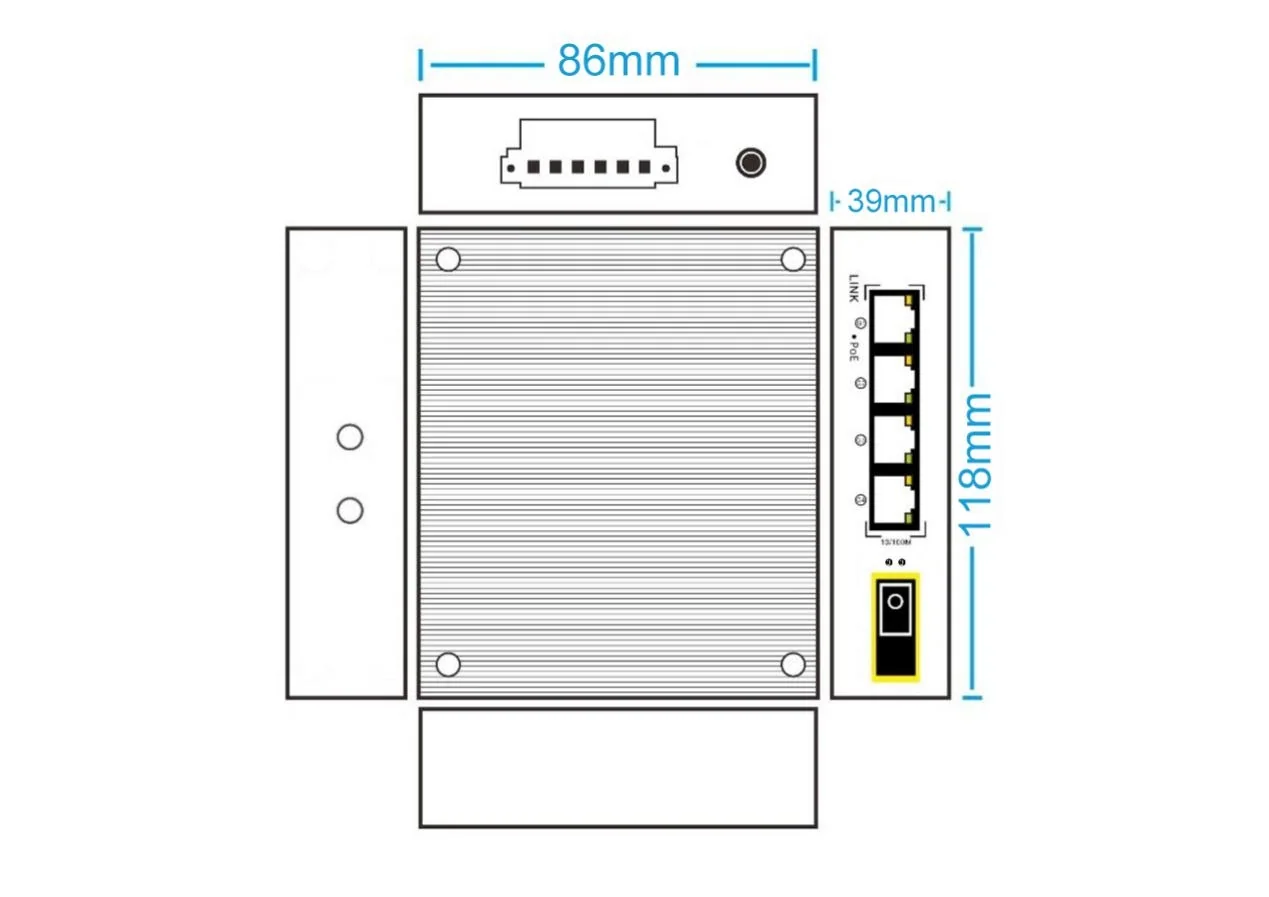

Dimensions and weight	118 × 86 × 39mm; net weight under 0.7kg and gross weight under 1.0kg
Installation	Desktop or 35mm DIN rail
Environment	Operating −40℃ to +80℃; storage −40℃ to +125℃; operating humidity 5%–90% RH, non-condensing
Protection	IP40, 6kV lightning protection, industrial ESD/EFT/surge and anti-vibration/anti-shock design
Warranty	5 years, lifelong maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Copper and fiber links

The four copper ports auto-sense 10/100/1000Base-T and support full or half duplex with MDI/MDI-X adaptation. The fiber slot accepts optional single-mode or multimode, single-fiber or dual-fiber LC modules.

Industrial power

Two sets of V+ and V− inputs on a six-pin Phoenix terminal provide redundant 12–57VDC power with anti-reverse protection.

Transmission planning

Cat3/4/5 UTP reaches 100m at 10Mbps, Cat5 or later reaches 100m at 100Mbps and Cat5e or later reaches 100m at Gigabit. Fiber reaches up to 120km with the appropriate optic.

Reliability and protection

Store-and-forward switching, 100,000-hour MTBF, IP40 protection, 6kV lightning protection and IEC industrial immunity support continuous operation.
