Single camera node
Place PoE access beside one remote network camera or endpoint.
Model: EW-PIS1802-1GE
Single-Port Industrial Gigabit PoE Switch with SFP Uplink
- 1 × Gigabit PoE port; IEEE 802.3af/at; up to 30W
- 1 × 100/1000Base-X SFP uplink
- Redundant 48–57VDC input with reverse-polarity protection

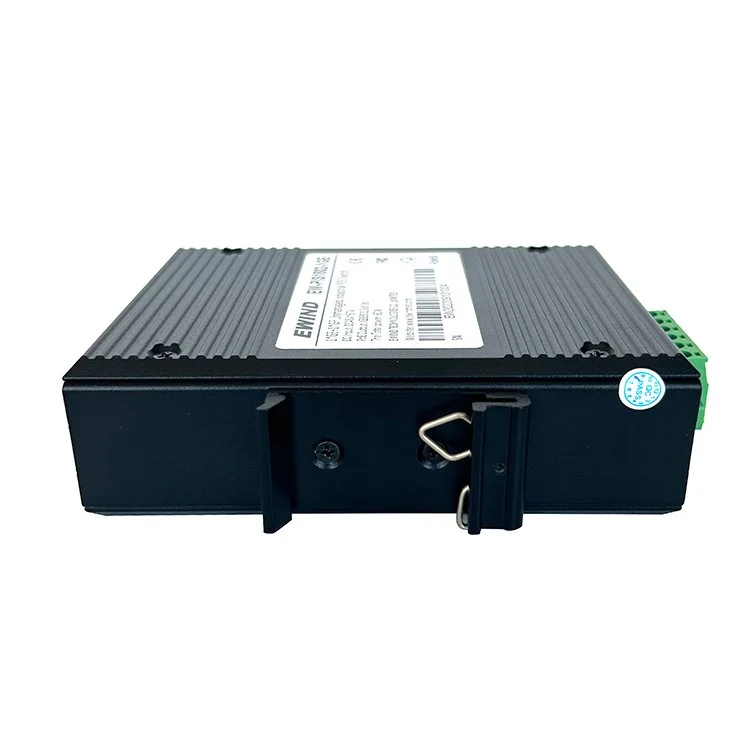

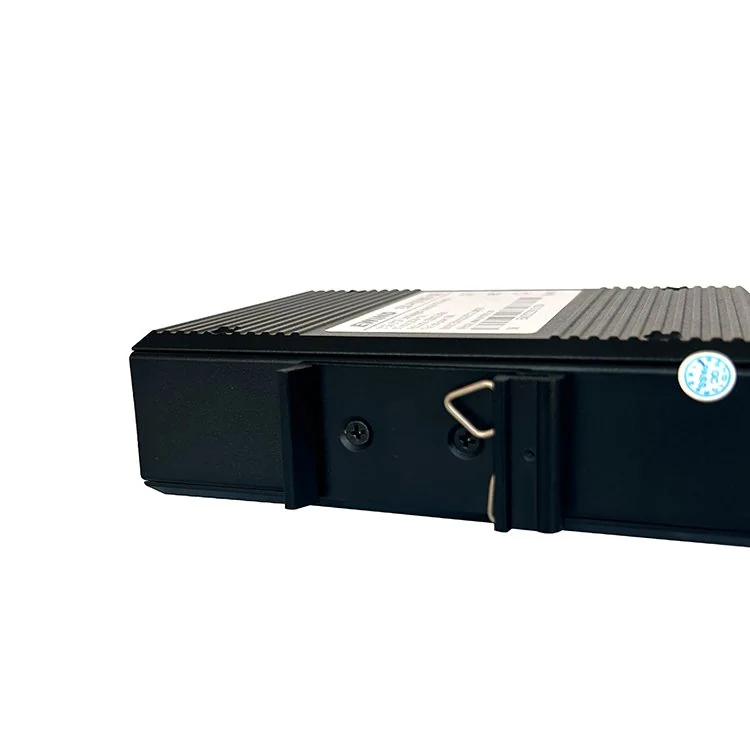

- 35mm DIN rail mounting; IP40 enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PIS1802-1GE connects one Gigabit PoE device to a fiber uplink in an industrial cabinet. Its IEEE 802.3af/at port provides up to 30W, while redundant 48–57VDC inputs, DIN rail mounting and a −40°C to +85°C operating range support remote surveillance connections.
Fiber uplink
Choose an SFP module for the fiber type and required link distance.
30W PoE+
Supply an IEEE 802.3at endpoint with an appropriately sized external supply.
Industrial enclosure
The 118 × 86 × 39mm housing supports desktop or DIN rail mounting.
| Specification | Details |
|---|---|

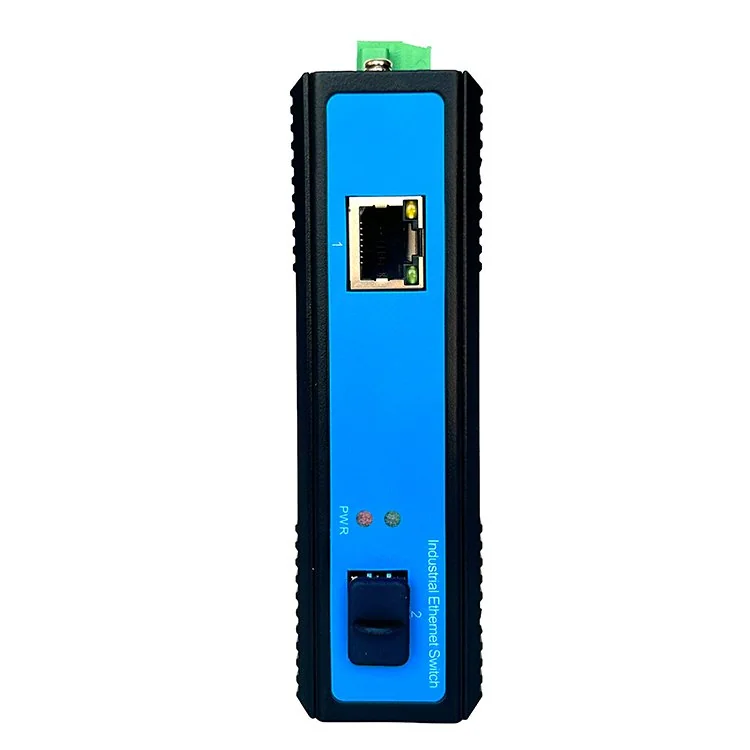

| Interfaces | 1 × 10/100/1000Mbps PoE RJ45; 1 × 100/1000Base-X SFP |
| PoE output | IEEE 802.3af/at; up to 30W |

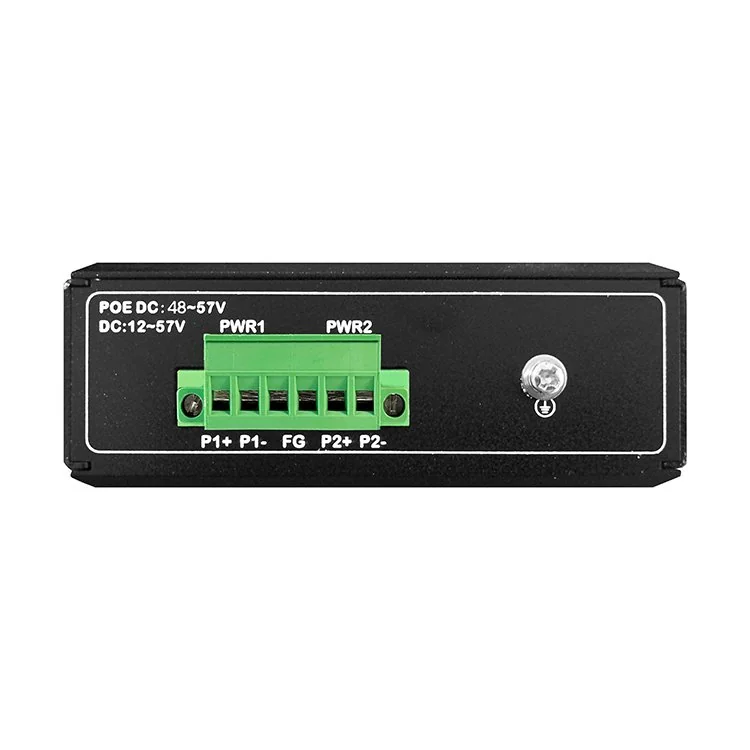

| Power input | Redundant 48–57VDC; 6-pin Phoenix terminal; reverse-polarity protection |
| External supply | 48V/24W or 48V/36W options; ordered separately |
| Switching performance | 4Gbps capacity; 2.98Mpps forwarding |
| Memory | 4K MAC entries; 1M buffer; 10K jumbo frames |
| Dimensions / weight | 118 × 86 × 39mm; net <0.3kg; gross <0.5kg |
| Operating environment | −40°C to +85°C; 5%–90% RH, non-condensing |
| Protection / mounting | IP40; 6kV lightning protection; desktop or 35mm DIN rail |
| Warranty | 5 years; lifetime maintenance |

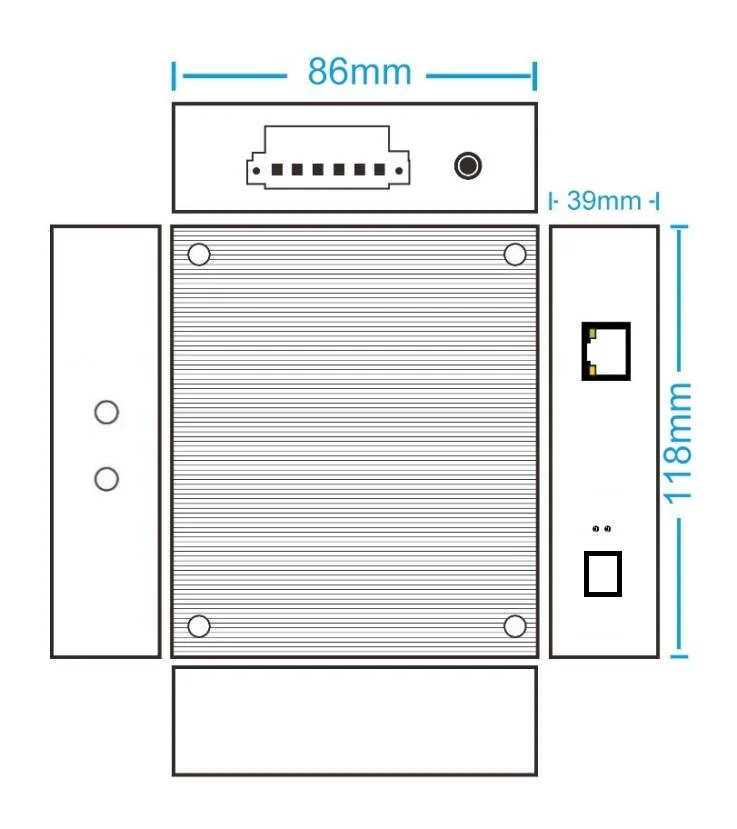

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PIS1802-1GE industrial Gigabit PoE fiber switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
